SQD NSYPLA1573G Floor standing poly

Manufacturer: Square-D / Schneider | Catalog # NSYPLA1573G | Cooper Electric Part # 1681104
$940.34 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

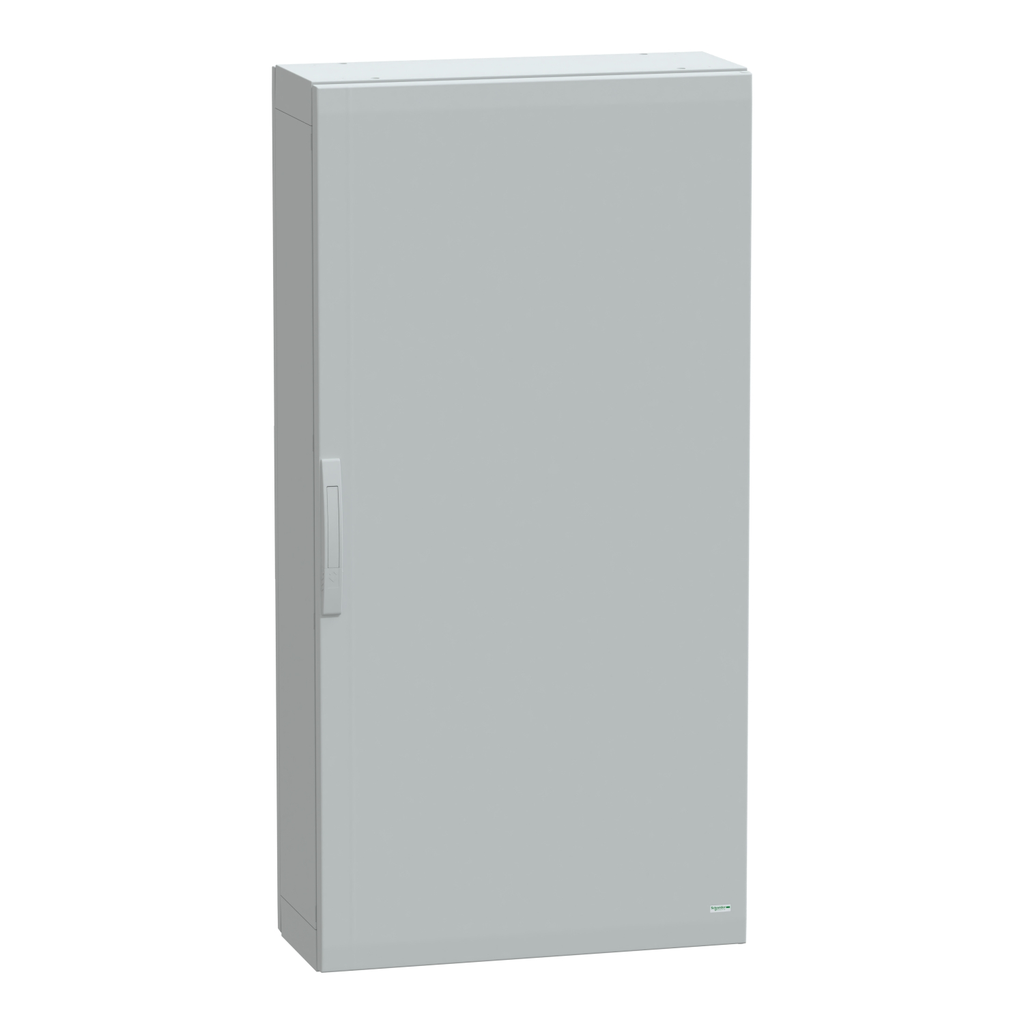

Thalassa PLA floor standing polyester enclosure. 1500x 750x 320 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 1 door. Accesible front and rear. Reversible 120. opening. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960.C fire resistance.

Technical Information

Body Type
Sealed Top And Bottom Part Assembled With Side Parts
Door Type
Solid Front
Lock Type
5 mm
Material
Fiberglass,Polyester
Number of Doors
1
Standard
IEC 62208,UL 508 A
Storage Temperature
-35-90 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480774792
Color
Gray RAL 7035)
GTiN
03606480774799
Product UPC
60648077479

Dimensions

Enclosure Depth
320 mm
Enclosure Height
1500 mm
Enclosure Wdth
750 mm
Height
1500 mm
Warranty Length
18 mth
Width
750 mm

Certifications and Compliance

Certifications
DNV Marine,UL/cUL Listed,Veritas
Country of Origin
Spain
Features
  • Sealed top and bottom construction with removable rear panel and door.
  • Versatile floor-standing enclosure for various indoor and outdoor settings.
  • Highly resistant to impacts, dust, and water for lasting durability.
  • Secured with a four-point lock and 5mm double-bar insert for added safety.
  • Provides fire resistance up to 960°C for optimal protection.
  • Class II electrical insulation prevents electric shocks and allows insulated solutions.
  • UL certified and operates efficiently in temperatures from -35°C to 90°C.
