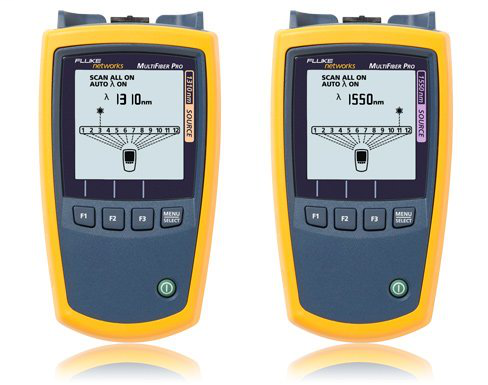

Product image for FLK MFTK1200 MF PRO BASEMPO PMLSTES
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

FLK MFTK1200 MF PRO BASEMPO PMLSTES

Manufacturer: Fluke Networks | Catalog # MFTK1200 | Cooper Electric Part # 1680131
$16,282.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Introducing the MultiFiber™ Pro Optical Power Meter and Fiber Test Kits. MultiFiber Pro Optical Power Meter and Source is the only fiber tester that can certify MPO fiber trunks without the use of fan-out  cords. This singlemode and multimode MPO fiber testing kit eliminates the complexity of polarity issues, and it makes cassettes easier to test in the field. Whether it is using 10 Gbps preterminated MPO fiber trunks or planning for next-generation 40/100 Gbps Ethernet performance, data centers are standardizing on an MPO connector solution. Typical data center fiber installation means time-consuming, manual and imprecise MPO validation. MultiFiber Pro Optical Power Meter and Source is 90 percent faster than single fiber cable certification because it measures power loss and validates polarity on 12 fibers in a single connector— reducing test time from weeks to days.

Technical Information

Operating Temperature
-10 To 50 degrees C
Storage Temperature
-20 To 50 degrees C

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
754082092742
GTiN
00754082092742
Product UPC
75408209274
Weight
10.9 oz
Features
  • Automatic scanning and testing of all fibers in MPO connectors with Scan All
  • Support for both Multimode and Singlemode MPO fiber trunks
  • Eliminates the need for fan-out cords when testing MPO fiber trunks
  • Easy to interpret test results with minimal navigation
  • The user interface displays all 12 fibers
  • Automatic 8, 10 and 12 fiber measurements
  • Troubleshoot MPO fiber links and drill down to single fiber test results
  • Mag Kit Strap Attachment - Strong rare earth magnet attaches to metal surfaces in the testing environment, allowing the technician to work \"hands free\
Kits for Every Need
  • The FI-7000 is the ultimate inspection tool. It enables you to quickly inspect and certify fiber end-faces inside ports or patch cords. Its 2-second automated PASS/FAIL eliminates human subjectivity and enables anyone to become a fiber inspection expert.
  • Automated Pass/Fail acceptance testing of fiber end-faces
  • Large touchscreen for pinch and zoom
  • Graphical indication of problem areas due to contamination, pits, chips, and scratches
  • Certify to industry standards - IEC 61300-3-35
  • Eliminate human subjectivity from end-face measurements
  • Includes MPO tip for inspection probe and MPO cleaner
  • Cleaning is critical. Fluke Networks Quick Clean Cleaners instantly clean fiber optic bulkhead connectors and end-faces. Just push the tool tip to engage cleaning action and pull back on the wheel its that simple. The MPO Quick Clean Cleaner is bundled with the MultiFiber Pro kits to ensure that you have the best cleaning tool from the beginning.
On-board MPO Connector
  • Equipped with MPO connector on both the Optical Power Meter and Light Source, it eliminates the use of costly and complicated fan-out cords to test MPO fibers.
  • Uncovered ports can put cabling, equipment and testers at risk for contamination and affect performance. Ensuring a covered connection on your tester can protect it from dirt and dust. MultiFiber Pro makes it easy by shuttering the MPO connector giving you greater test reliability and peace of mind.
Scan All\" Function
  • The Scan All function in the MultiFiber Pro Power Meter automatically scans and tests all 12 fibers in MPO connectors taking just 6 seconds to complete all loss or power measurements. This feature automates the certification of MPO terminated fibers and eliminates the time consuming and manual process of moving the fiber tester from fiber to fiber while using fan-out cords.
Simple User Interface
  • The MultiFiber Pro is so successful at simplifying the task of simultaneously representing polarity, power and loss results for 12 fibers that the user interface is patent pending. The power meter enables the users to easily comprehend the measurement results of 12 fibers simultaneously. The light source identifies each fiber within the MPO connector that is being tested. Any individual measurement that fails the test limit is plainly identified to allow root-cause analysis. This powerful yet straightforward test set enables everyone to become a fiber testing expert and increases efficiency in testing data center projects.
Built-in Polarity Verification
  • The simple purpose of any polarity scheme is to provide a continuous connection from the links transmitter to the links receiver. For array connectors, TIA-568-C. 0 defines three methods to accomplish this: Methods A, B and C. Deployment mistakes are common because these methods require a combination of patch cords with different polarity types. The polarity measurement of MultiFiber Pro allows the user to test individual patch cords, permanent links and channels for correct polarity.
Select an Individual Fiber
  • One of the main problems in the data center is the ability to drill down to a single fiber during testing and troubleshooting. MultiFiber Pro can troubleshoot a single fiber within an MPO trunk and provide a single fiber test result. This ability increases MPO connector verification and troubleshooting flexibility with more precise, per-fiber data and reporting.
Easy Reporting
  • The MultiFiber Pro Power Meter stores up to 3,000 test results (or the equivalent of 250 MPO cables) internally which can be uploaded to a PC using the LinkWare™ 7 Cable Test Management Software. LinkWare 7 allows you to manage test results, edit cable IDs, print professional reports and even export the data into spreadsheet formats.
