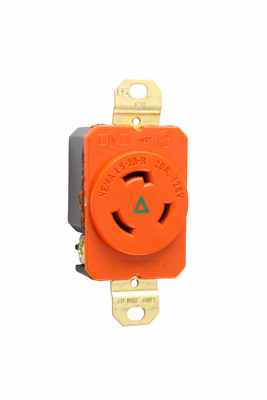

Pass & Seymour IGL520-R Turnlok Single Receptacle, 3wire, 20A 125V Isolated Ground

Manufacturer: Pass & Seymour / Legrand | Catalog # IGL520R | Cooper Electric Part # 16706
$27.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Turnlok Receptacle Single 3wire 20amp 125volt Isolated Ground

Technical Information

Amperage
20 Amp
Applications
Industrial
Conductor Size
18-1/0 AWG
Material
Thermoplastic
NEMA
L5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.3 in
Standard
UL
Type
Duplex, Receptacles
Voltage
125 Volt
Wire Size
0-18 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007252354
Color
Black
Finish
Matte
GTiN
00785007252354
Product UPC
78500725235
UNSPSC
39121403

Dimensions

Depth
1.19 Inch
Height
2.29 Inch
Width
1.61 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
  • 1 filtering capacitor for 7 to 1 average noise reduction.
  • Nominal let-through (suppressed) voltage in all 3 modes, 500V.
  • LED indicator light.
  • Overcurrent protection in all 3 modes.
  • Electronic components potted for electrical, mechanical and thermal stability.
  • Thermal protection in all 3 modes.
  • Back and side wire capability including ground terminal.
  • Operating temperature: -40: C to 85: C(-40: F to 185: F)
  • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Certifications
  • cULus Listed
