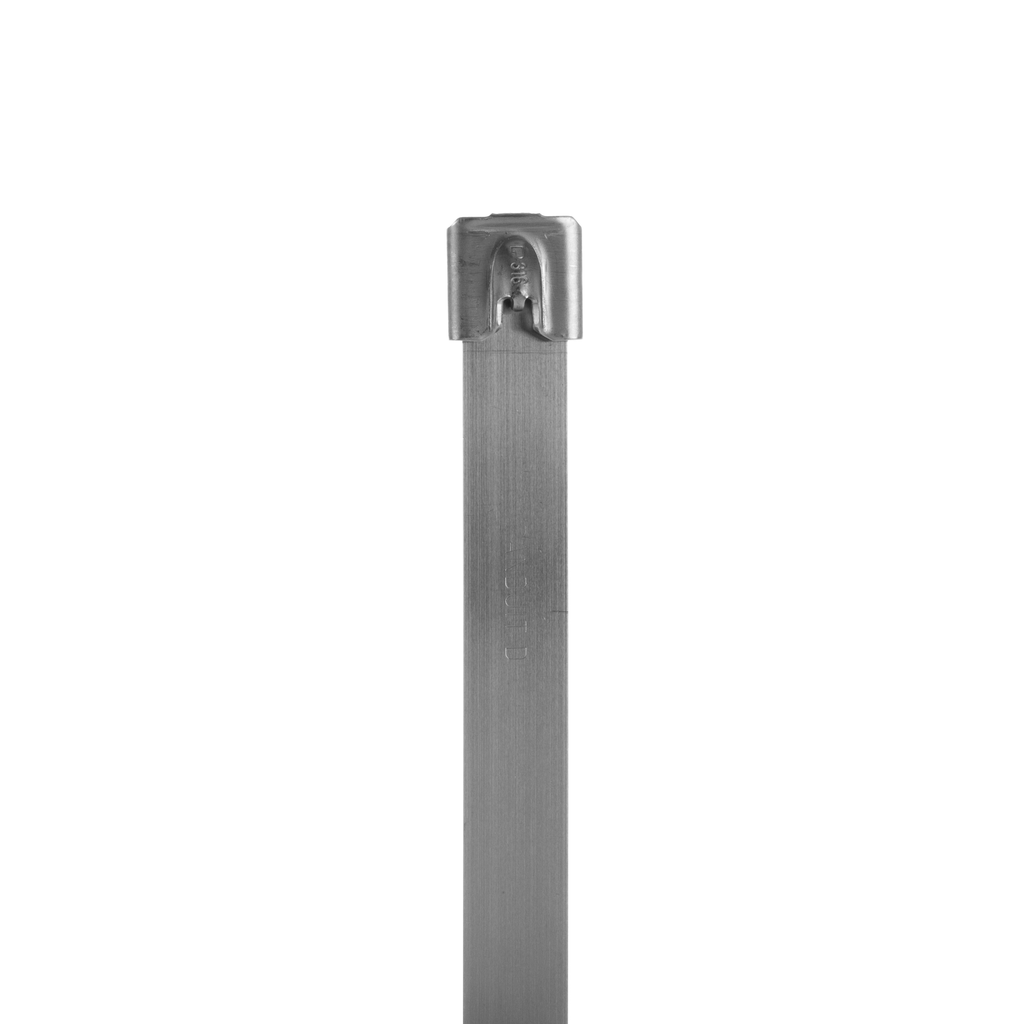

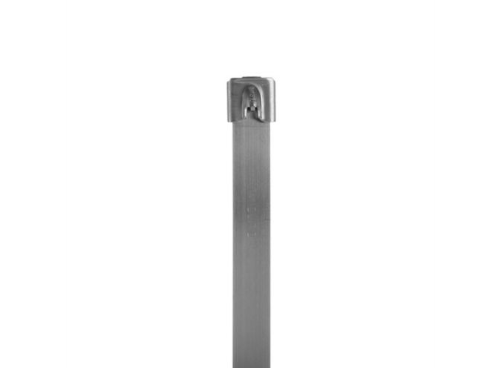

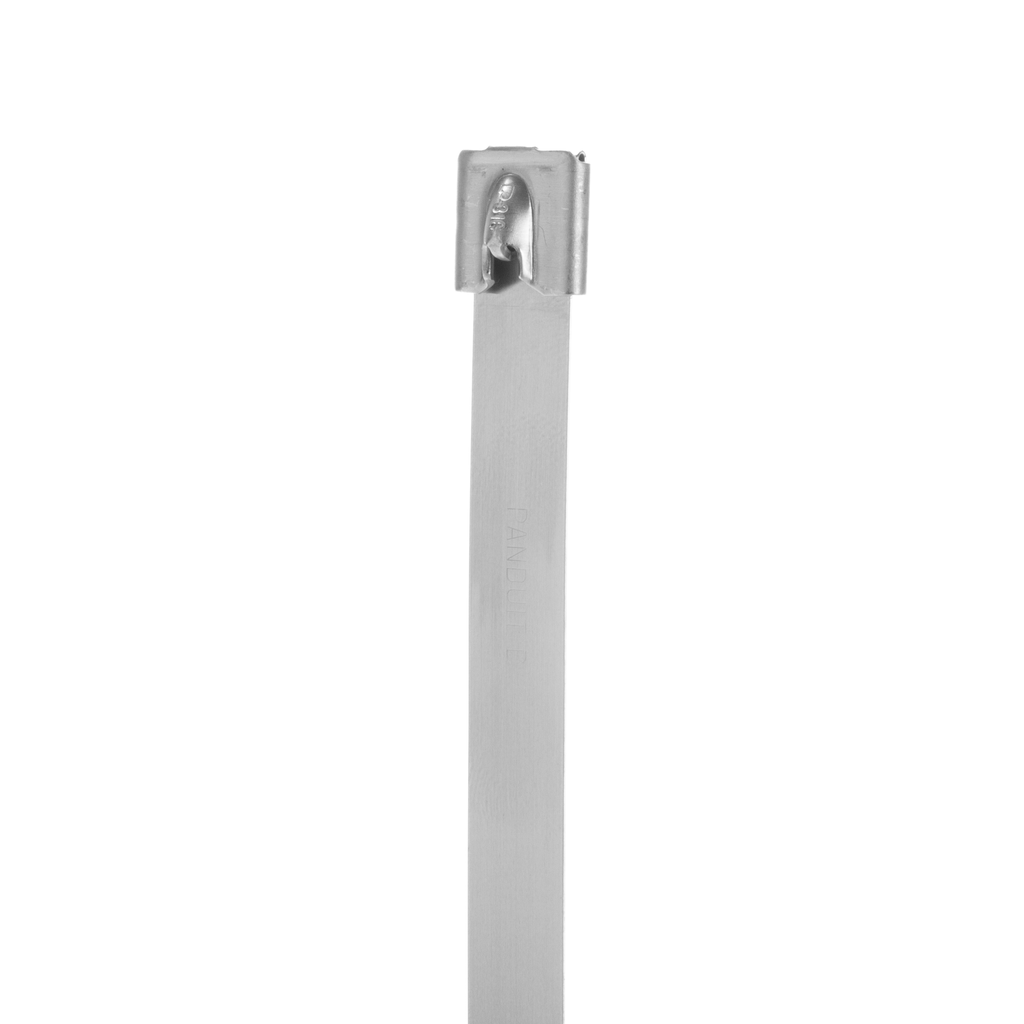

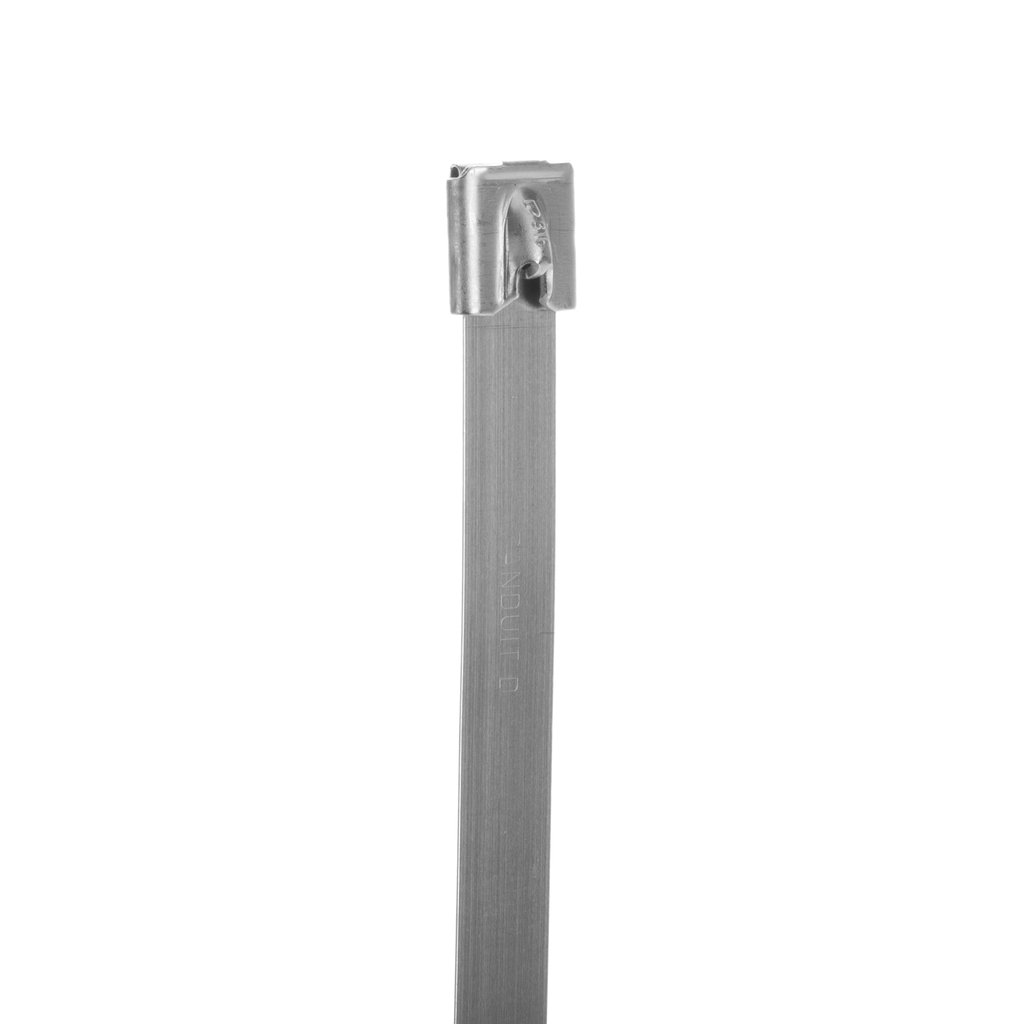

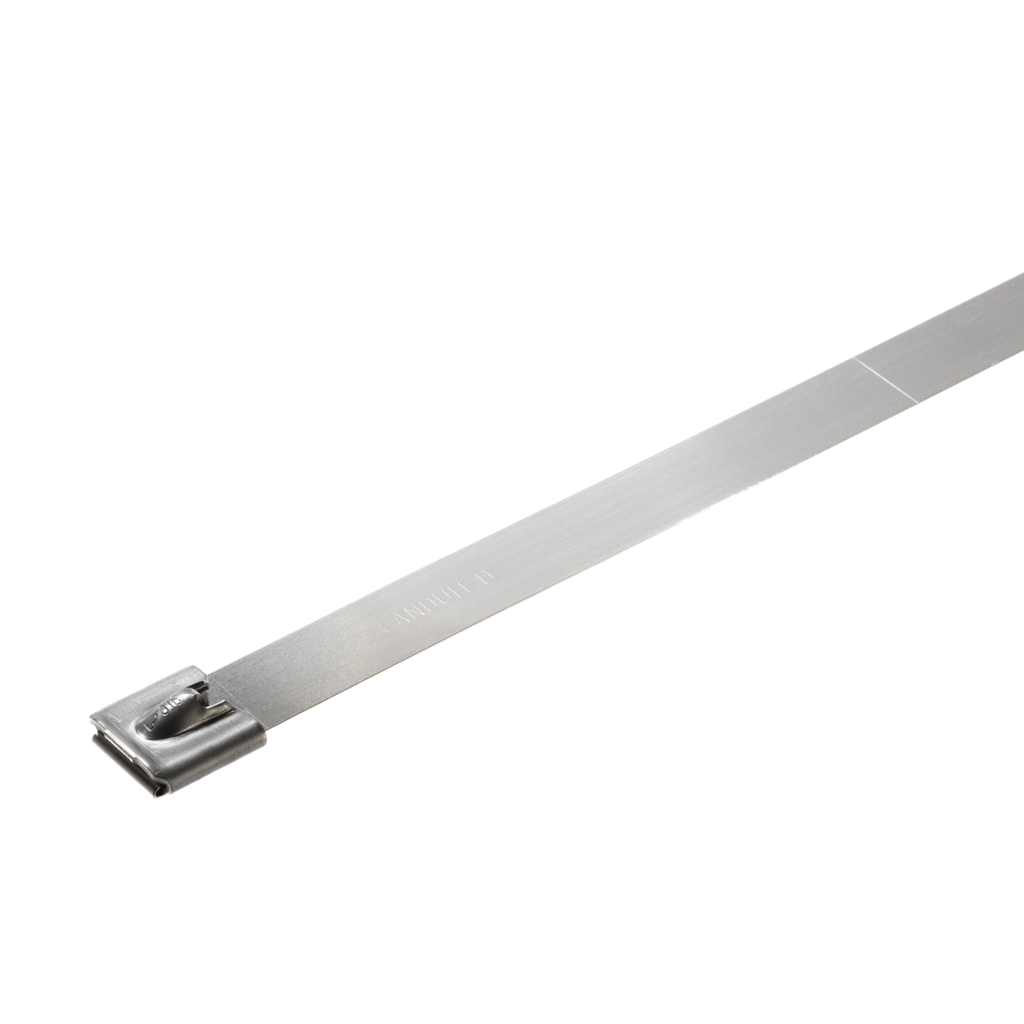

Product image for Panduit MLT4DSH-Q316 Cable Cleat, MLT Strap, 316 SS, Single/Trefoil/Quad
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit MLT4DSH-Q316 Cable Cleat, MLT Strap, 316 SS, Single/Trefoil/Quad

Manufacturer: Panduit Corp | Catalog # MLT4DSH-Q316 | Cooper Electric Part # 1666011
$12,031.97/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing
The MLT4DSH-Q316 self-locking cable cleat speeds up installation with a unique self-locking head that secures into any position along the band's length. The smooth and safe cable banding passes through the head twice, providing additional strength in short circuit applications. The variable design is compatible with quad, trefoil, and multicore cables and certified to IEC61914:2015, tested up to 75.1kA peak fault current. Features 316 AISI SS, 5340N tensile strength, 102mm bundle capacity.

Technical Information

Applications
Corrosive Environment
Body Thickness
0.015 in
Body Width
0.63 in
Bundle Diameter
102 mm
Material
Stainless Steel
Max Operating Temperature
1000 degrees F
Min Operating Temperature
-60 degrees C
Tensile Strength
5340 lb
Type
Standard Cross Section, Internal Toothing, Locking

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Steel

General Product Info

12-Digit UPC
074983593170
Color
Natural
Environment
Harsh,Indoor,Outdoor
GTiN
00074983593170
Product UPC
07498359317

Dimensions

Length
29-1/2 Inch
Overall Length
749 mm
Thickness
NA
Width
15.9 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
USA
Prop 65
  • No
