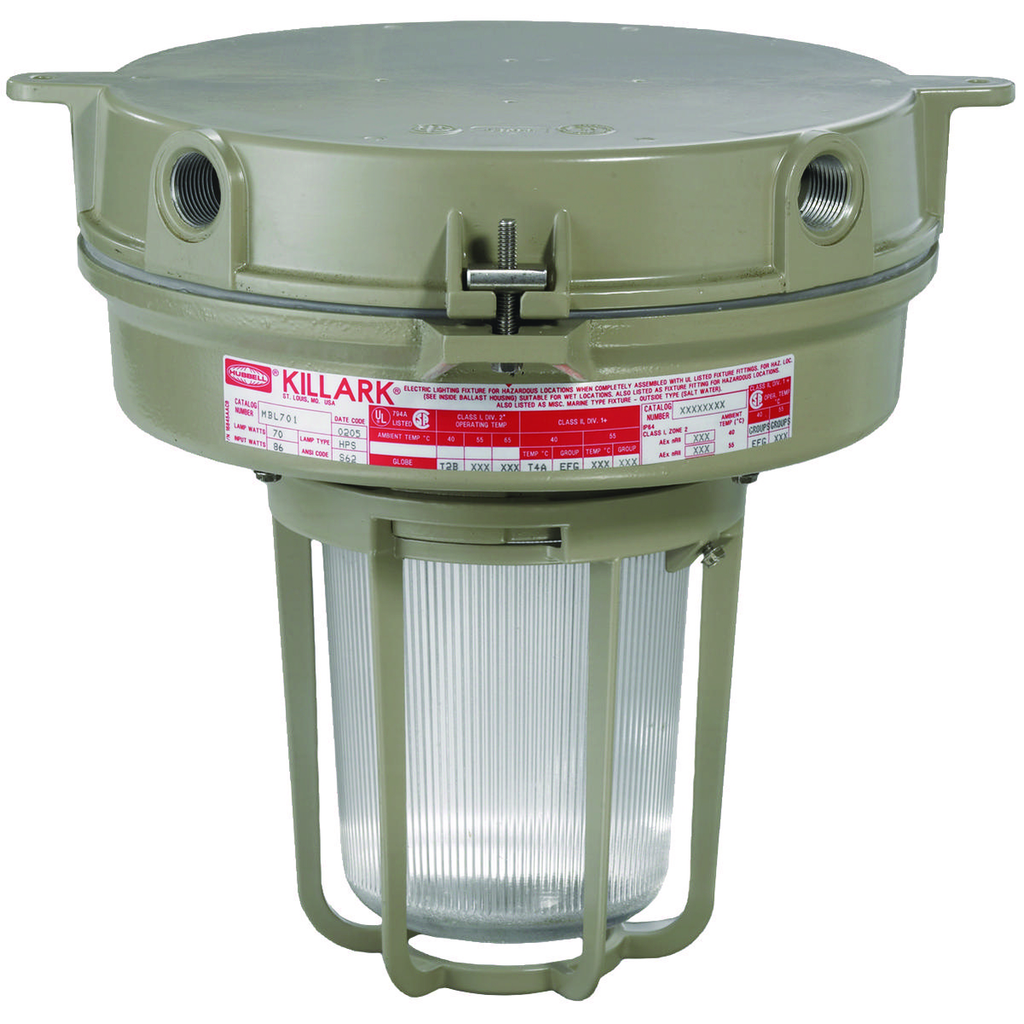

Product image for HCI VM1L4530X2GLG DISCONTINUED-VM1
Email

HCI VM1L4530X2GLG DISCONTINUED-VM1

Manufacturer: Killark | Catalog # VM1L4530X2GLG | Cooper Electric Part # 1664403
$3,158.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
VM1L Series LED Low Bay, Hazardous Rated 45 Watt, 120-277 VAC 5000K, 3960 Lumens, Ceiling Mount, Globe, and Guard

Technical Information

Current
100 Amp
Frequency
50/60 Hz
Hub Size
3/4 in
Lumens
10,000 Lumen
Mounting Type
Ceiling
Voltage
120-277 Volt
Wattage
45 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936084503
Finish
Powder Epoxy Paint
GTiN
00783936084503
Product UPC
78393608450

Certifications and Compliance

Country of Origin
USA
Features
  • Standard supplemental 6KV surge protection
  • Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
  • Reduced profile with Traditional Industrial Appearance and Suitability
  • Wide variety of optics including globes, globes with reflectors, all-glass refractors, and spin-top refractors
  • Swing-Barrel Nut patented tank mounting system
  • Optional Mounting arrangements including Pendant, Wall, Ceiling, Stanchion and others
  • VM1L LED Housings can be retrofitted to existing VM splice boxes to upgrade from HID sources
  • Energy Savings less than 55 Watts of Power
  • Long Life 50,000 - 55,000 maintenance free hours to 70% initial lumens
  • Crisp White Light for Excellent Color Rendering Chromaticity 5000°K (CCT) 70 CRI
  • Ambient suitability -40°C to 55°C
  • Instant on including after power interruption
  • World Voltage 120-277VAC 50/60Hz
  • Solderless LED Board Connections Vibration Resistant
  • Dual Driver Option (DDR) For additional energy savings, half of the fixture can be turned off
  • LM80-08 Measurement of lumen maintenance for LED light sources
  • LM79-08 Certified Absolute Photometry, including Chromaticity Color for Solid State Lighting
  • L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
  • The VM1L Series is a low profile low bay energy efficient LED. The design of the VM1L makes it suitable for harsh and hazardous environments using a cast copper-free aluminum housing and mount. Its low profile design allows it to fit in areas where there low ceiling heights will not allow for a larger fixture while still supplying high quality illumination.
