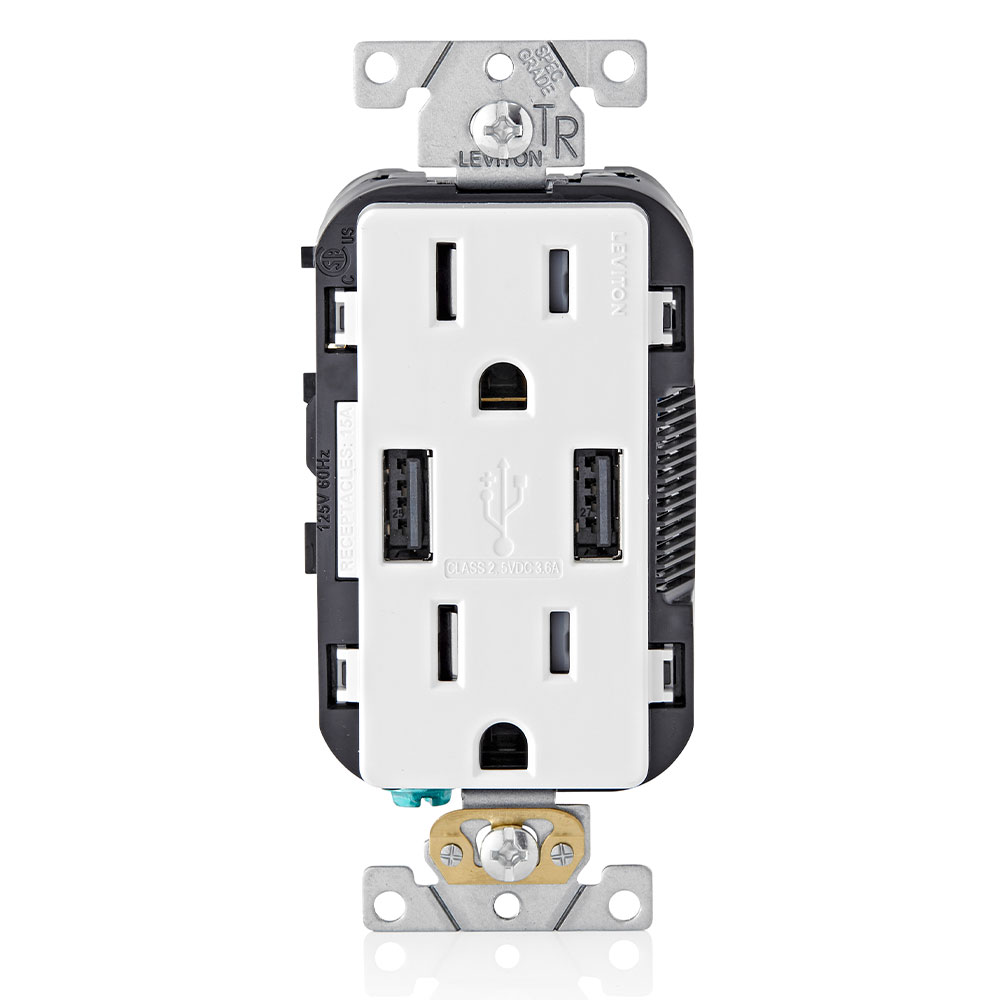

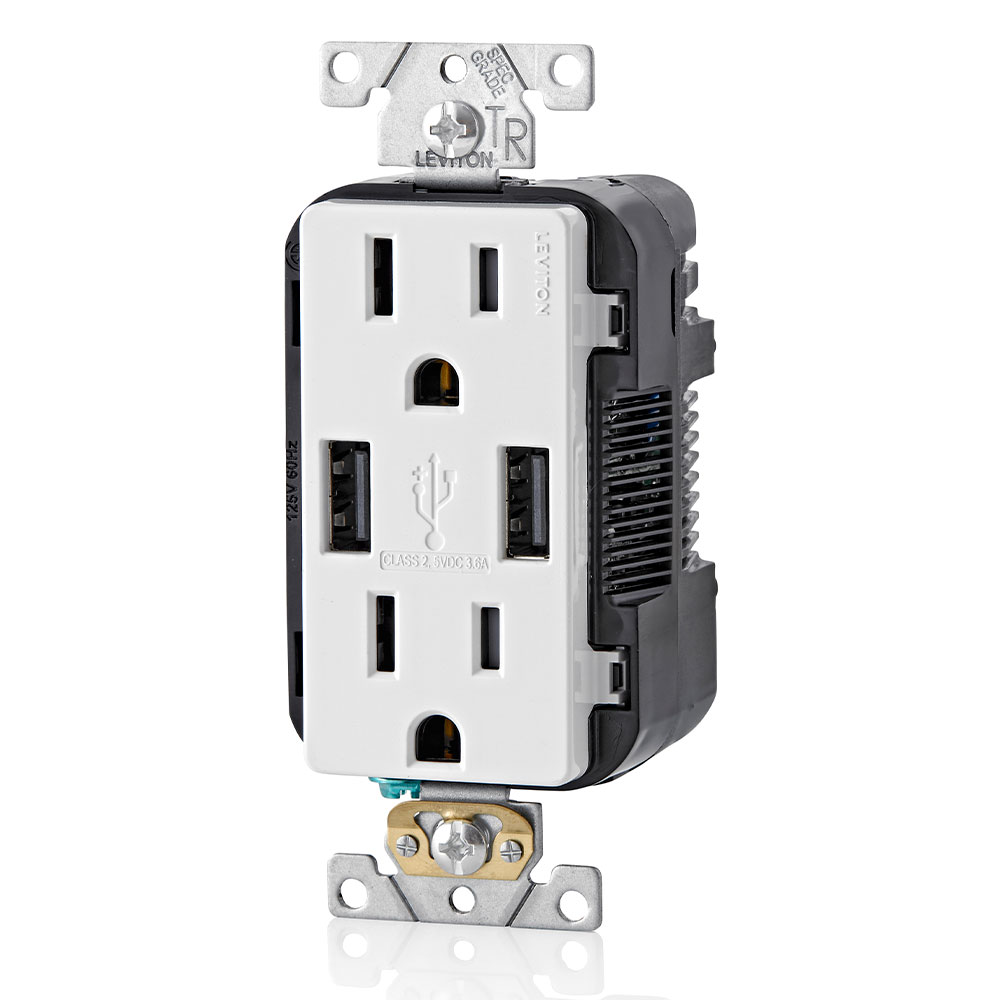

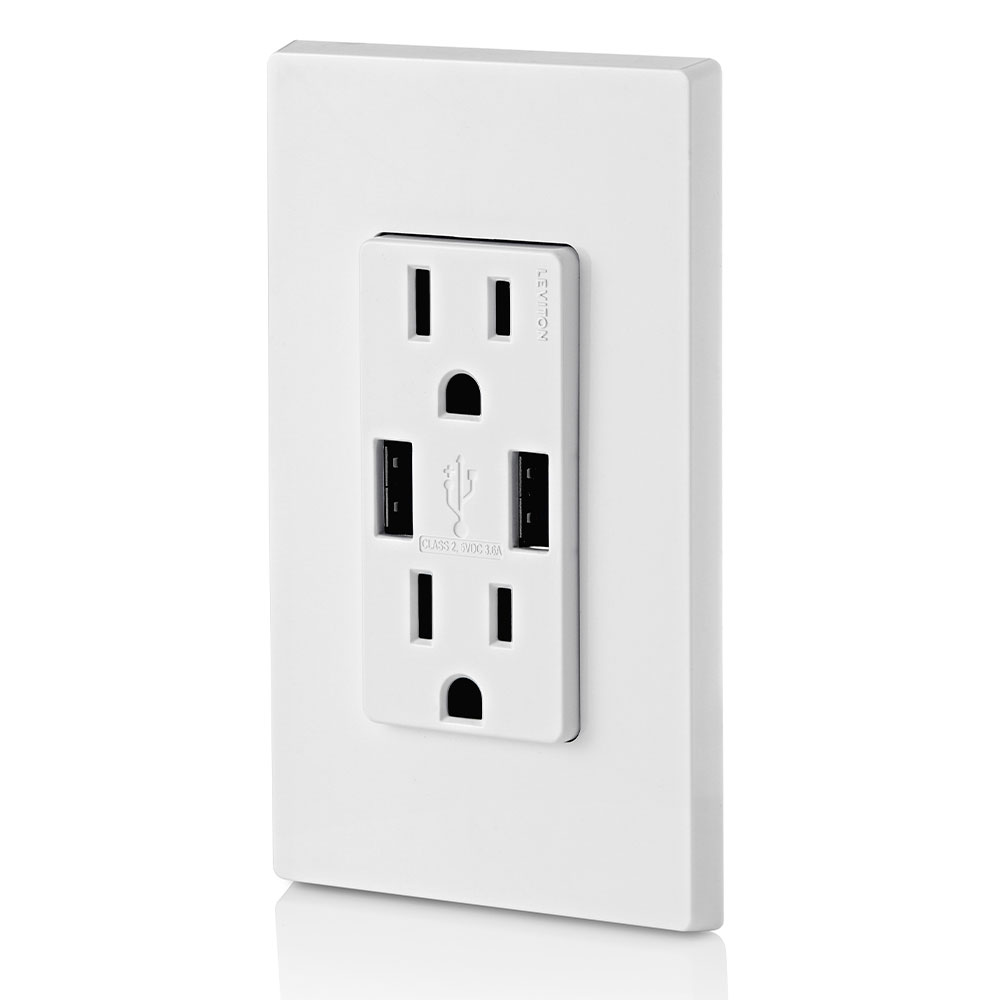

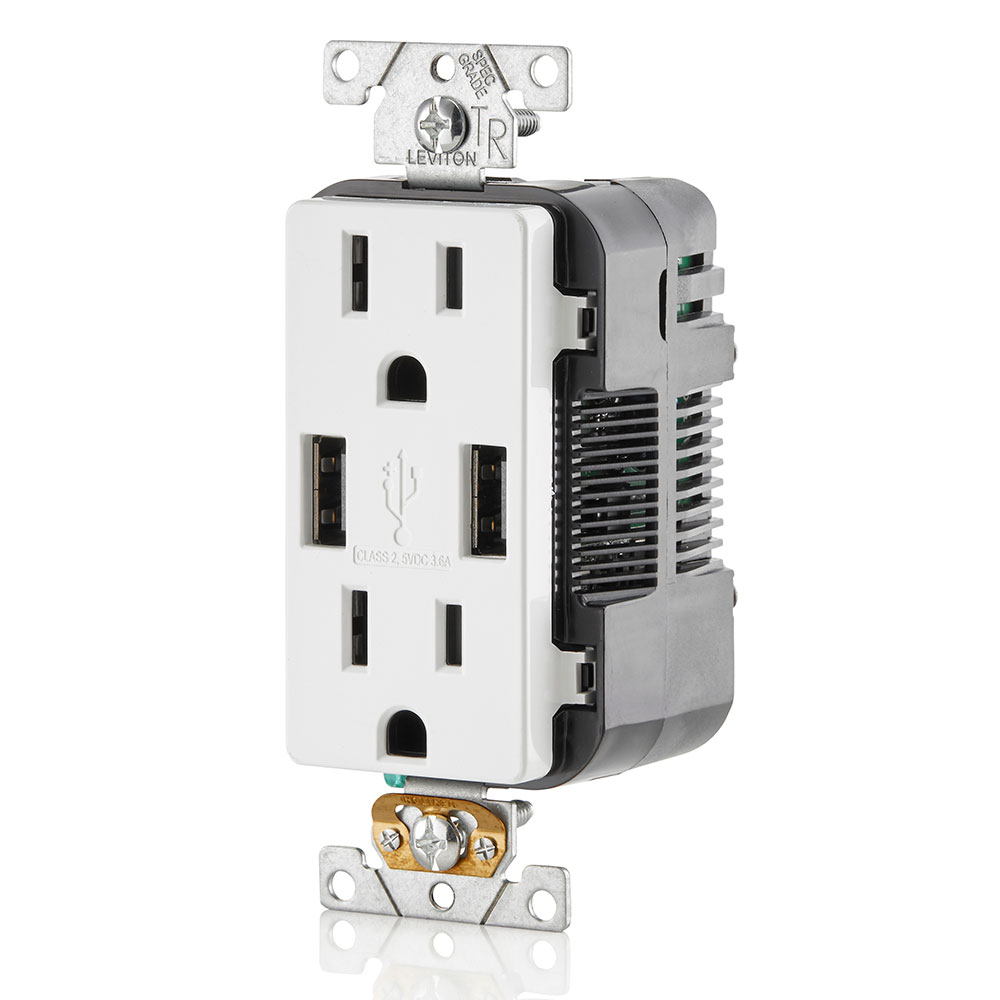

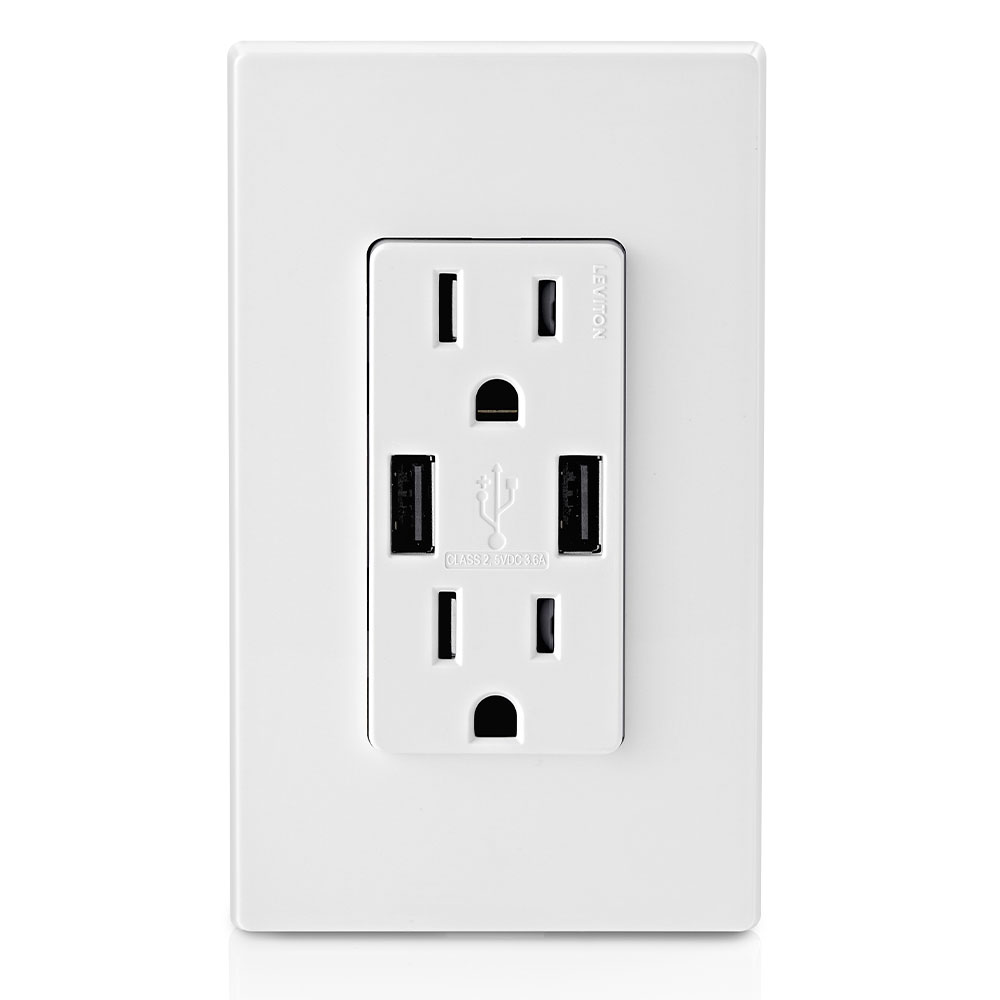

LEV T5632-SW 15A TR RECPT USB CHRG

Manufacturer: Leviton Mfg Co | Catalog # T5632-SW | Cooper Electric Part # 1663635
$92.38/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Combination Duplex Receptacle/Outlet and USB Charger. 15 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, Self-Grounding, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - White

Technical Information

Amperage
15 Amp
Body Material
Thermoplastic,Thermoplastic
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Residential/Commercial Specification,Residential/Commercial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
NEMA
5-15R
Number of Poles
2 Pole
Operating Temperature
-10 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
12-14 lb-in
Type
Type A/A Duplex Receptacle
Voltage
125 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora

General Product Info

12-Digit UPC
078477714812
Color
White,White,White
GTiN
00078477714812
Product UPC
07847771481

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
  • Smart chip recognizes and optimizes the charging requirements of individual devices
  • USB Ports are positioned vertically providing more space for maneuvering and reducing stress on USB cables
  • Compatible with USB 3.0, 2.0, 1.1 devices
  • Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
  • Self-grounding clip included
  • Easy to install. Can replace existing outlets
  • SMART - Built-in smart chip recognizes the individual devices charging requirement to optimize the charge
  • POWERFUL Two high-powered charging ports with 3.6A of charging power
  • CONVENIENT No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
  • EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
