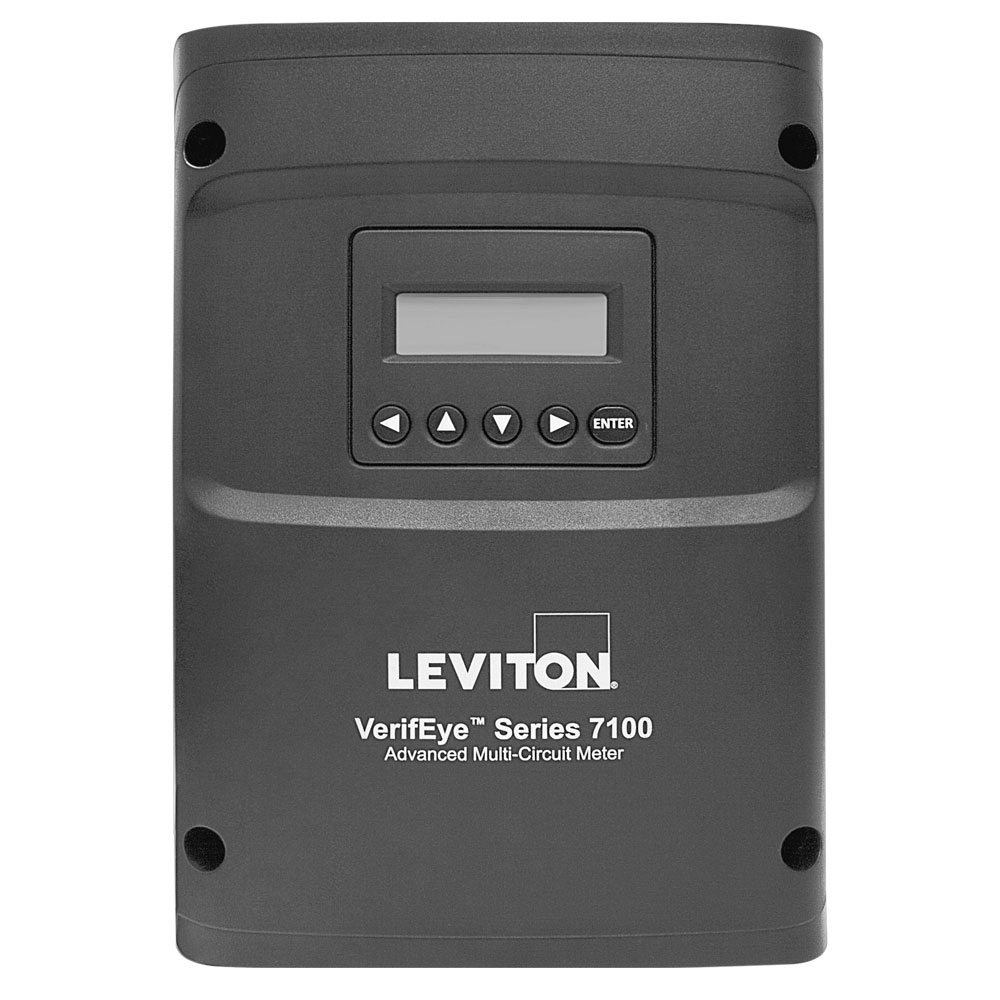

Product image for LEV 71D48 S7100 BCM, 48 INPUTS WITH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV 71D48 S7100 BCM, 48 INPUTS WITH

Manufacturer: Leviton Mfg Co | Catalog # 71D48 | Cooper Electric Part # 1662786
$3,318.78/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
Series 7000 Dual Voltage, Branch Circuit Monitor, 48 inputs, LCD display, NEMA 1 enclosure, SUBMETER ONLY

Technical Information

Amperage
4000 Amp
Communication Type
BACnet MS/TP,BACnet/IP,ModBus/RTU,ModBus/TCP
Enclosure Type
Indoor
Grade
Revenue

Manufacturer Information

Brand
Leviton
Sub Brand
METERS

General Product Info

12-Digit UPC
078477969915
GTiN
00078477969915
Product UPC
07847796991

Certifications and Compliance

Country of Origin
USA
Features
  • 48 independent, user-defined inputs
  • 2 independent sets of reference voltage inputs allow for simultaneous monitoring of multiple systems
  • Line powered from 90-600V, phase-to-phase
  • Meets ANSI & IEC metering system accuracy requirements including branch CTs
  • Supports solid core, split core and Rogowski Coil CTs
  • Meter board features:
  • Easy access terminals for CT wiring, removable connectors
  • Available with or without display embedded options
  • Reports volts, amps, power, demand and energy for each circuiteach Series 7000 covers a complete 42 breaker panelboard plus mains for a total of 48 circuits
  • Provides multi-phase totals for loads with any combination of 1-, 2-, and 3-pole breaker positions
  • User-configurable alarm thresholds register for improved load management
  • Selectable phase orientation and number of circuits
  • Limited 5-year warranty
  • The VerifEye™ Series 7000 Advanced Branch Circuit Monitor is a cost-effective solution for electrical load management. The Series 7000 platform is ideal for high density, branch circuit monitoring applications in both new construction and retrofit applications. The Series 7000 monitors up to 48 branch circuits with one single meter board.
