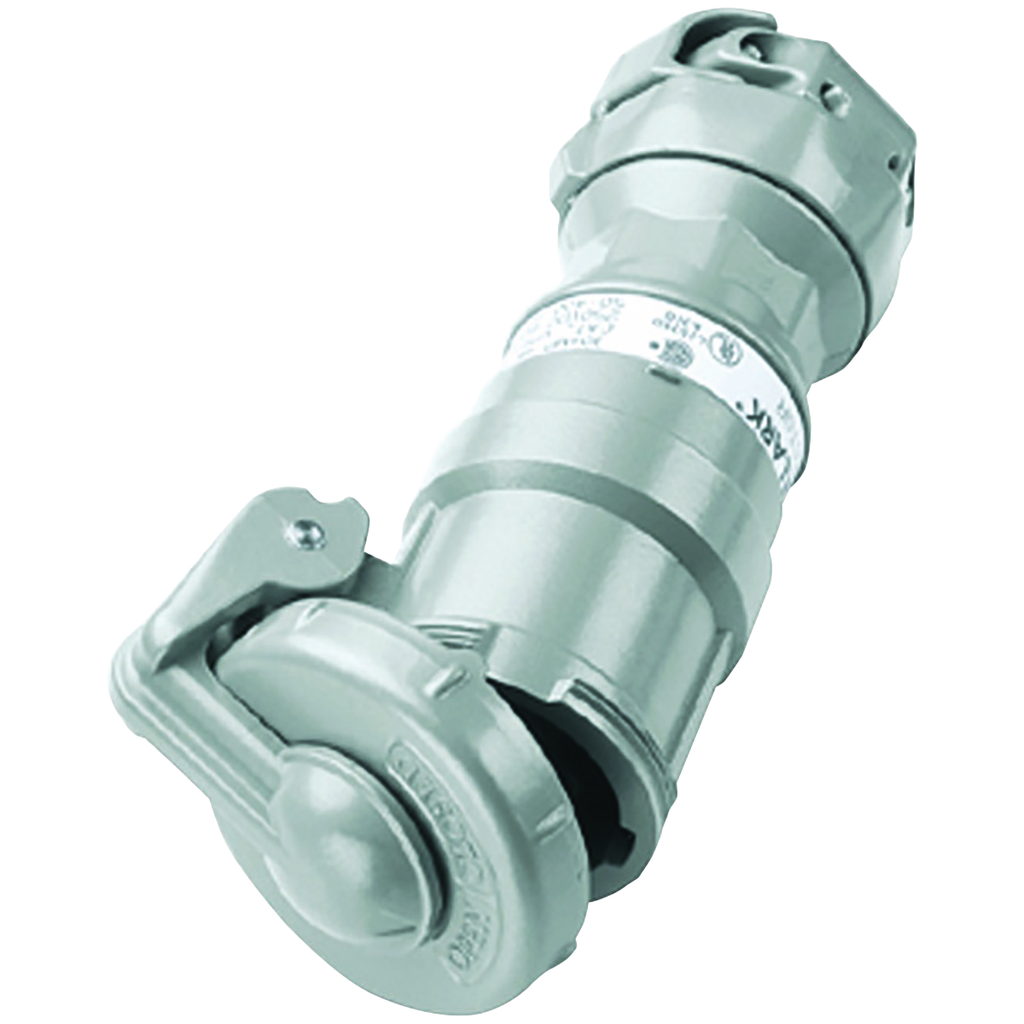

KLRK VPR10367 100A 2W3P CONNECT ASS

Manufacturer: Killark | Catalog # VPR10367 | Cooper Electric Part # 1660451

$1,050.52/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
100A 2W3P CONNECT ASSY.

Technical Information

Amperage
100 Amp
Applications
VERSAMATE metallic pin and sleeve connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous, or corrosive areas in such industrial applications as: pulp and paper mills; electrical power plants; petrochemical plants; wastewater treatment; marine, docks, ports; construction sites; breweries; refineries; chemical plants; grain facilities; textile manufacturing; and food processing facilities.
Conductor Size
10-6 AWG/10-8 AWG
Frequency
50-400 Hz
Material
Aluminum,Beryllium Copper,Brass,Stainless Steel
Number of Poles
3 Pole
Number of Wires
3 Wire
Size
4-9/16" H x 3-3/16" W x 11-21/32" D
Style
Style II
Type
Aluminum NEMA 4X metallic connector
Voltage
600//250 VAC//VDC
Wire Size
10-6 AWG (Regular)/10-8 AWG (Extra Flex)

Manufacturer Information

Brand
Killark Electric
Sub Brand
VERSAMATE

General Product Info

12-Digit UPC
783936834795
Color
Gray
Finish
Baked Epoxy
GTiN
00783936834795
Product Series
VersaMate
Product UPC
78393683479

Dimensions

Height
4.56 Inch
Length
11.65 Inch
Width
4.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
  • Insulators have high mechanical and dielectric strength.
  • Increased Safety type box terminals with gripper ribs securely clamp around conductors.
  • Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
  • Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
  • Includes suitability for Type P marine cable.
Voltage Rating
  • 600 VAC
  • 250 VDC
