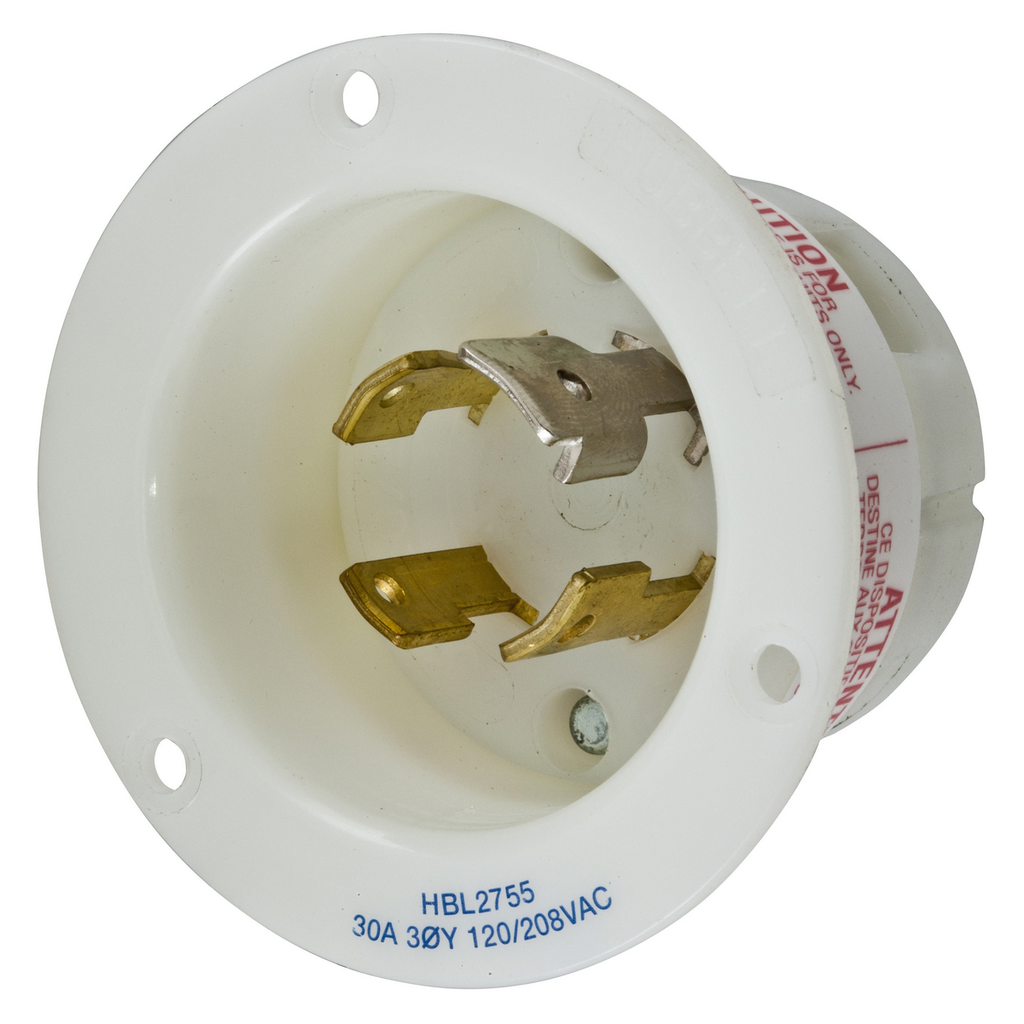

Product image for Hubbell Wiring Devices HBL2755 30 Amp 120/208 VAC 4-Pole 4-Wire NEMA L18-30P White Locking Flanged Inlet
Email

Hubbell Wiring Devices HBL2755 30 Amp 120/208 VAC 4-Pole 4-Wire NEMA L18-30P White Locking Flanged Inlet

Manufacturer: Hubbell Wiring Device | Catalog # HBL2755 | Cooper Electric Part # 1658759
$105.09/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, L18-30P, Screw Terminal, White

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Contact Material
Brass
Current
30 Amp
Dielectric Strength
2500 VAC
Grounding
Non-Grounding
Material
Nylon
Mounting Type
Screw
NEMA
L18-30P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C
Type
Non-Reversing
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039459
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585039459
Product UPC
78358503945
Weight
0.25 lb

Dimensions

Height
2.27 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product
