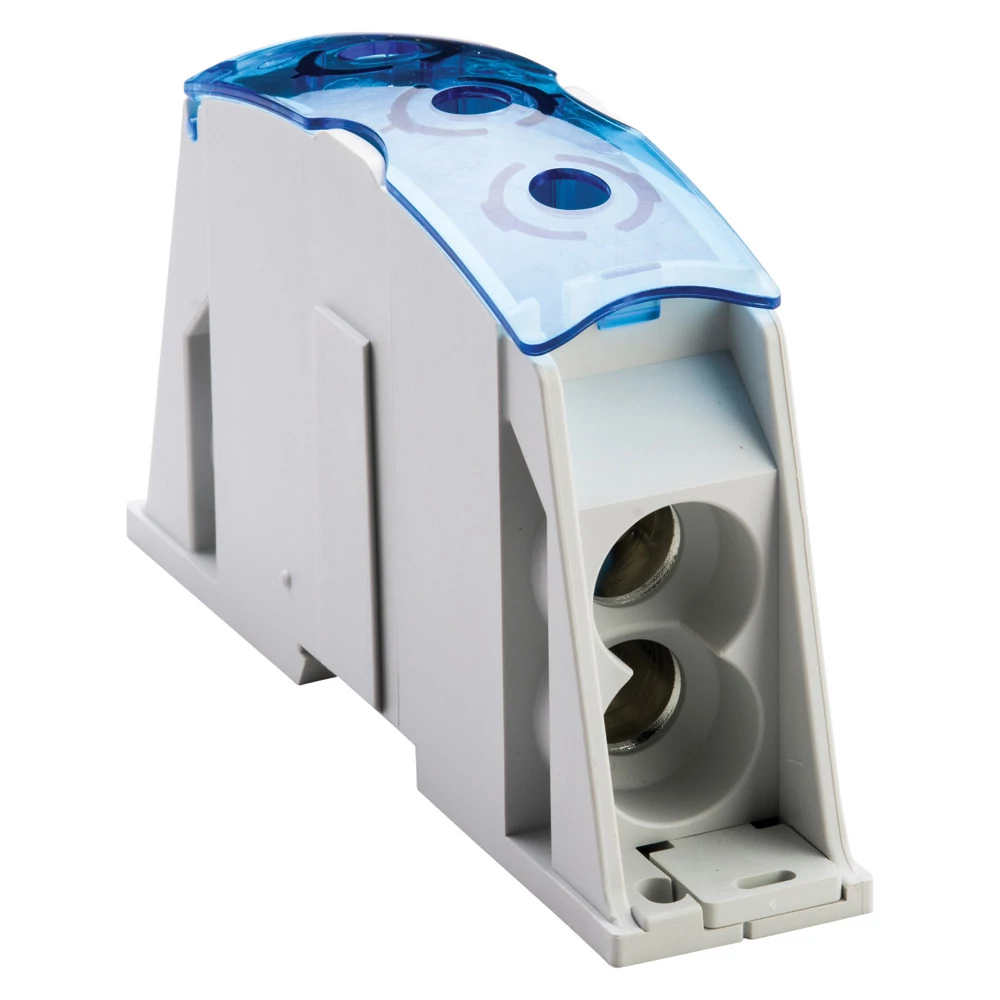

Erico 561170 Splice Block, Cable-2 Cables, 255 A UL, Copper

Manufacturer: Erico, Inc | Catalog # 561170 | Cooper Electric Part # 1658006
$117.23/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Primary output/input device for power connection between primary and secondary switchboard, or for machine or industrial equipment. Power Block SB2C250, Copper.

Technical Information

Applications
Power Connections
Enclosure Rating
IP20
Material
Copper
Number of Poles
1 Pole
Type
Cable-2 Cables

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856940036
Finish
Tinned
GTiN
00782856940036
Product UPC
78285694003
Weight
0.50 kg

Dimensions

Depth
3.26-3.26
Height
5.83-5.83
Width
1.37-1.37
Certifications
  • CE, ERIFLEX SB EN 60947-7-1
  • UL UL 1953
  • EN 45545 EN 45545-2:2013
  • UKCA, ERIFLEX SB EN 60947-7-1
Features

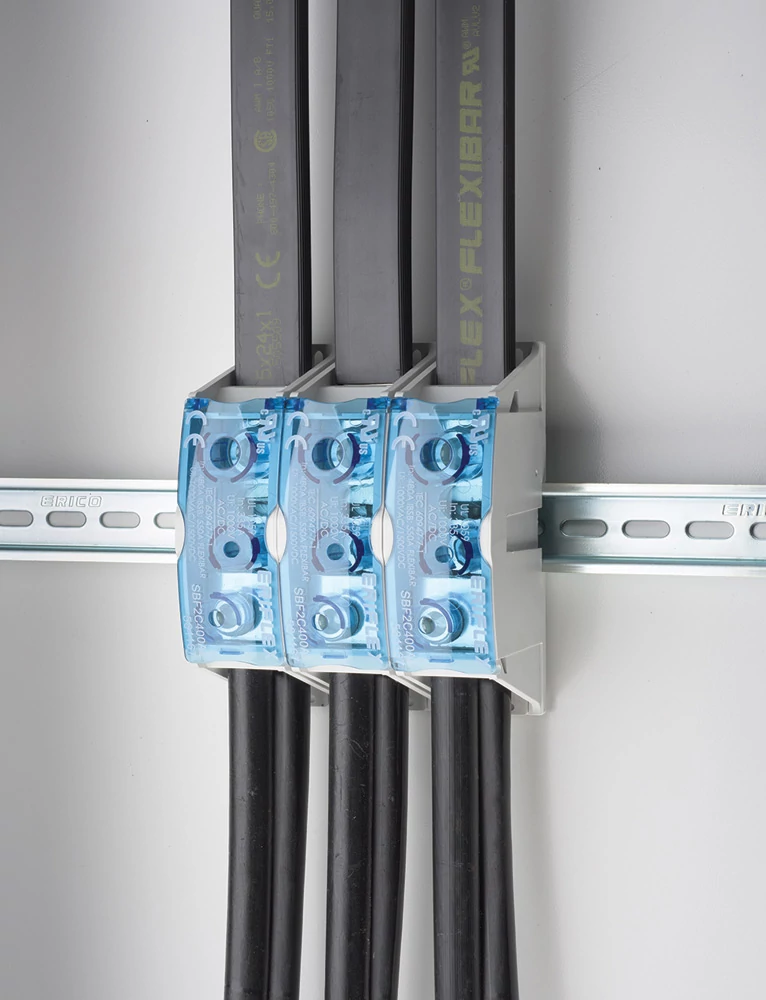

  • Can be connected with round cross section cable or flat connection system like nVent ERIFLEX Flexibar Advanced or IBSB Advanced Insulated Braided Conductor
  • Compact power block with high short circuit current rating
  • Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
  • Screw retaining cover is hinged and removable

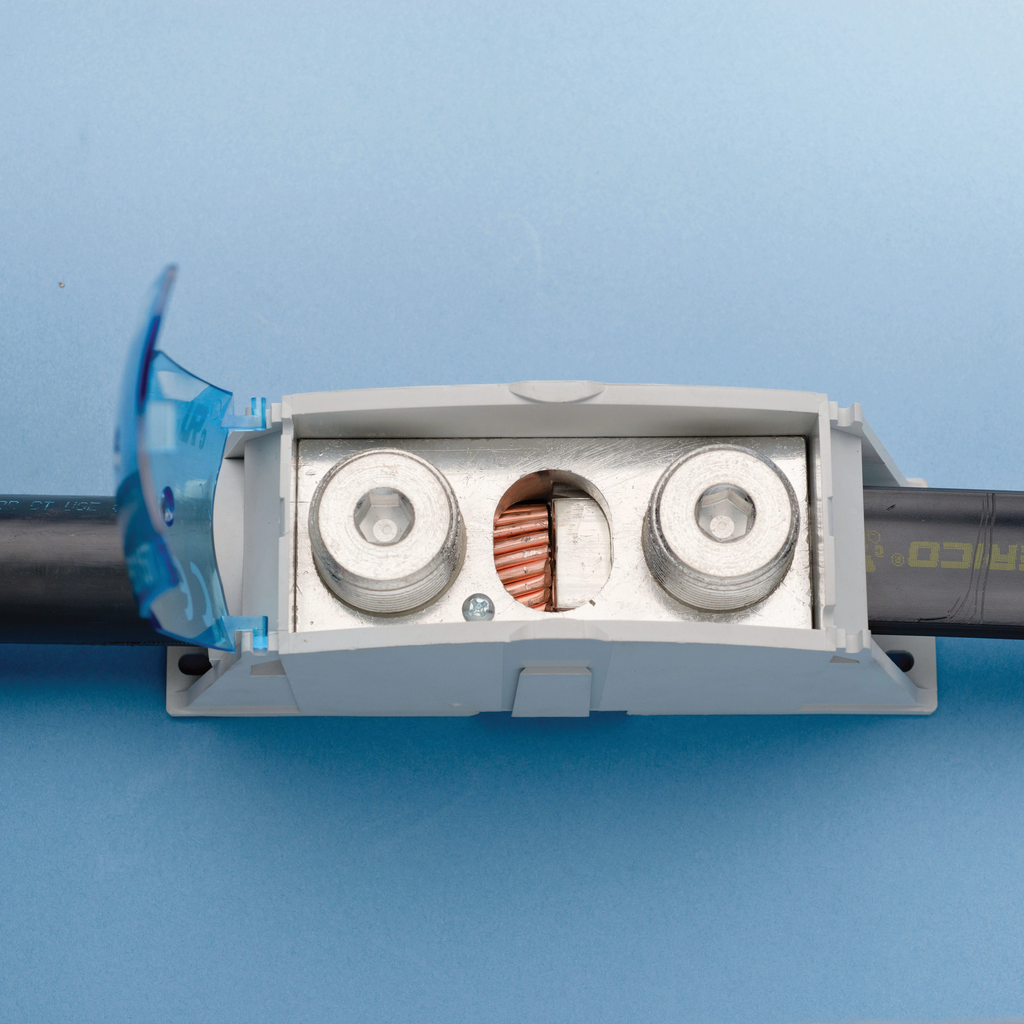

  • Design allows for visual inspection of conductor and confirmation of connection

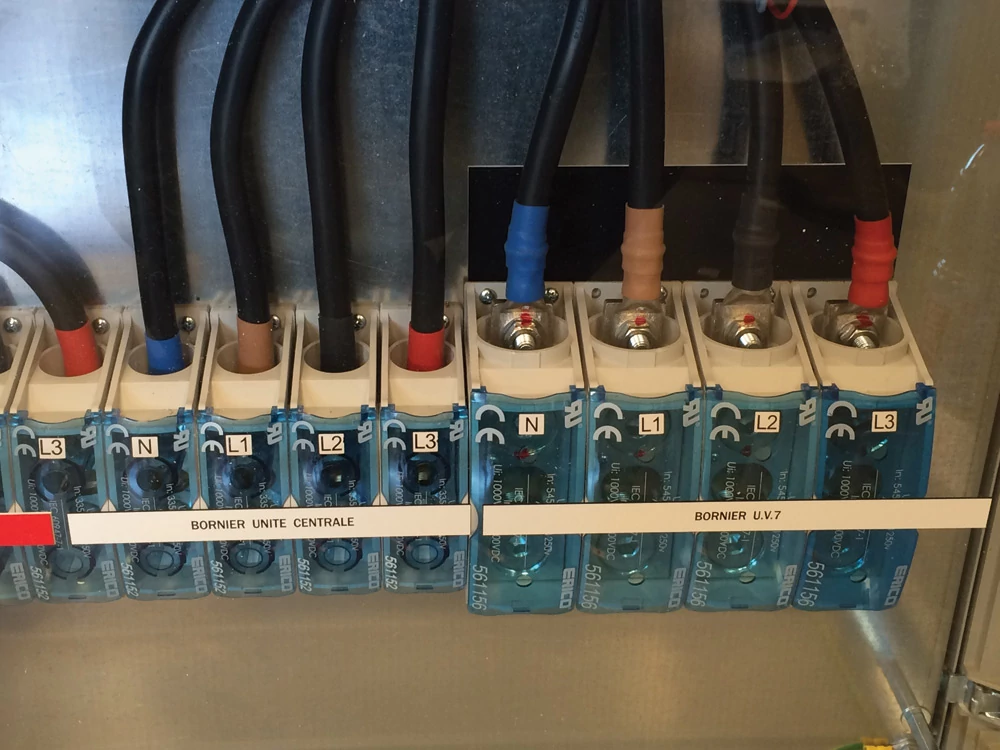

  • Modular snap-together blocks for building multi-pole power blocks

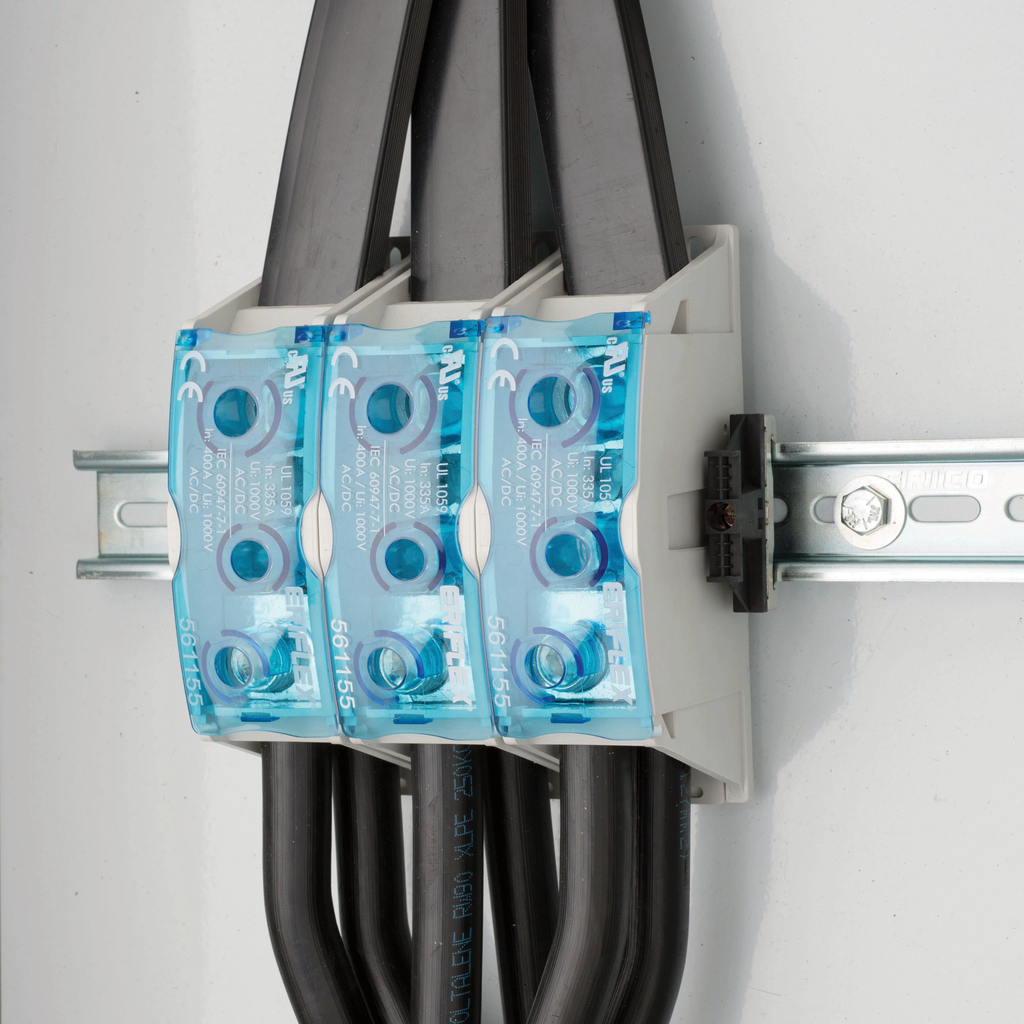

  • Easily clips onto DIN rail or mounts to panel with screws
  • Voltage detection and measurement connection
  • 95% fill ratio
  • RoHS compliant
  • Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
  • Halogen free plastic housing excluding the blue protection cover
