Satco S39914 14 Watt T8 LED; 4Ft; 3500K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

Manufacturer: Satco | Nuvo | Catalog # S39914 | Cooper Electric Part # 1656455
$11.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
14W T8 LED - 4 ft. - 3500K - G13 Base - 50000 Hours - 1700L - Type B - BBP - 1 or 2 Ended Wiring

Technical Information

Amperage
0.117-0.051 Amp
Applications
For Indoor/Outdoor
Average Rated Life
50000 hr
Beam Angle
210
Beam Spread
210
Bulb Shape
T8
Color Temperature
3500 K
Correlated Color Temp
3500 K
Dimmable?
No
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor;Outdoor
Lens Color
Gloss,White
Lens Material
Glass
Lumens
1,700 Lumen
Material
Glass
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Temperature Rating
-20 degrees C
Type
Type B
Voltage
120 Volt
Wattage
14 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923399145
Environmental Conditions
Damp Wet Location Rated
Finish
White
GTiN
00045923399145
Housing Color
White
Product UPC
04592339914
Weight
0.43 lb

Dimensions

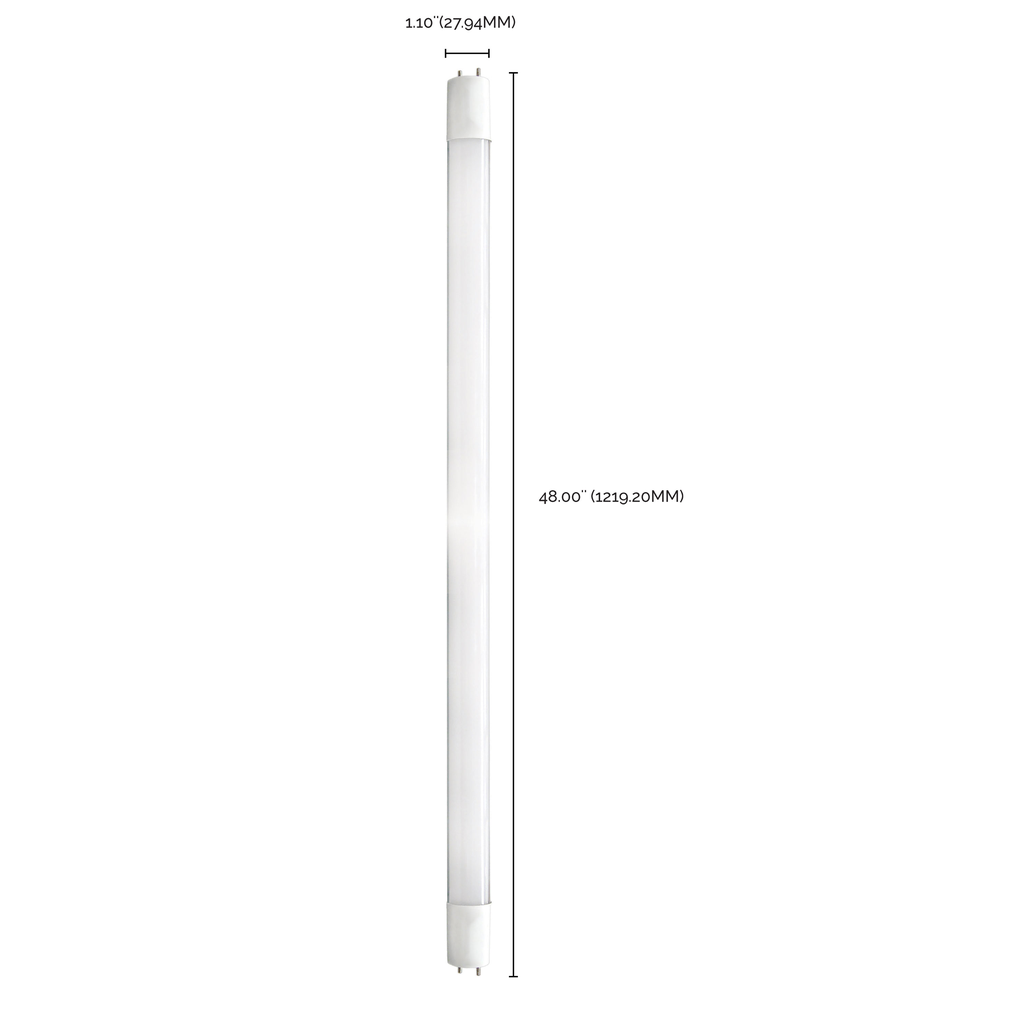

Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • 4-ft length
  • 14W
  • 25W/28W/30W/32W Fluorescent Replacement
  • Ballast Bypass Type B
  • 120-277V Range Voltage
  • Damp Location Rated
  • Suitable for use in enclosed fixtures
  • rated for use in damp locations
  • Glass Tube
  • 210-degree beam angle
  • Equivalent CCT selectable option available in S11766
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
Replaced By Products
  • S29914
  • S9914
