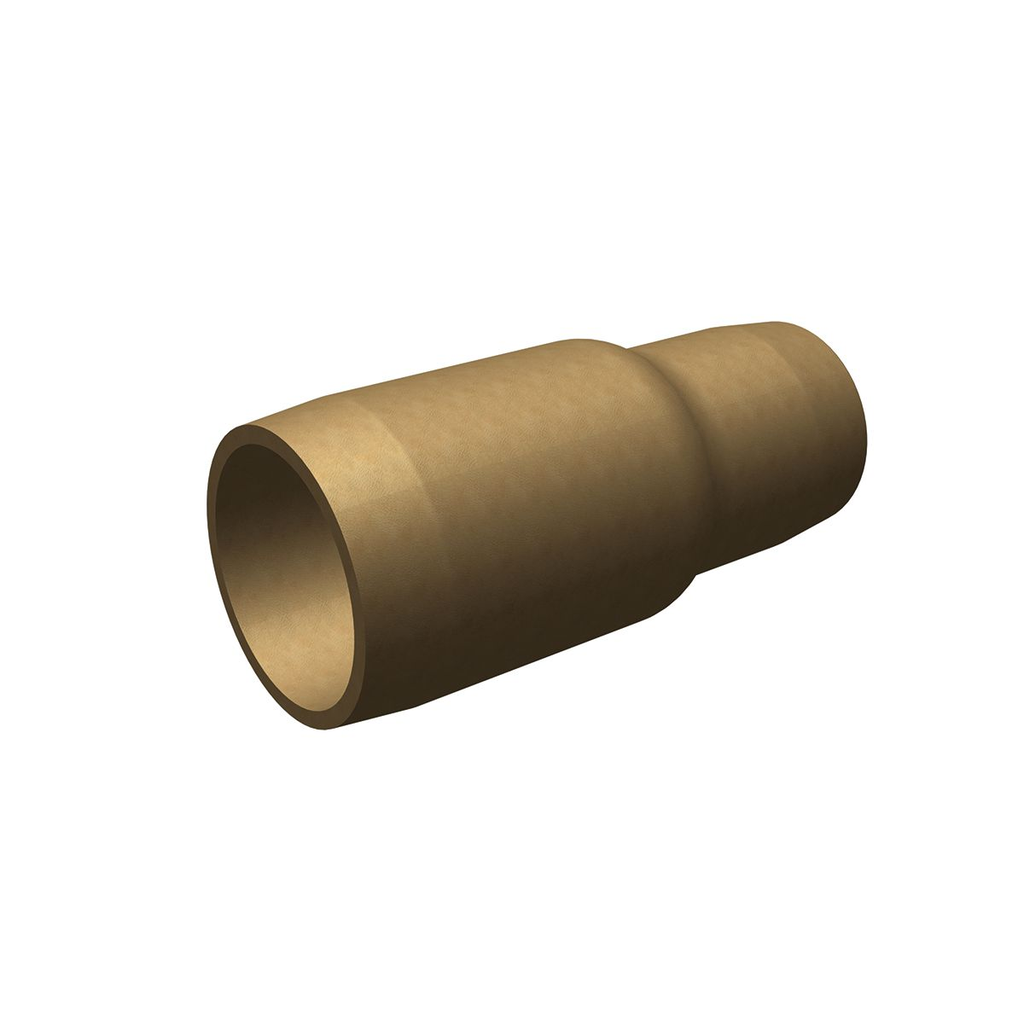

Product image for Burndy Z88C3429 Mole Outlet Insulating Sleeve, 5-3/16 in L, 2-1/8 in W
Image thumbnail 0
Image thumbnail 1
Email

Burndy Z88C3429 Mole Outlet Insulating Sleeve, 5-3/16 in L, 2-1/8 in W

Manufacturer: Burndy | Catalog # Z88C3429 | Cooper Electric Part # 1655871
$40.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Mole Outlet Insulating Sleeve, 5-3/16 in L, 2-1/8 in W.

Technical Information

Applications
For Use With Socket And Nut Assemblies: Z32NR, Z34NR, Z34NRB, Z36NR
Material
Diatex
Size

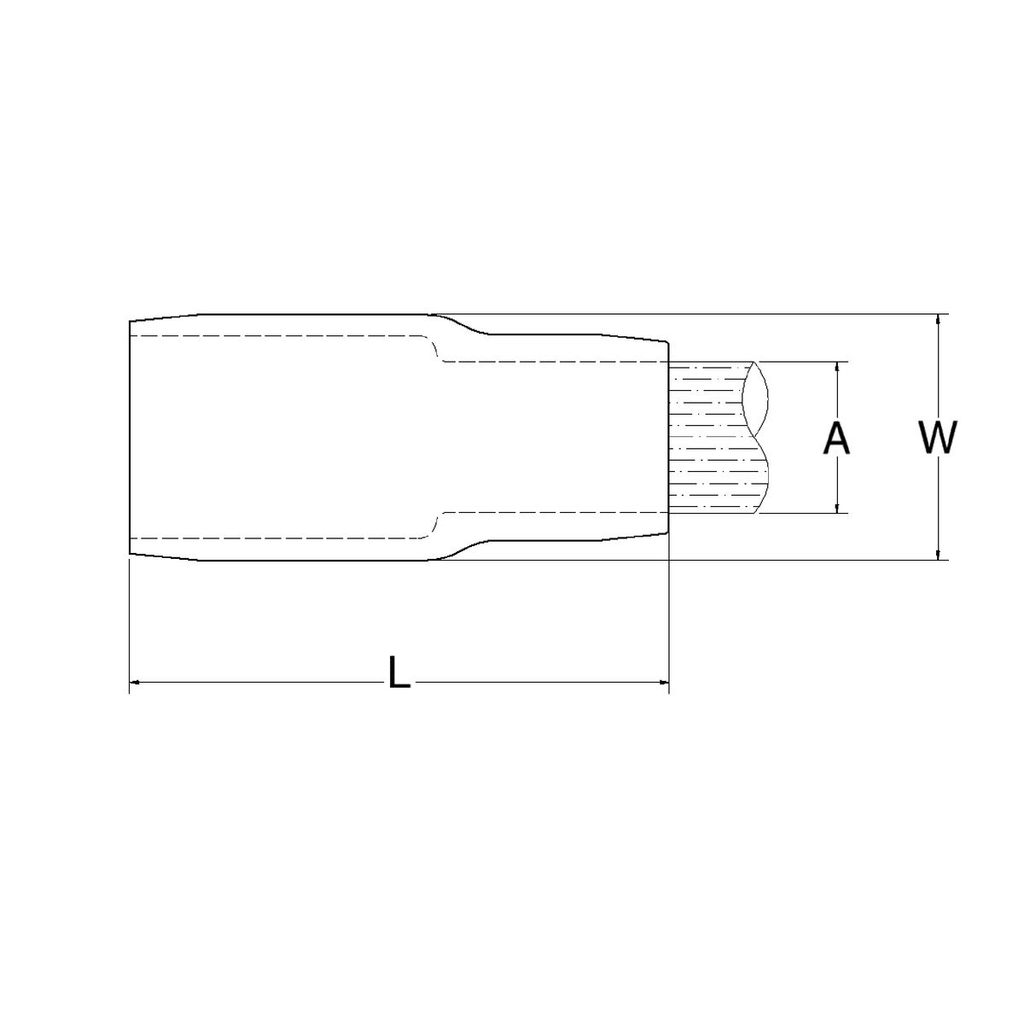

5-3/16 IN Length X 2-1/8 IN Width X 1-3/8 IN Dimension A (Build Up Insulation Of MOLE Joint With Rubber Tape To Equal Inner Diameter Of Insulating Sleeve)
Type
Z-C

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810017159
GTiN
00781810017159
Product UPC
78181001715
Weight
30 lb

Dimensions

Height
1.38 Inch
Length
5.19 Inch
Width
2.13 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • An effective aid in insulating MOLE outlets to produce a secure watertight joint with a minimum of taping
  • Fits over the MOLE outlet and over the maximum outer diameter of insulated cable
  • The difference between the I.D. of the standard sleeve and the O.D. of the cable insulation is taken up by wrapping the cable with several turns of rubber tape, the only external taping required to effectively seal the joint is the small area at the end of the sleeve
