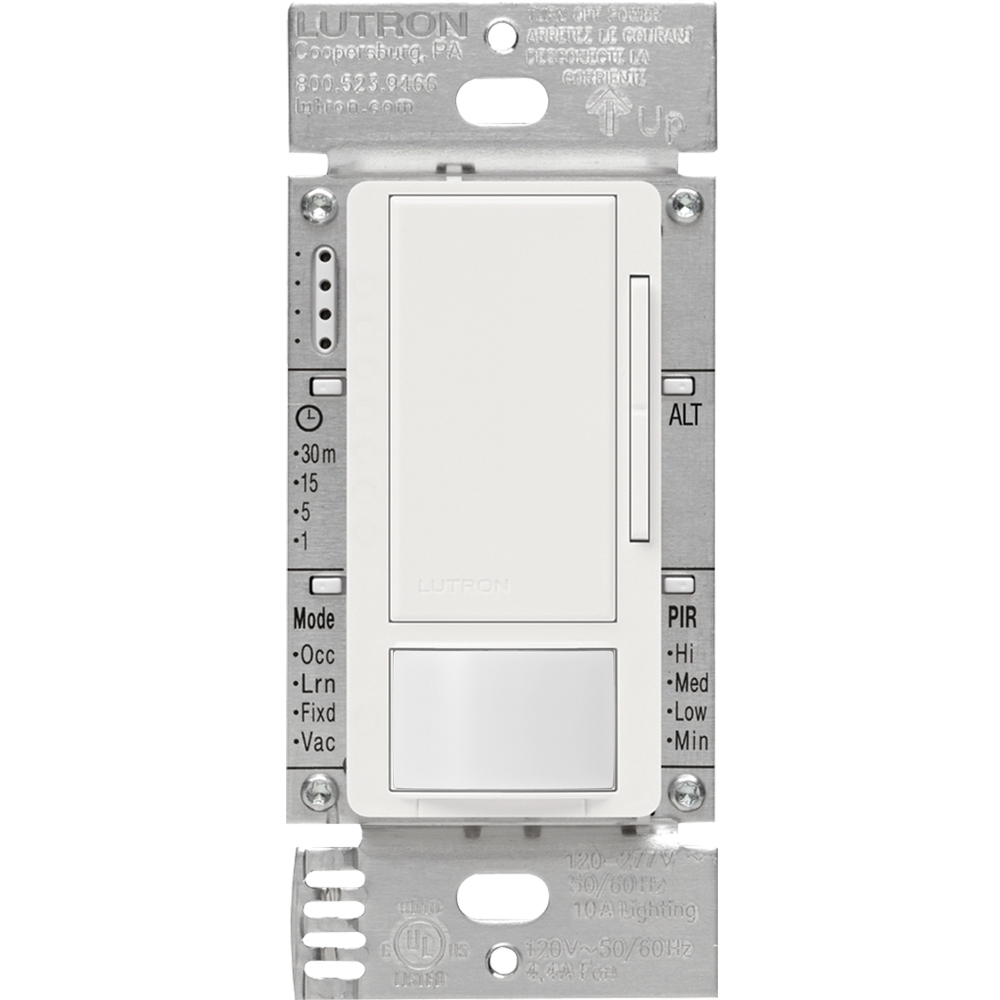

Product image for Lutron WMS-Z101-WH TAA MAESTRO DV 8A W
Email

Lutron WMS-Z101-WH TAA MAESTRO DV 8A W

Manufacturer: Lutron | Catalog # WMS-Z101-WH | Cooper Electric Part # 1655439
$130.21/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
TAA Compliant Maestro 0-10V Dimmer and Occupancy/Vacancy PIR Sensor, single pole/multi-location, 10-277V 8A max, white

Technical Information

Applications
Lighting
Body Material
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Operating Temperature
32 To 104 degrees F
Power Supply
120 V

Manufacturer Information

Brand
Maestro

General Product Info

12-Digit UPC
784276281584
Color
White
Finish
Gloss
GTiN
00784276281584
Product UPC
78427628158
Standards and Certifications
  • UL
  • CUL
  • TITLE20
  • TITLE24
  • cUL
  • Title 20/24 certified
Features
  • Passive infrared sensors that automatically control the lights in an area
  • These sensors detect heat from occupants moving within an area to deterine when the space is occupied
  • Combines a Maestro 0-10 V dimmer with an occupancy sensor
  • Controls 1-10 VDC electronic fluorescent ballast or LED driver load types
  • Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout (1, 3, 5, 15, or 30 minutes)
  • Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level
  • Adjustable sensitivity level: High, med, low, min
  • Off warning fades lights to off over a period of 10 seconds
  • Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
  • Adaptive switching algorithm for extended relay life
  • Smart ambient light detection (ALD)
  • Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches
  • High-end trim and low-end trim to adjust maximum and minimum light levels
  • Selectable dimming curve-linear or square law
  • Miswire and incompatible load alert
