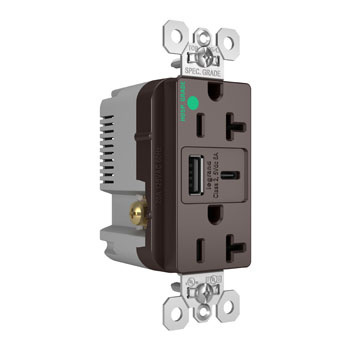

Product image for P&S TR20HUSBAC6 20A 125V HG TR REC+
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

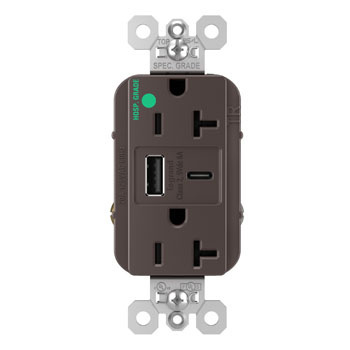

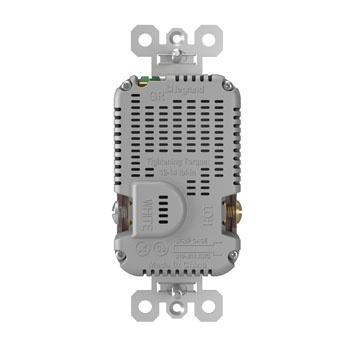

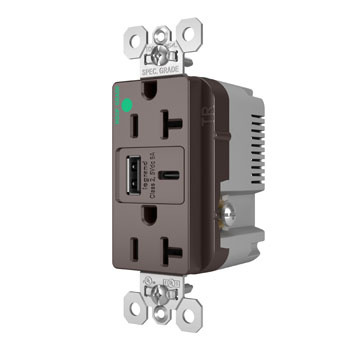

P&S TR20HUSBAC6 20A 125V HG TR REC+

Manufacturer: Pass & Seymour / Legrand | Catalog # TR20HUSBAC6 | Cooper Electric Part # 1651386
$142.07 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure Installation / Instruction Manual
20A 125A Hospital Grade Tamper-Resistant REC+USBA+C FAST CHRG

Technical Information

Amperage
3-5 Amp USB, 20 Amp Receptacle
Applications
Commercial,Healthcare
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Dielectric Strength
1500 V
Frequency
60 Hz
Grade
Hospital
Grounding
Auto
Indoor Outdoor
Indoor
Material
Nylon
Mounting Type
Box
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees F
Outlet Type
Hospital Grade,Tamper-Resistant,USB-Charging
Temperature Rating
-40 degrees C to 60 degrees C
Type
Tamper-Resistant, Type-A/Type-C, Ultra-Fast
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007209822
Color
Brown
Environmental Conditions
UL 94 V-2 Flammability Rating
GTiN
00785007209822
Product UPC
78500720982

Dimensions

Depth
1.425 Inch
Height
2.677 Inch
Warranty Length
1 yr
Width
1.693 in

Certifications and Compliance

Country of Origin
China
Features
  • Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port.
  • Posted terminal screws and external back-wire pressure plates for more productive and reliable terminations.
  • Reinforced nylon USB Type-A ports to withstand abuse over the life of the product.
  • Type-A and Type-C ports carry a minimum rating of 10,000 insertions.
  • Slim design allows for installation in standard depth wall boxes.
  • Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies.
