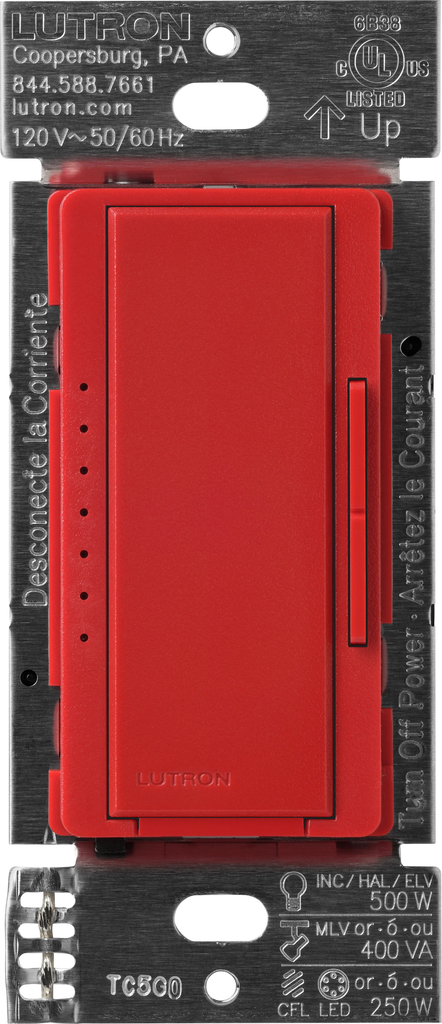

Lutron MA-PRO-HT MAESTRO PRO LED DIMME

Manufacturer: Lutron | Catalog # MA-PRO-HT | Cooper Electric Part # 1647992
$88.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Technical Information

Actuator
Tapswitch
Applications
Lighting
Connection Type
Screw Terminal,Screw-Type Terminals
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Size
75 in
TC Connection
Screw terminals
Type
Digital fade dimmer, multi-location/3-way/single-pole
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Maestro
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276261609
Color
Hot
Environmental Conditions
0 to 90 PCT
Finish
Satin
GTiN
00784276261609
Product UPC
78427626160

Certifications and Compliance

Country of Origin
Mexico
Standards and Certifications
  • UL
  • CSA
  • NOM
Features
  • Maximum Rating: 250W LED, 500W Incandescent / Halogen/ ELV, 400VA MLV, or 20 Hi-Lume 1% 2-Wire (LTE) LED Drivers
  • Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1% LED drivers
  • Single pole or multi-location dimming from up to 9 locations with companion dimmer (MSC-AD-xx sold-separately)
  • Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select
  • Interchangeable color kits available for front panel (color change kit MK-D sold separately)
  • Phase Auto-Select: Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase; When neutral is not connected, the automatic default is forward phase)
  • Power failure memory; Should power be interrupted, the control will return to its previous state when power is restored
  • Screw Terminals for easy install; Can be installed on either load or line side of circuit
  • While load is on: Green indicator lights brighten and reflect light level; When load is off: Indicator lights remain in a soft glow state
  • Maestro PRO LED+ dimmers and wall plates are available in 10+ colors (wall plate sold separately)
  • Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
  • Provides true dimming from each location (with companion dimmers)
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
