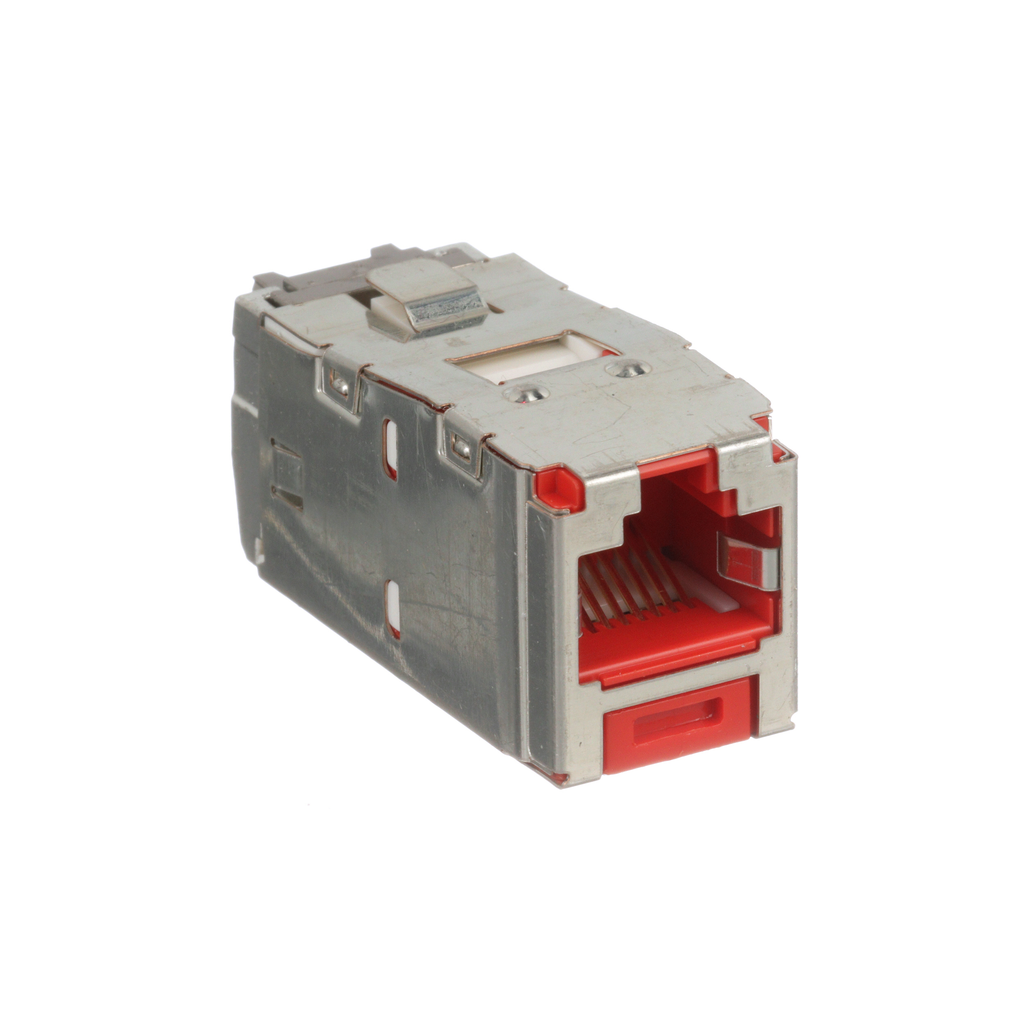

Product image for Panduit CJS688TGRDY STP RJ45 Cat 6 TG Jack Module, Red
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit CJS688TGRDY STP RJ45 Cat 6 TG Jack Module, Red

Manufacturer: Panduit Corp | Catalog # CJS688TGRDY | Cooper Electric Part # 1645987
$39.57/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Engineering Drawing Product Brochure
The Mini-Com® Cat 6 Shielded RJ45 TG Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

Technical Information

Applications
10BASE-T, 100BASE-T, 1000BASE-T Ethernet, 4/16 Token Ring, Digital Video and Broadband/Baseband Analog Video, Voice Over Internet Protocol (VoIP)
Cable Entry
T568A/T568B
Cable Size
26-22 AWG
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Temperature Rating
-10 to 65 degrees C
Type
RJ45, Shielded, 8-Wire, Universal, Shuttered

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com, TX6™ Plus

General Product Info

12-Digit UPC
074983932191
Color
Red
Environmental Conditions
14 F
GTiN
00074983932191
Product UPC
07498393219
UNSPSC
43223301
Used With
T568A/T568B Cable

Dimensions

Depth
1-1/2 Inch
Height
0.74 Inch
Overall Length
1.5 in
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
