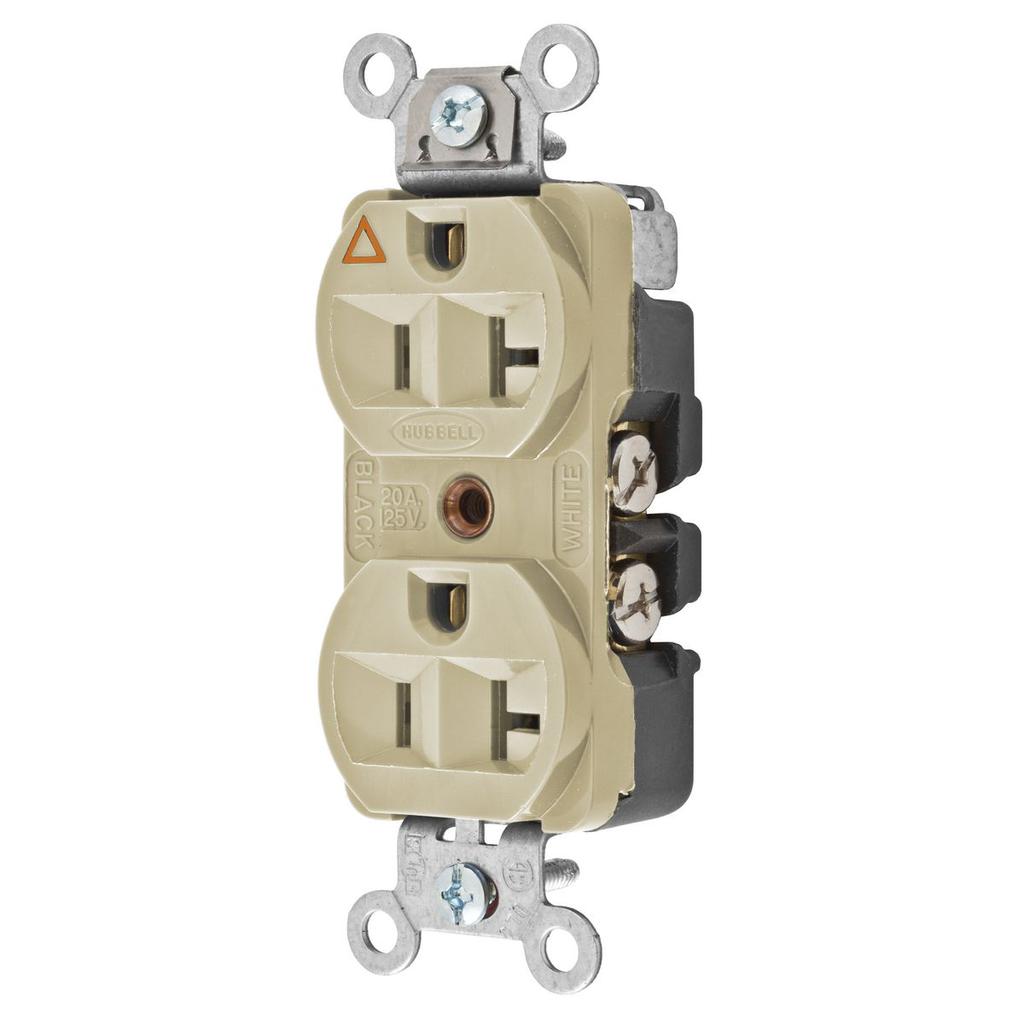

Product image for Hubbell CR5352IGI 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Isolated Ground Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Hubbell CR5352IGI 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Isolated Ground Duplex Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # CR5352IGI | Cooper Electric Part # 16456
$44.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex,Hubbell-Pro Heavy Duty, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack, Isolated Ground.

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Grounding
Isolated
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
TC Connection
Back & Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585387161
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585387161
Product Series
Hubbell-PRO
Product UPC
78358538716
Weight
0.22 lb

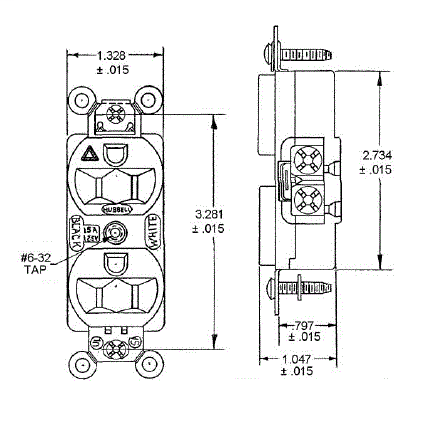

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Finder Groove Face
  • Isolated Ground
