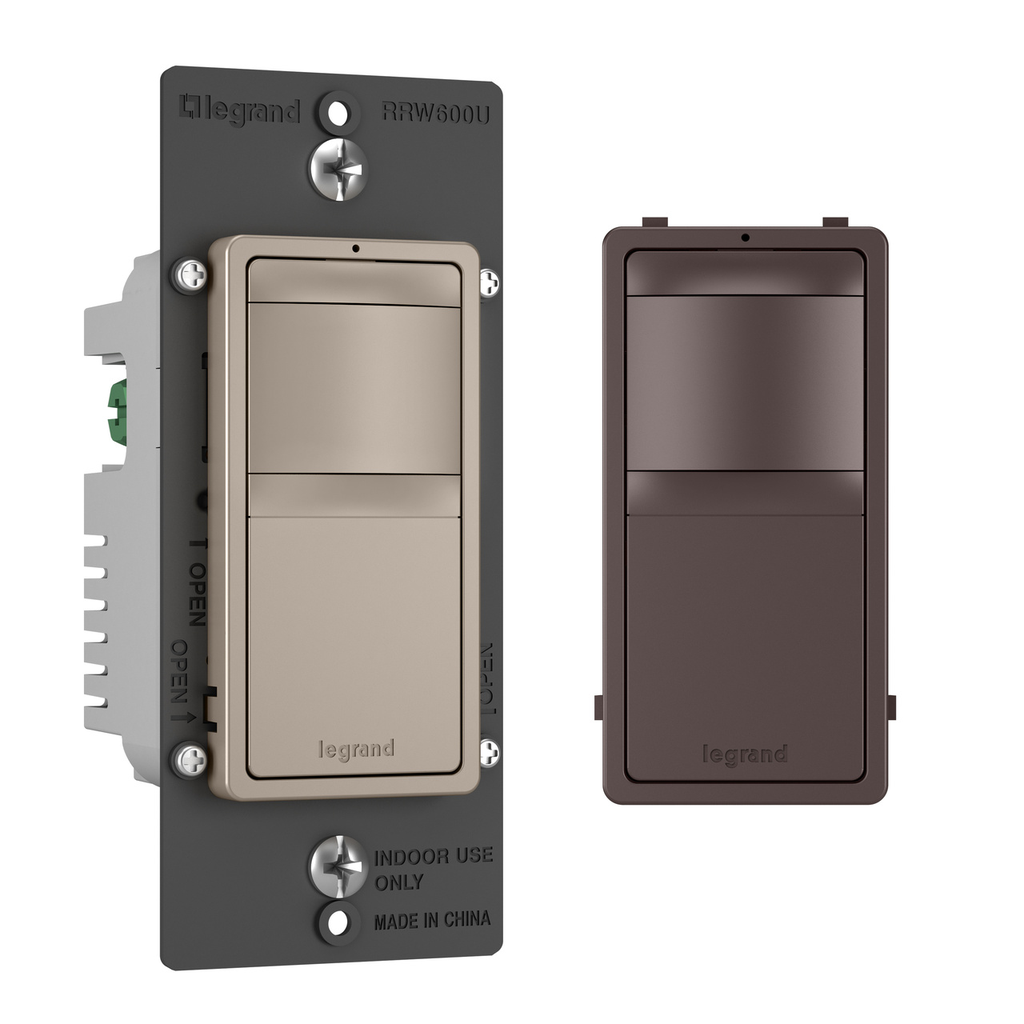

Product image for Pass & Seymour RRW600UBCCCV4 Single Pole/3-Way Occupancy Sensor, 120V - Bi-Color
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

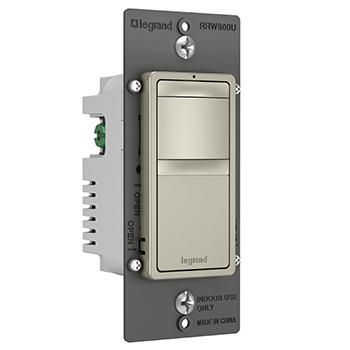

Pass & Seymour RRW600UBCCCV4 Single Pole/3-Way Occupancy Sensor, 120V - Bi-Color

Manufacturer: Pass & Seymour / Legrand | Catalog # RRW600UBCCCV4 | Cooper Electric Part # 1640685
$85.92/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
120V Single Pole/3-Way Occupancy Sensor

Technical Information

Amperage
15 Amp
Indoor Outdoor
Indoor
Input Voltage
120 VAC
Load Rating
120V 5A 600W (CFL), 120V 600VA (Fluorescent), 120V 600W (Halogen), 120V 600W (Incandescent), 120V 600VA (MLV), 120V 5A (ELV), 120V 5A 600W (LED)
Load Type
Incandescent:Fluorescent, CFL, Halogen, Fan Motor, LED
Material
Polycarbonate, Steel
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
3 Pole
Sensing Range
Minor Motion 20 ft, Major Motion 35 ft
Switch Type
Motion Sensor
Type
Switch
Voltage
120 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007158359
Color
Bronze
Finish
Metallic
GTiN
00785007158359
Product UPC
78500715835

Dimensions

Depth
1.88 Inch
Height
2.63 Inch
Warranty Length
5 yr
Width
1.69 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.
  • Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
  • Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 5 minute delay).
  • Auto ON/Auto OFF functionality as default. Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home.
  • Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.

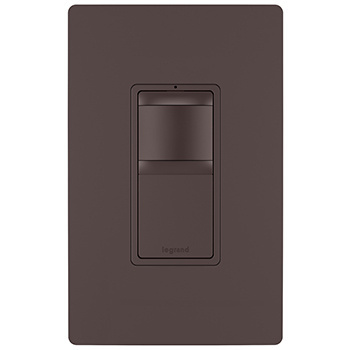

  • Bi-color unit ships with popular radiant® Nickel and Dark Bronze metallic colors.
Certifications
  • UL Listed
