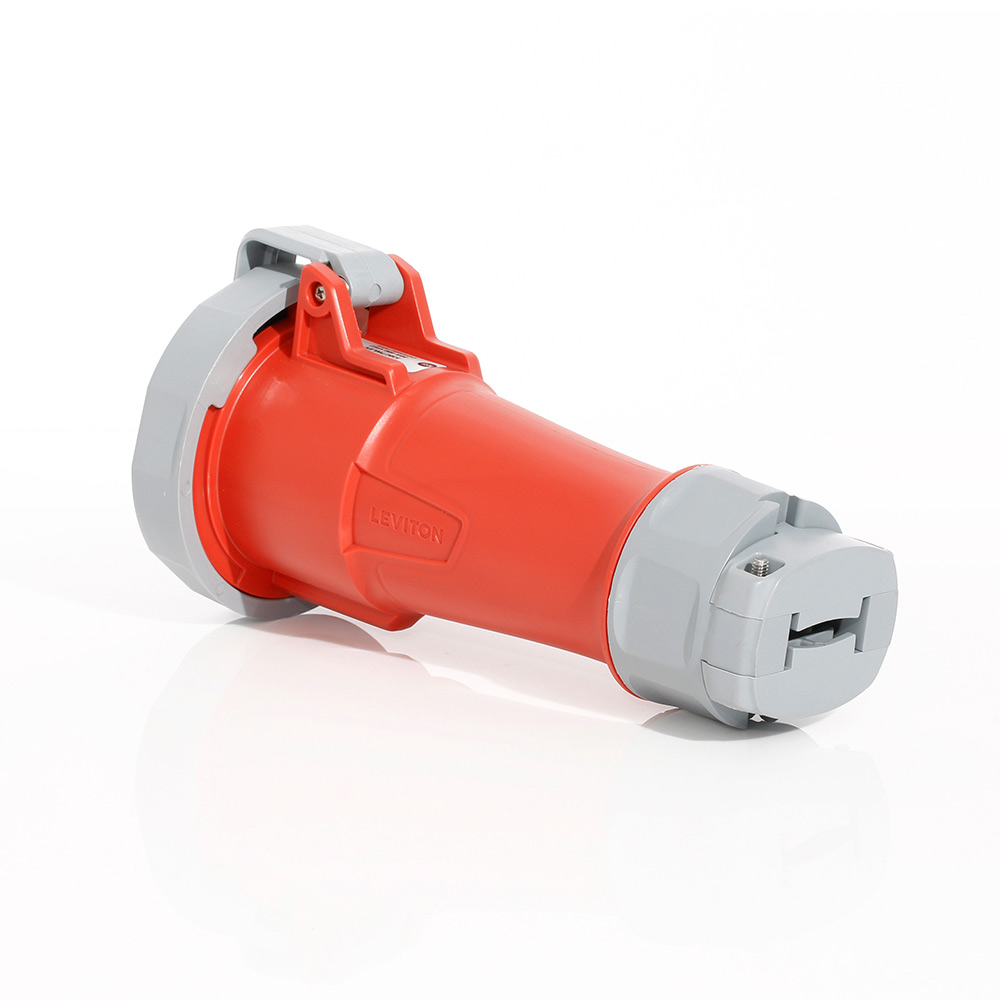

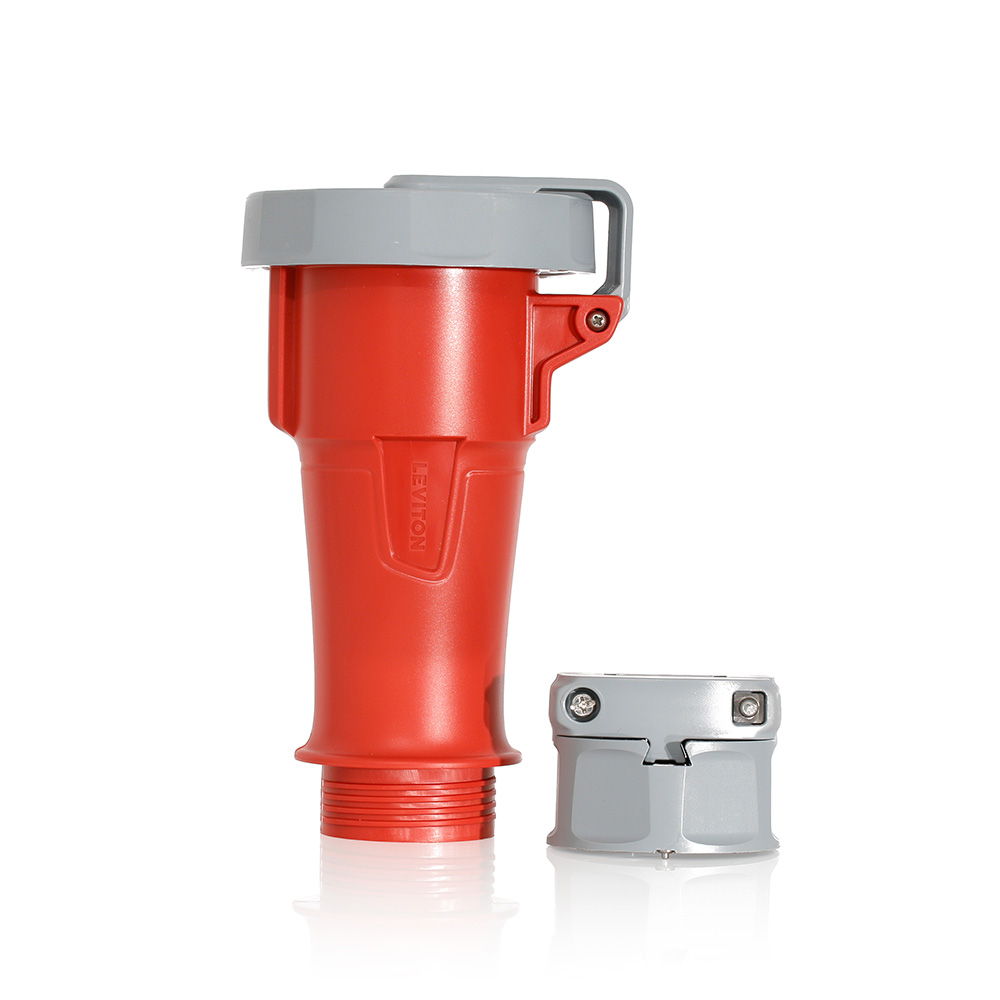

LEV 430C7WLEV 30 Amp Pin & Sleeve C

Manufacturer: Leviton Mfg Co | Catalog # 430C7WLEV | Cooper Electric Part # 1639637
$307.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
30 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Red

Technical Information

Actuator
303 Stainless Steel
Amperage
30 Amp
Applications
Industrial
Device Type
Connector
Dielectric
3000 V
Flamability Class
Rated HB Or Better Per UL94,Rated V-0 Perf UL 94
Horsepower
7.5 hp
IP Rating
IP66,IP67,IP68,IP69K
Max Voltage
600 V
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Rating
IEC 60309-1,IEC 60309-2
Temperature Rise
30 degrees C
Torque
50 lb-in
Type
Pin & Sleeve Connector
UV Resistance
UV Stabilized F1 Rated Housings
Voltage
480 Volt
Wire Count
4

Manufacturer Information

Brand
Leviton
Sub Brand
PIN AND SLEEVE DEVICES

General Product Info

12-Digit UPC
078477921234
Color
Red
Environmental Conditions
Salt fog tested
GTiN
00078477921234
Housing Material
Impact Modified Nylon
Product UPC
07847792123

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Mexico
CSA
CSA C22.2 No 182.1-13
Patents
  • US10431922
  • US11271342
  • US11515665
Features
  • LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition:
  • Improved speed of assembly with threaded housings that have less screws for reduced installation time
  • Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
  • Best in class 5-year limited warranty! Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. Calculate Time & Money Saved with the LEV Series Calculator!
