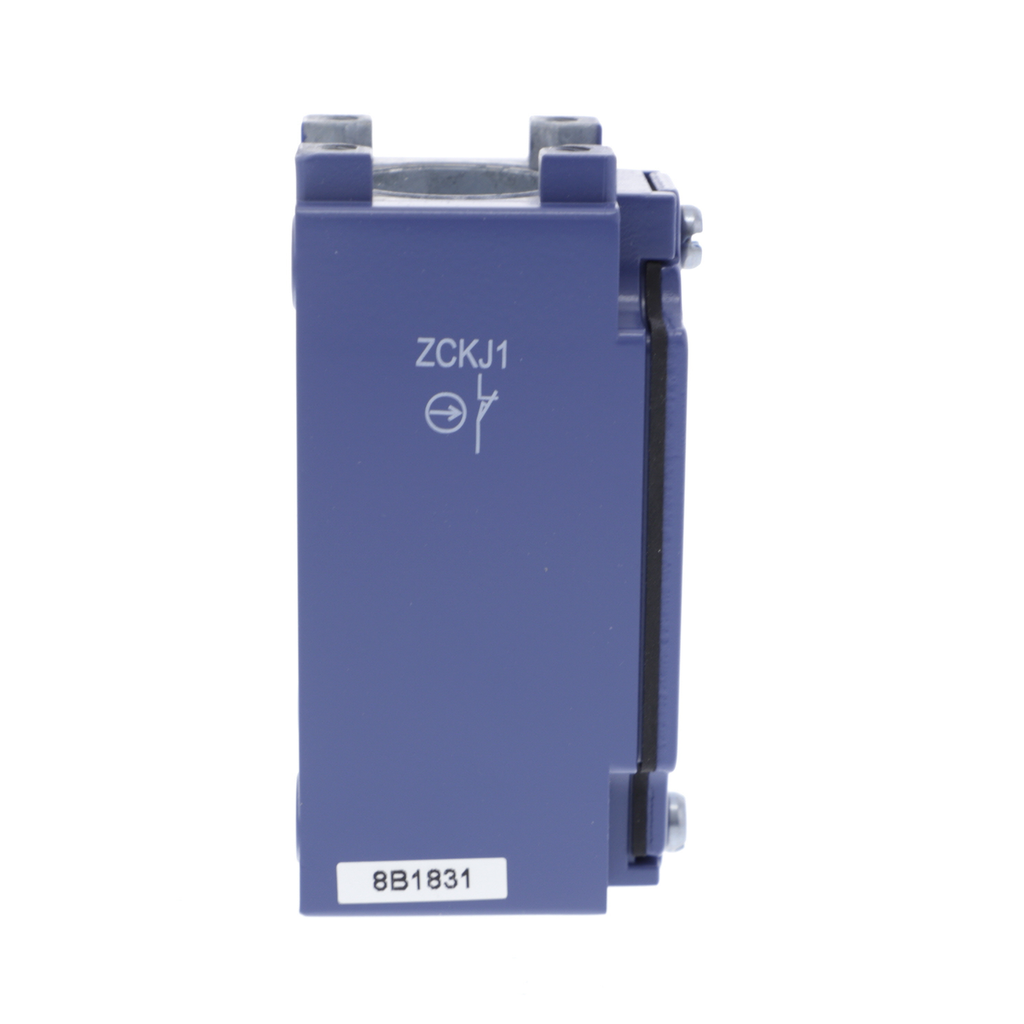

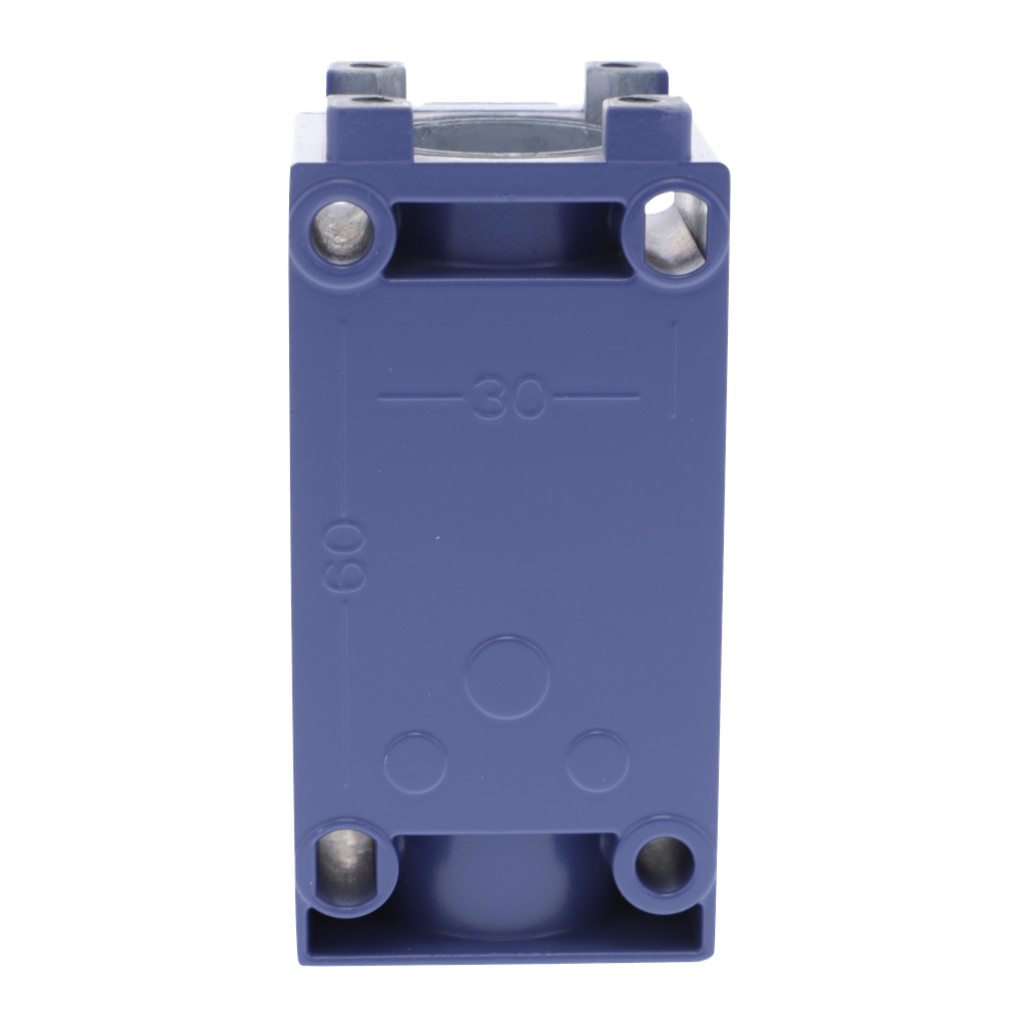

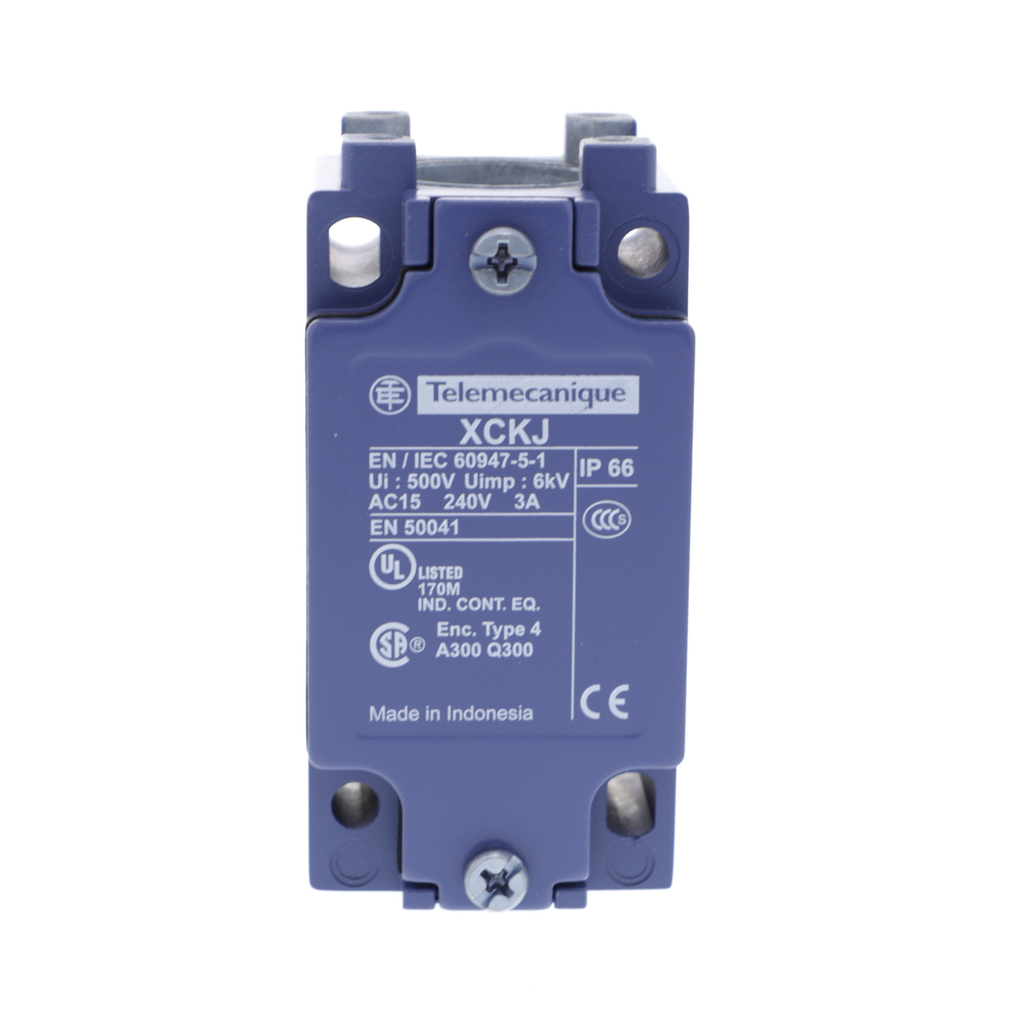

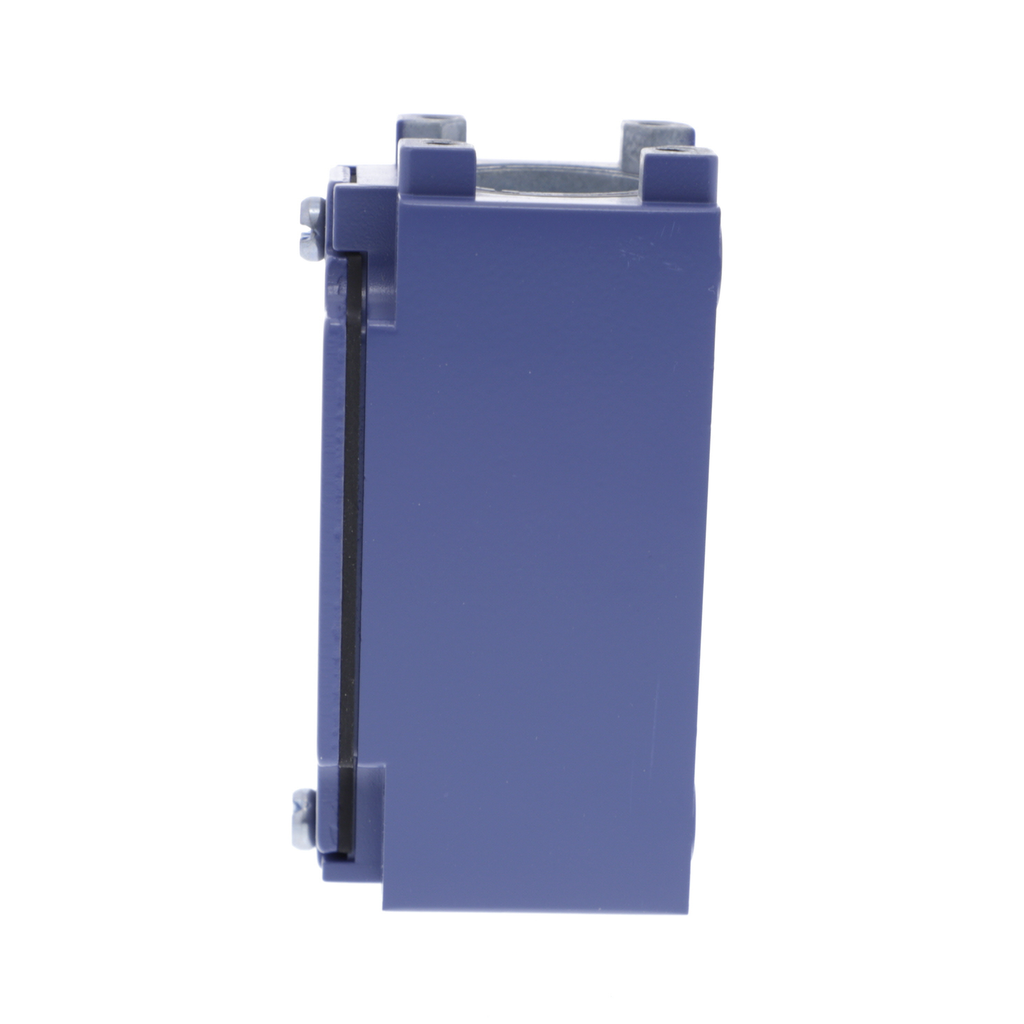

TES ZCKJ5H29 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, slow break, M20

Manufacturer: TES Electric | Catalog # ZCKJ5H29 | Cooper Electric Part # 1632881
$66.64/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and a M20 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Technical Information

Action
Slow-break, break before make
Amperage
10 Amp
Applications
XCKJ
Body Material
Metal
Body Type
Fixed
Cable Entry
1 entry tapped for M20 x 1.5 cable gland
Contact Configuration
1 NC + 1 NO
Contact Material
Silver Plated Contacts
Enclosure
IP66
Net Weight
0.31 kg
Number of Poles
2 Pole
Number of Steps
1 1
Operating Cycles
5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C STANDARD ENVIRONMENT-10-120 Adegrees C HIGH TEMPERATURE--40-70 Adegrees C LOW TEMPERATURE
Size
1.73 in
Storage Temperature
-40-120 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.5...2 X 2.5 MMA
Type
Limit switch body
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Manufacturer Information

Brand
Telemecanique
Sub Brand
ZCKJ

General Product Info

12-Digit UPC
785901644910
Environmental Conditions
LOW TEMPERATURE-STANDARD ENVIRONMENT-HIGH TEMPERATURE
GTiN
03389110833614
Product UPC
78590164491

Dimensions

Depth
44 mm
Height
77-77 mm
Warranty Length
18 mth
Width
40 mm
