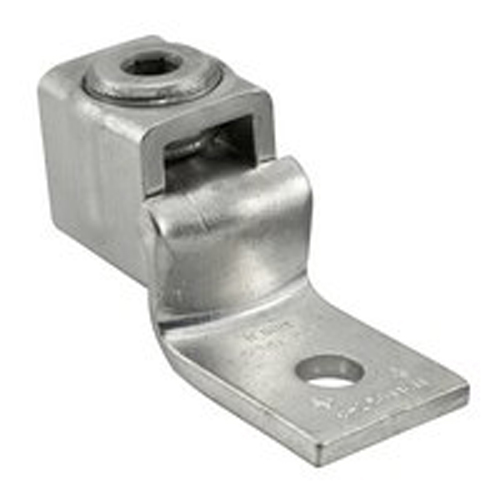

Product image for ILSCO SLUH-35 UL CSA 13/64 Inch 6 to 14 AWG Copper Mechanical Lug
Image thumbnail 0
Image thumbnail 1
Email

ILSCO SLUH-35 UL CSA 13/64 Inch 6 to 14 AWG Copper Mechanical Lug

Manufacturer: Ilsco | Catalog # SLUH-35 | Cooper Electric Part # 163206
$9.05/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Mechanical Heavy Duty Lug, One Conductor, Mechanical connection, Copper material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 6 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, flex conductor range 8 H, 8-10 I, 8-14 G,K,M,DLO, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
Mechanical Heavy Duty Lug, One Conductor
Conductor Material
Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.203 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
CSA,E2186,UL
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
Heavy Duty
Voltage
35 Volt

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669839739
Color
Copper
Finish
Tin Plated
GTiN
00783669839739
Product UPC
78366983973
Weight
1.603 lb

Dimensions

Height
0.731 Inch
Length
1-1/8 Inch
Width
0.435 in
