Erico 548601 Low Voltage Insulators, Metric Thread, 2.362", 55 mm Hex Width, M12 Thread

Manufacturer: Erico, Inc | Catalog # 548601 | Cooper Electric Part # 1628244
$22.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

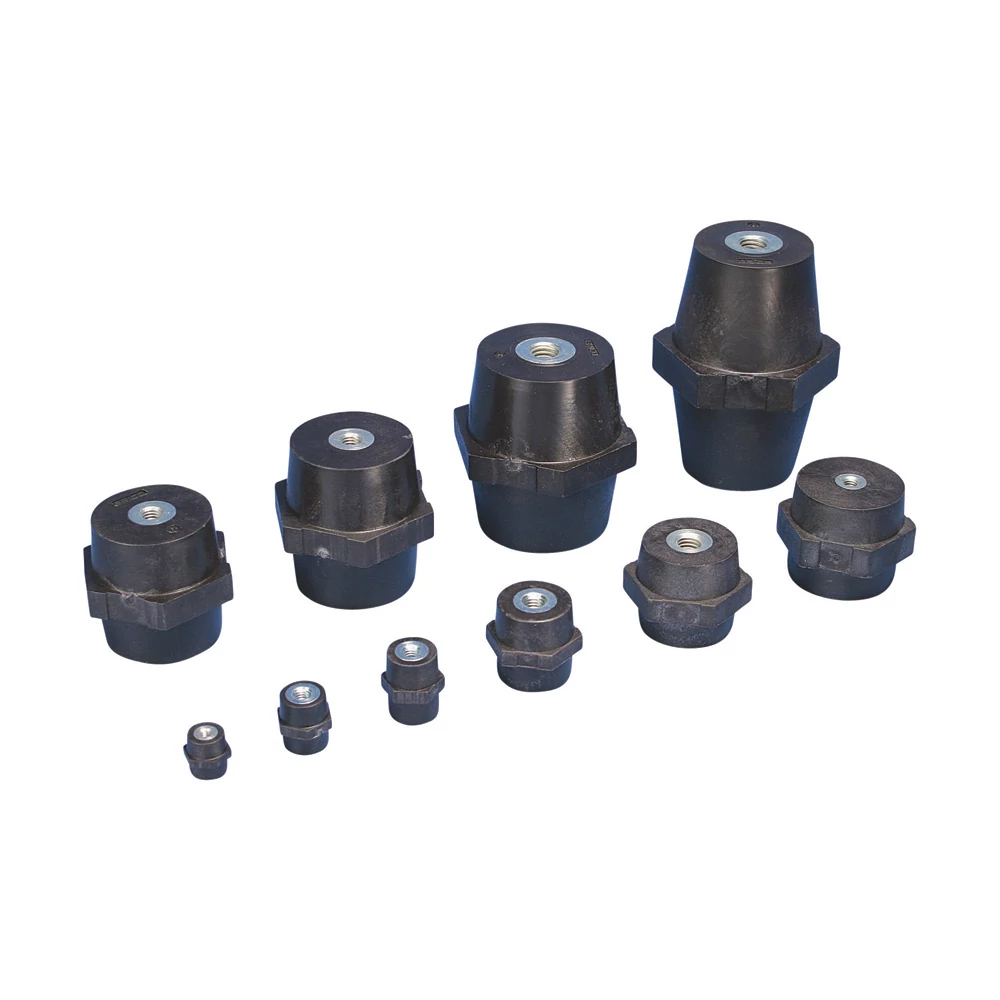

Low voltage electrical insulator. ISOTP60M12, Metric Thread, 2.362" (60 mm), 55 mm Hex Width, M12 Thread.

Technical Information

Applications
Power Connections; Grounding and Bonding
Material
Steel
Rated Insulation Voltage
1,000
Thread Size
M12
Type
Low Voltage Insulators

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856667988
Finish
Electro Galvanized
GTiN
00782856667988
Product UPC
78285666798
Weight
0.36 kg

Dimensions

Depth
63-63
Diameter
1.73-1.73
Height
60-60
Certifications
  • UR ANSI/UL 67, ANSI/UL 891
  • CSA-Comp CSA C22.2 No. 29
  • cUR CSA C22.2 No. 29, CSA C22.2 No. 244
  • IEC 61439-1 IEC 61439-1 (2017)
  • CE, ERIFLEX ISOTP EN 61439
Features
  • Halogen free
  • High resistance to leakage current
  • Great stability of electrical and mechanical parameters
  • Fiberglass reinforced
  • UL® Recognized in E125470 and evaluated for dielectric withstand rating of 1,500 VAC/DC
  • RoHS compliant
