ABB RB147PT INS NYLON PIN TERM 12-1

Manufacturer: ABB | Thomas & Betts | Catalog # RB147PT | Cooper Electric Part # 162793
$162.35/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

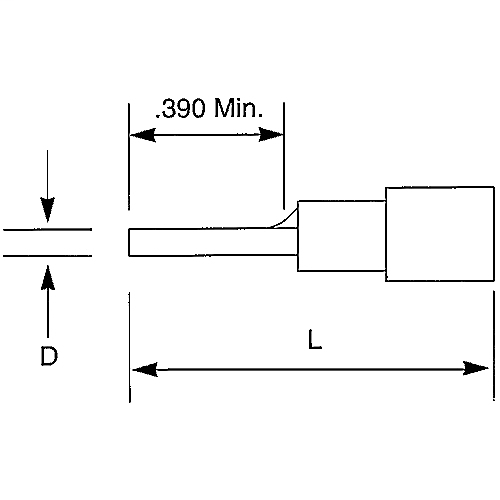

Nylon Insulated Pin Terminal, Length .87 Inches, Pin Length .390 Inches, Diameter .075 Inches, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Conductor Size
12-10 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
300 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210034218
Color
Blue
Finish
Electro Tin Plated
GTiN
05414363077459
Product UPC
78621003421

Dimensions

Length
0.87 Inch
Features
  • Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers. (I.e. 12050 tool and application dies).
