3M 8427-12 Cold Shrink Connector Insulators

Manufacturer: 3M | Catalog # 7000005943 | Cooper Electric Part # 16263
$122.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet
Quick and easy installation, no special tools and no heat requiredSeals tight, retains resiliency and pressureAccommodates a wide range of cable sizesResists acids, alkalis and ozoneNo mastic or tape required to seal

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Cable Type
Power Cable
Conductor Material
Aluminum,Copper
Conductor Size
125-200 mm
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Shielding Type
Non-shielded,Tape Shield,UniShield®,Wire Shield
Size
250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Packaging

Units Per Case
10

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007344599
Color
Black
GTiN
00054007344599
Product Type
Splice
Product UPC
05400734459

Dimensions

Length
12 Inch
Overall Length
12.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • DESIGNED FOR PRIMARY INSULATION: For use with solid dielectric insulated wires and cable splicing rated to 1000 volts
  • QUICK, EASY INSTALLATION: Simple installation which requires no tools

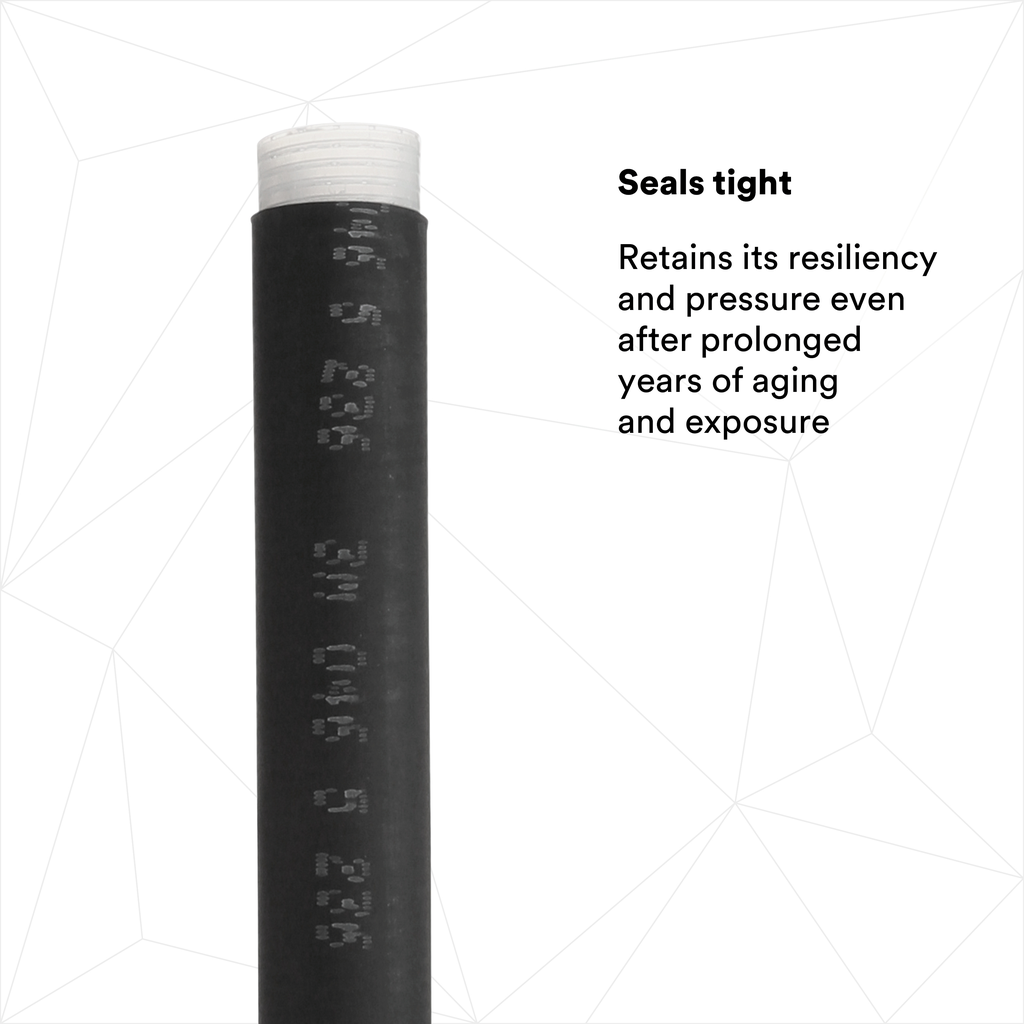

  • SEALS TIGHT: Retains its resiliency and pressure even after prolonged years of aging and exposure
  • TOUGH EPDM RUBBER FORMULATION: Withstands backfilling, for indoor and outdoor use, direct burial and submersible

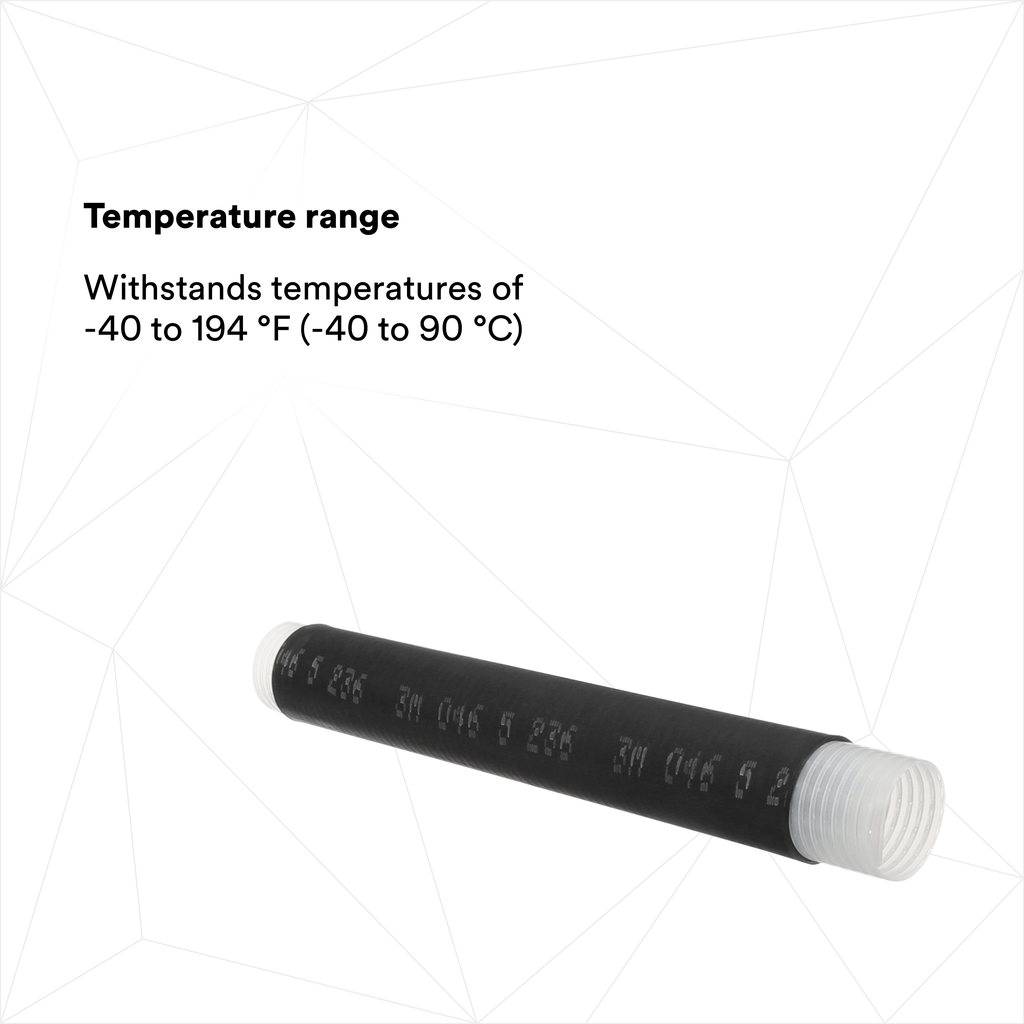

  • TEMPERATURE RANGE: Withstands temperatures of -40 to 194 °F (-40 to 90 °C)

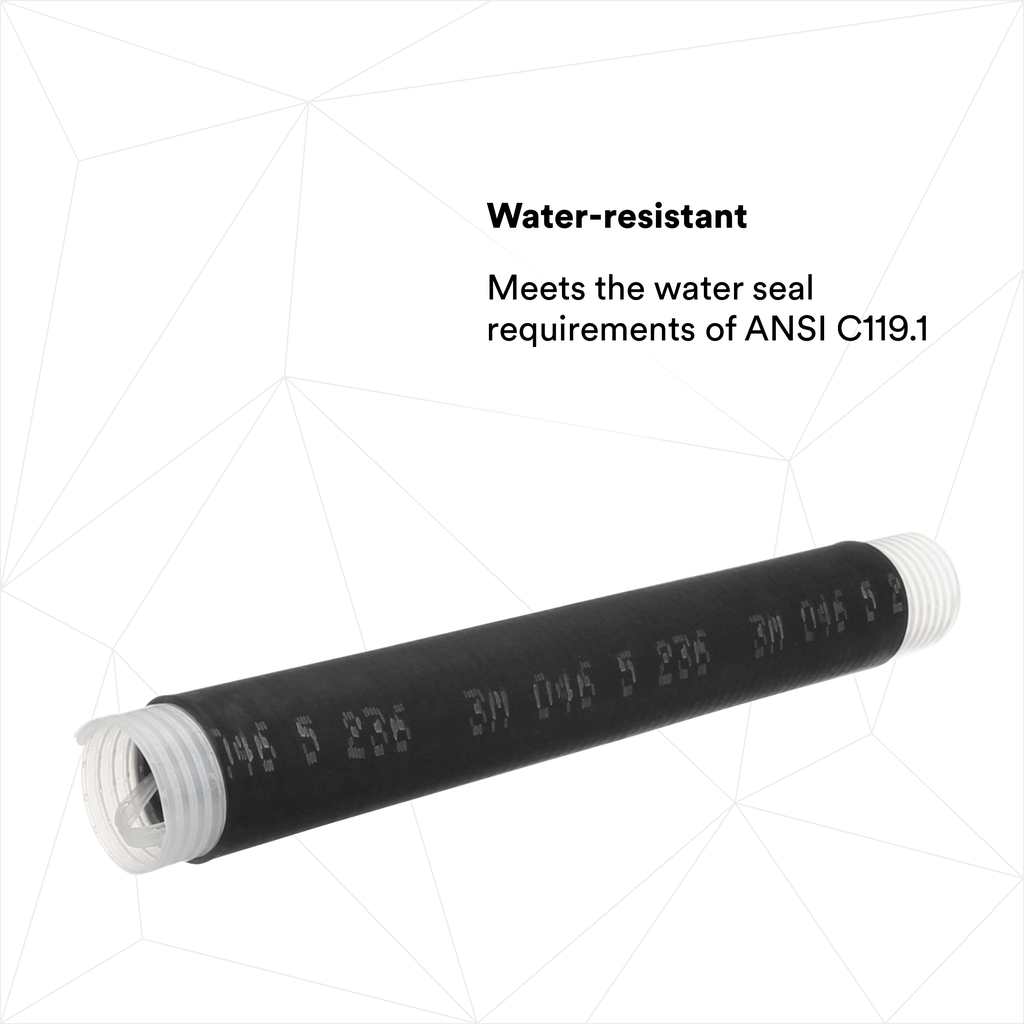

  • WATER-RESISTANT: Meets the water seal requirements of ANSI C119.1
