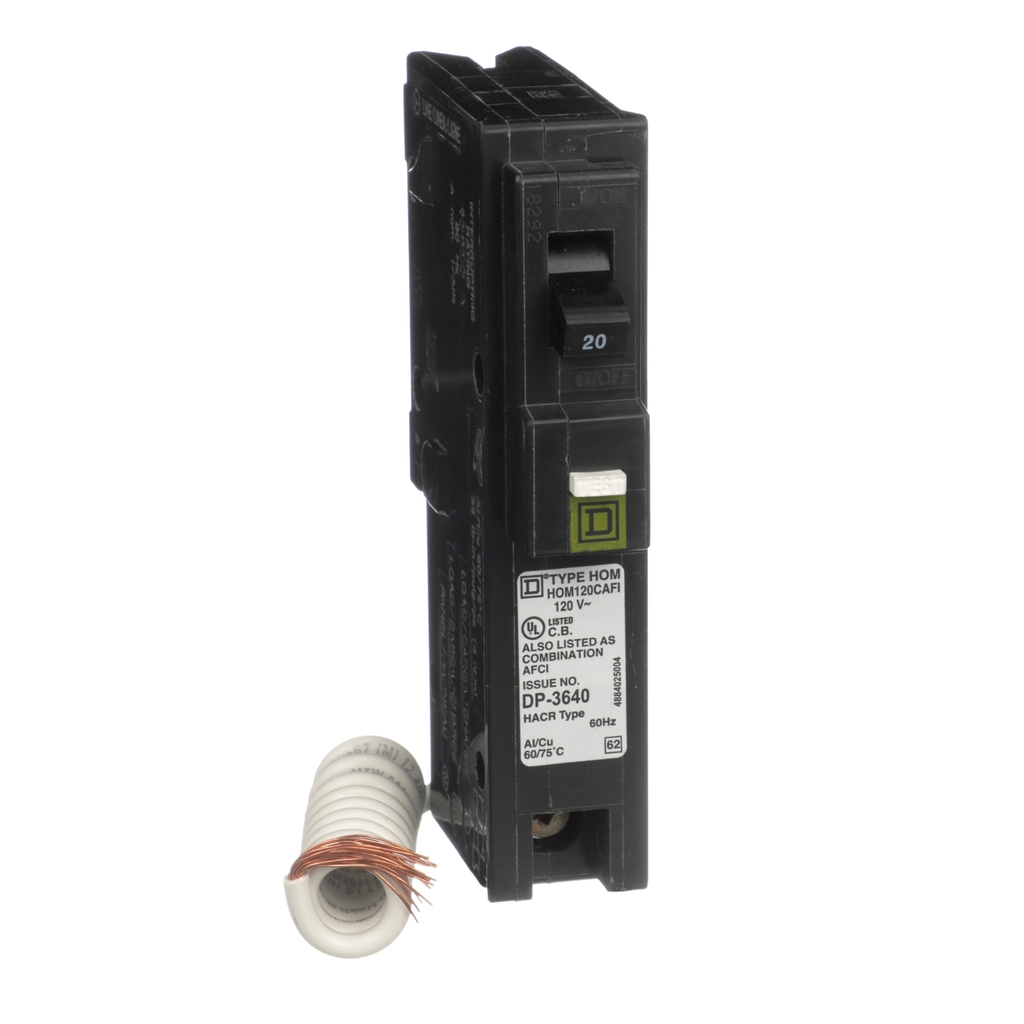

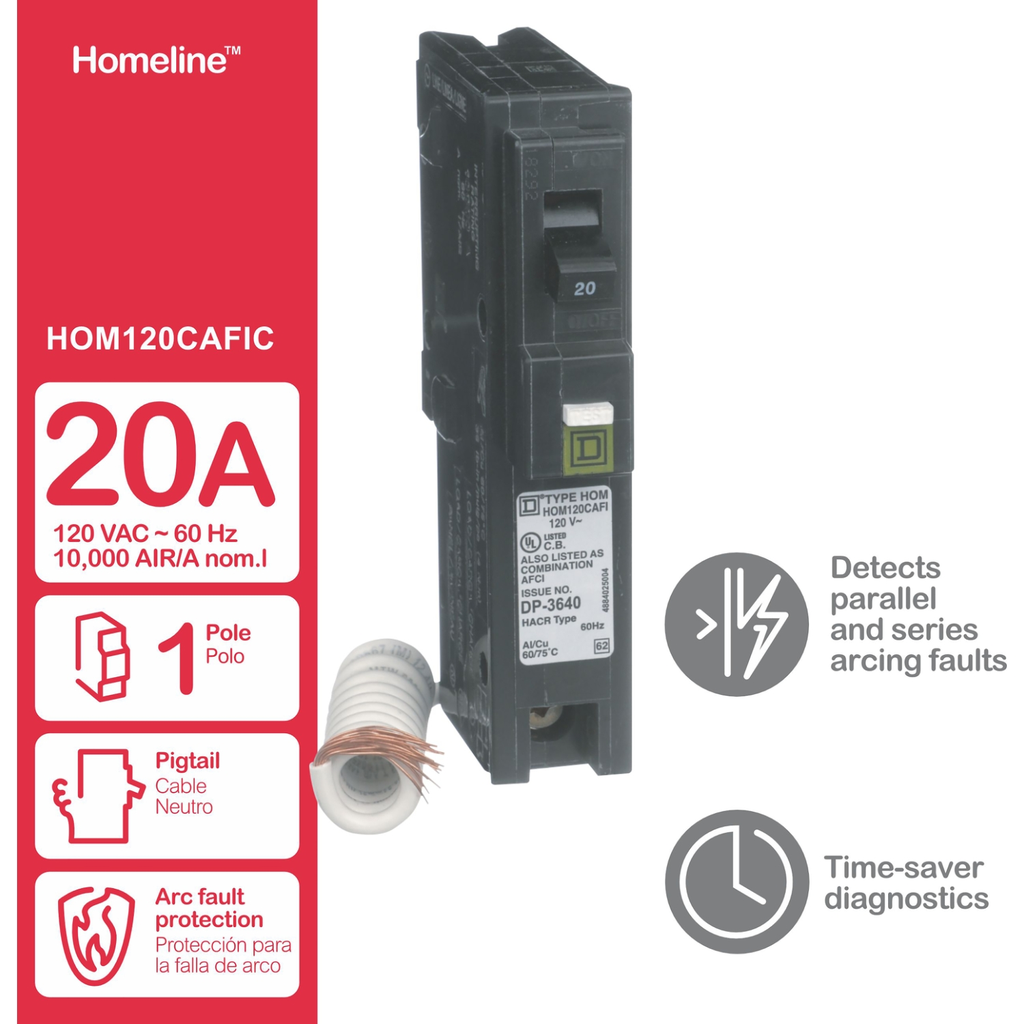

SQD HOM120CAFIC Mini circuit breake

Manufacturer: Square-D / Schneider | Catalog # HOM120CAFIC | Cooper Electric Part # 1625824
$201.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure

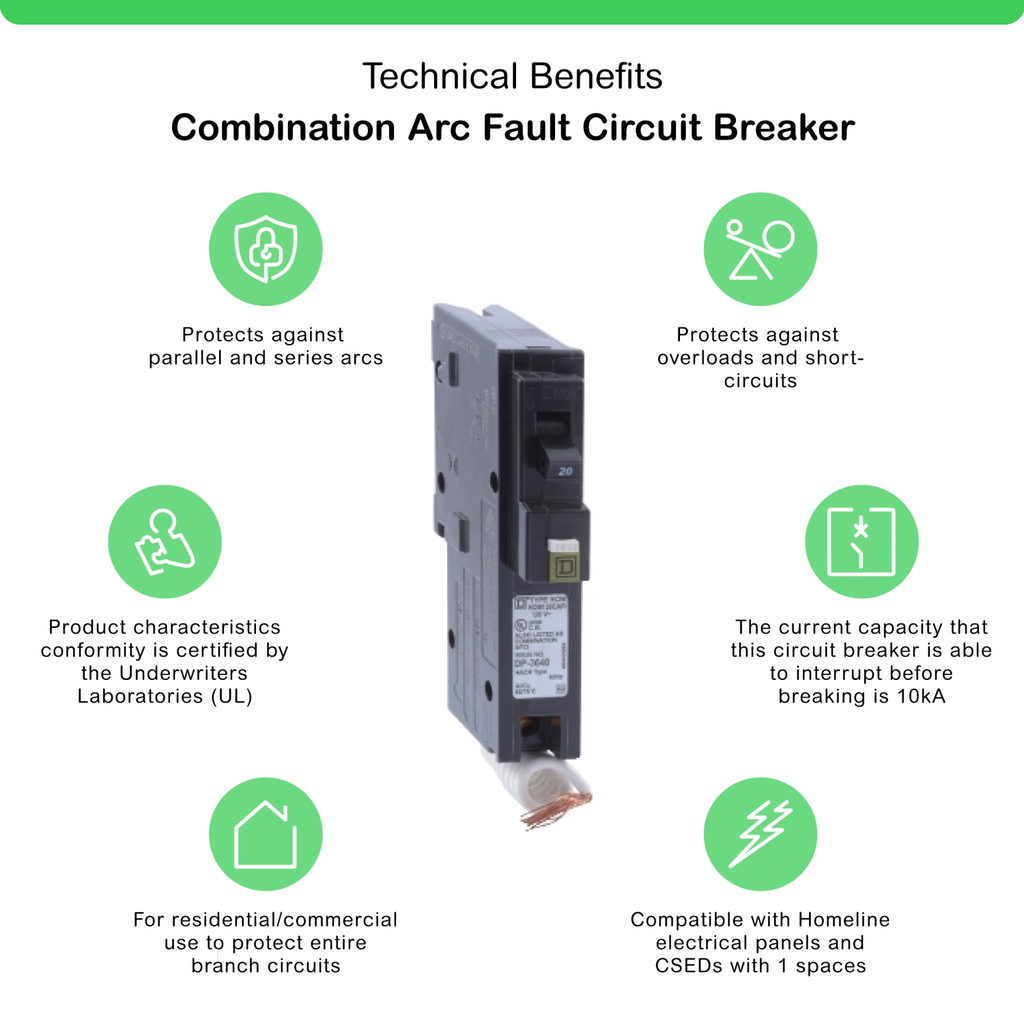

Square D® Homeline® Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection. Square D® Homeline® Circuit Breakers are designed to plug into Homeline® Load Centers® to provide circuit protection. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. Comes in clam packing.

Technical Information

Amperage
20 Amp
Applications
HACR rated
Circuit Breaker Type
Combination ARC-fault
Current
20 Amp
Interrupt Rating
10 kAIC
Line Rated Current
20 A
Mounting Type
Plug-In
Net Weight
0.30 kg
Number of Poles
1 Pole
Number of Spaces
1 NULL
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
Clamp terminal for 2 cables;AWG 14...AWG 8 aluminium/copper)1 ;AWG 14...AWG 10 copper)2 ;Pigtail neutral
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901477150
GTiN
00785901477150
Product UPC
78590147715
Weight
0.30 kg

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
Lifetime
Width
1 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
