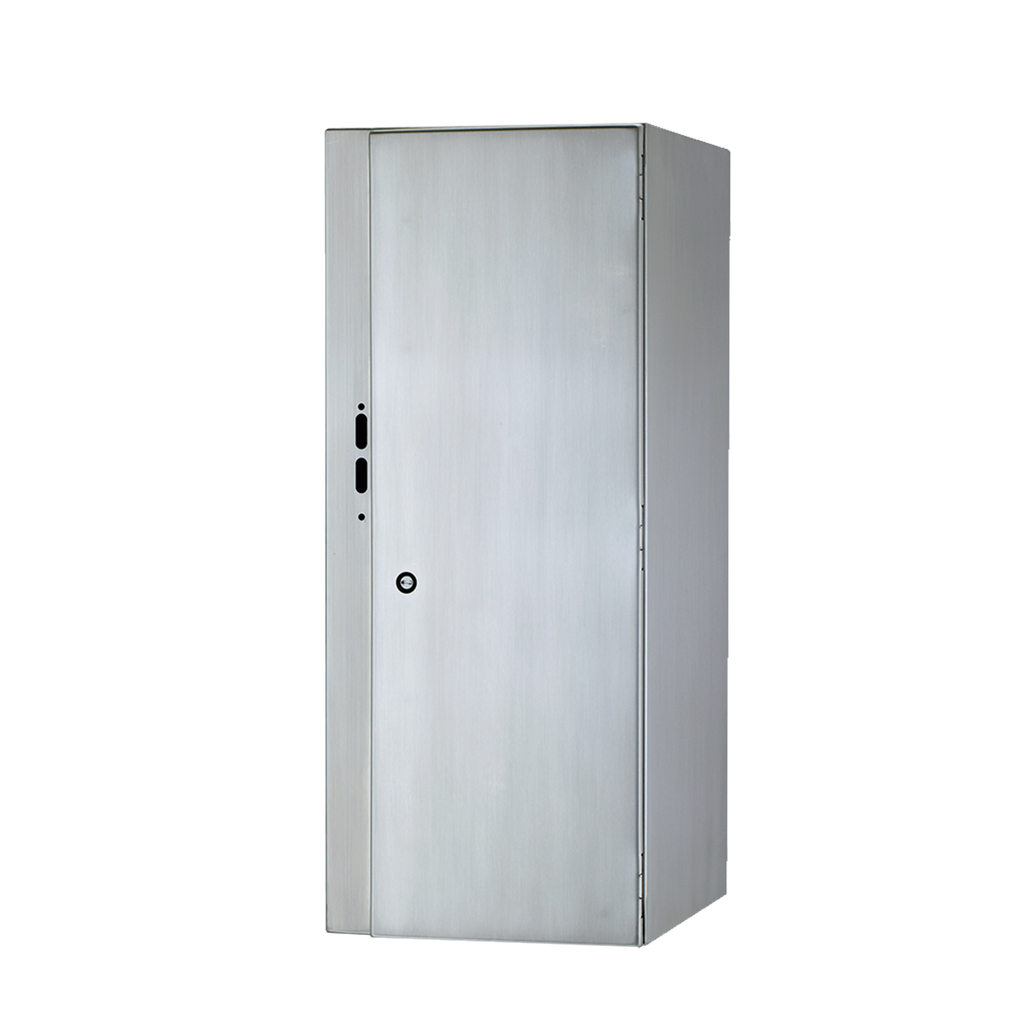

Hoffman AXD20SS Sequestr, Retrofit External Disconnect, 4X, 20" Deep, SS 304

Manufacturer: Hoffman | Catalog # AXD20SS | Cooper Electric Part # 1625817
$4,090.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Retrofit disconnect enclosures to isolate incoming power and help mitigate arc flash occurrences by moving the disconnect switch to the Sequestr Enclosure. Power is passed-through to the main enclosure.

Technical Information

Applications
Controls and Drives; Corrosive Environments; Arc Flash Safety
Material
Stainless Steel
Size
20" Deep Retrofit Kit in
Type
Stainless Steel Freestanding Industrial Disconnect Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Sequestr

General Product Info

12-Digit UPC
783510171858
Color
Unpainted
Finish
Brushed
GTiN
00783510171858
Product UPC
78351017185
Weight
87.8 lb

Dimensions

Depth
20.12 Inch
Height
34.45 Inch
Length
17 Inch
Thickness
1.9 mm
Width
14 in
Features
  • Interlocks with doors of main control cabinet when the disconnect switch is powered ON
  • Maintains UL Type 4X rating
  • Provision for pass-through power into the main cabinet - blank plate for customer modification
  • Preferred disconnect cutout
  • Quarter-turn screwdriver slot and 3-point latch
  • Hidden hinges
  • Bonding provision on door
  • Conductive back panel included
  • Installation hardware and templates included
  • Continuously welded and ground seams all around
  • Hinged on right side
