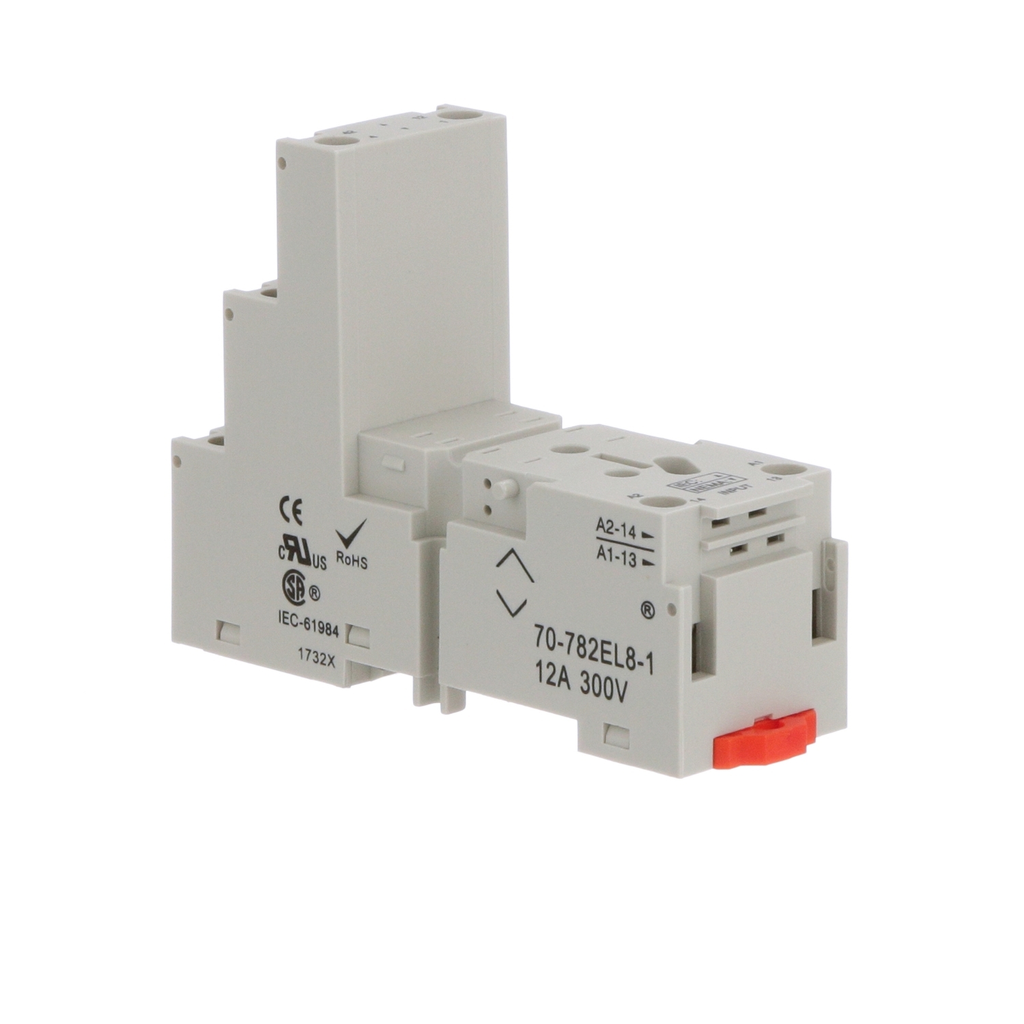

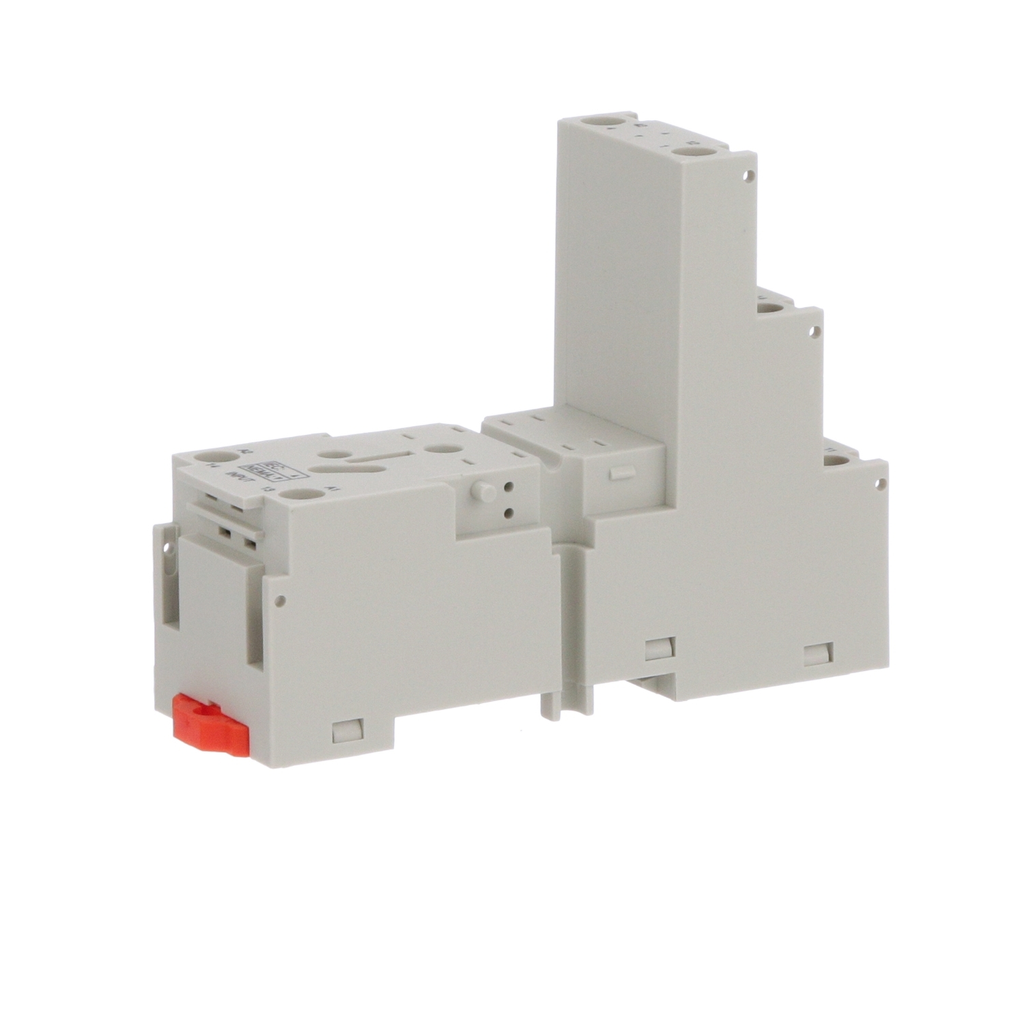

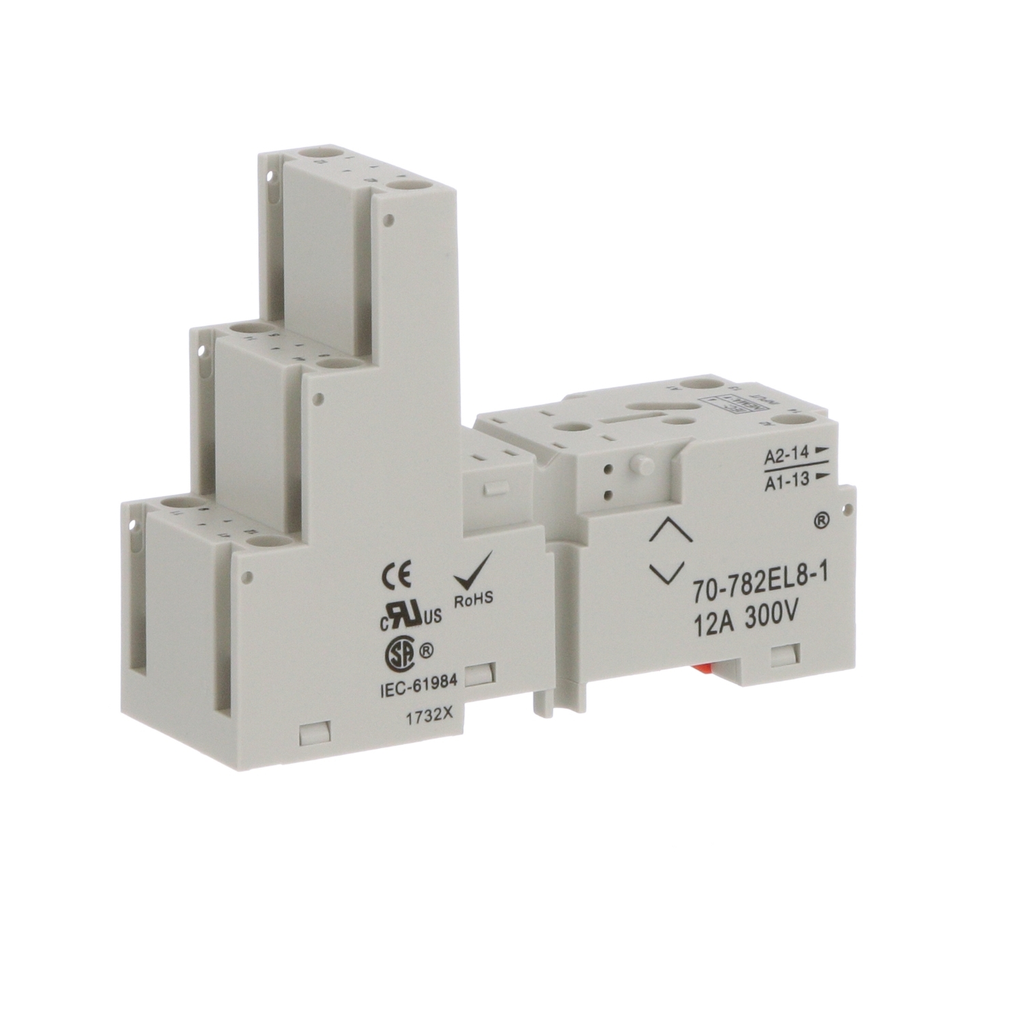

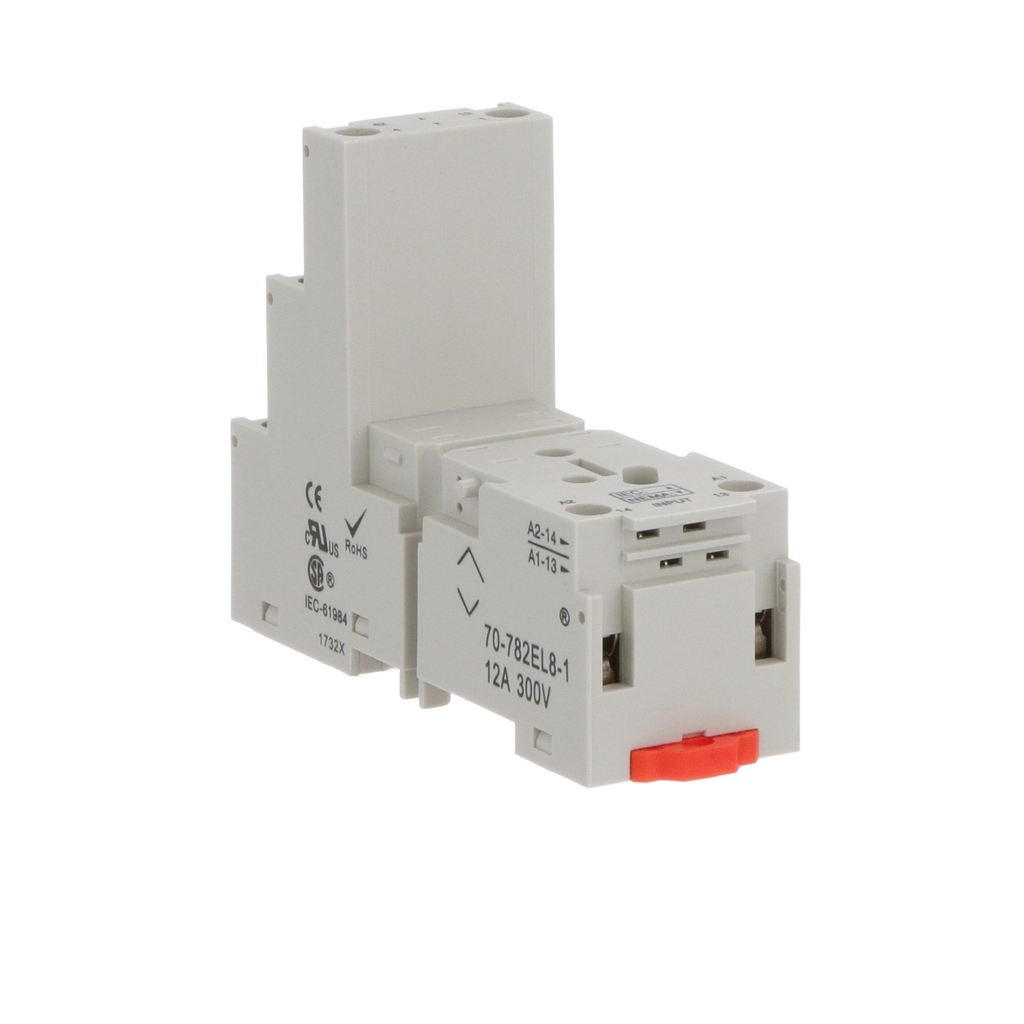

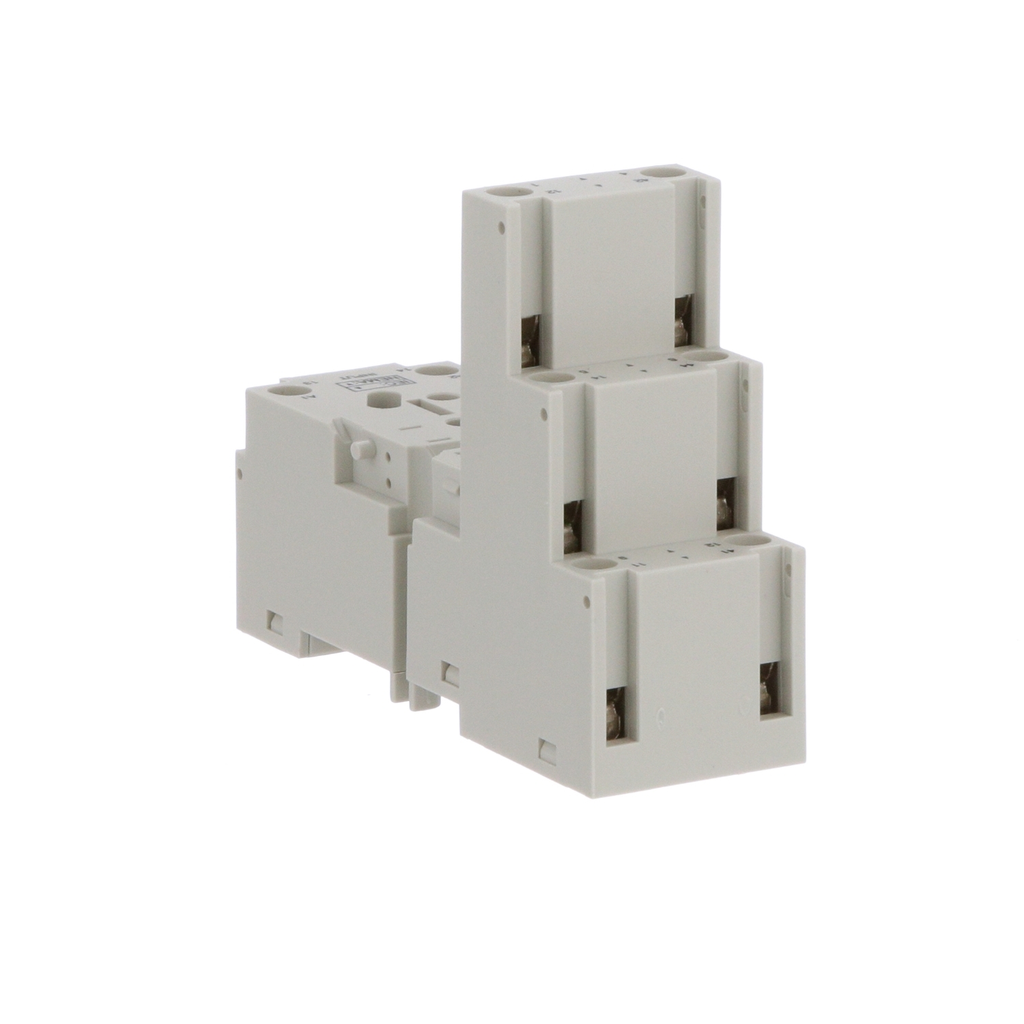

SQD 70-782EL8-1 Socket, SE Relays g

Manufacturer: Square-D / Schneider | Catalog # 70782EL81 | Cooper Electric Part # 1625418
$6.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Legacy general purpose relay series accessory , optional socket for 782R series relays with DPDT configuration contacts rated 12A at 300V. Lift connect terminals 8 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Technical Information

Current
12 Amp
Line Rated Current
12 A
Net Weight
46 g
Number of Terminations
8
Operating Temperature
-40-55 degrees C
Storage Temperature
-40-105 degrees C
Voltage
300 Volt

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901158035
GTiN
03606480278150
Product UPC
78590115803
Weight
46 g

Dimensions

Depth
79 mm
Width
26.9 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • TDR782XBXA-24D
  • 70-BSMD-250
  • 792XBXM4L-120A
  • 792XBXM4L-24A
  • 792XBXM4L-24D
  • 16-700DIN
  • 16-DCLIP-1
