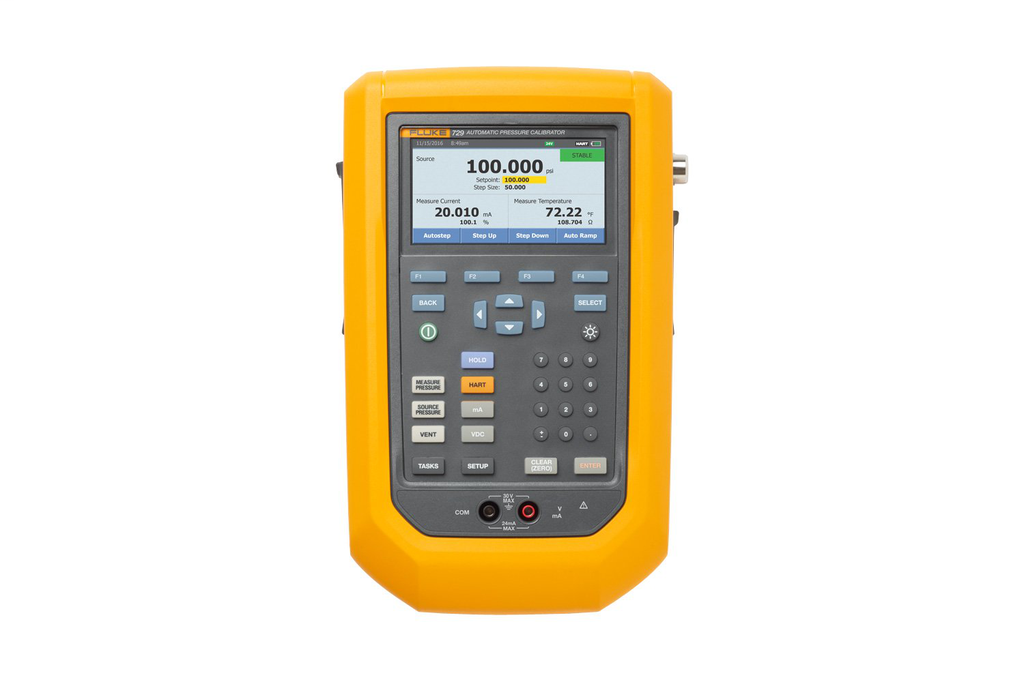

Product image for FLK FLK-729/150G FUK-729 150 PSI AU
Image thumbnail 0
Image thumbnail 1

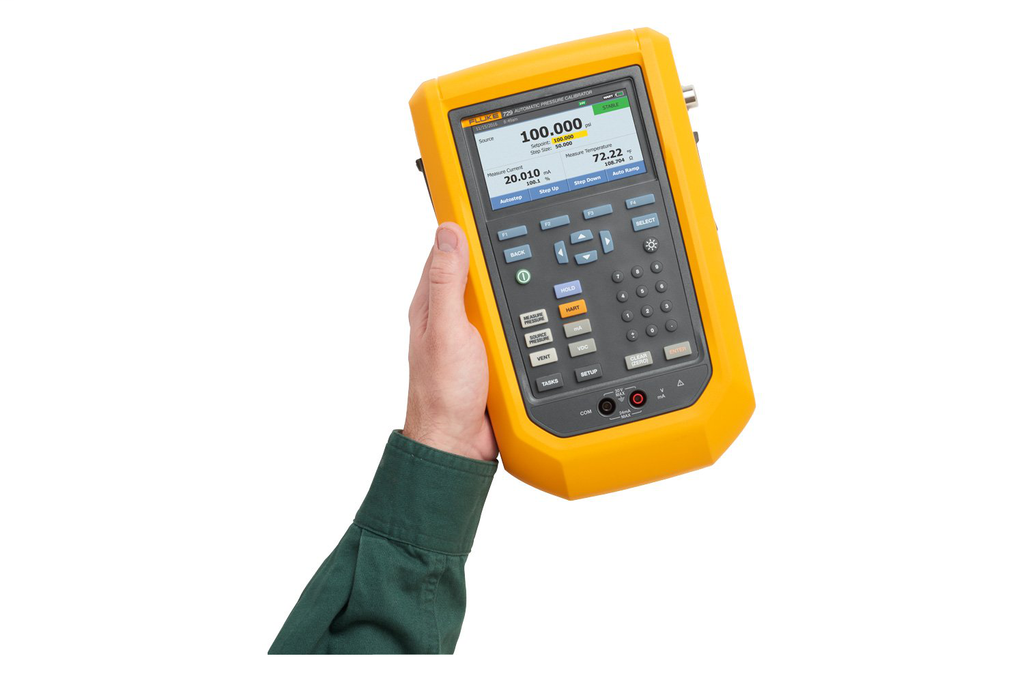

Image thumbnail 2
Email

FLK FLK-729/150G FUK-729 150 PSI AU

Manufacturer: Fluke | Catalog # FLK-729/150G | Cooper Electric Part # 1621503
$12,683.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The new 729 150G, 150 PSI Automatic Pressure Calibrator is a state-of-the-art enhancement of the popular 718 and 719 pressure calibrator families. The key performance feature that sets the 729 apart and makes it special for end users is the ability to type in a test pressure and the 729 pumps and regulates the pressure as requested. This is vastly more simple and efficient than manual pumping and adjustments. Further, pressure calibration tasks can be configured or downloaded from DPCTrack2 for automated testing. If the 729 is testing a HART smart pressure transmitter the 729 has HART communication functionality built in to enable the user to perform adjustments and do light configuration.

Technical Information

Accuracy
23 C
Applications
Provides Loop Power and simultaneously measures mA output from connected device
Operating Temperature
-10 To 50 degrees C
Storage Temperature
-40 To 60 degrees C
Type
Pressure Calibrator

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969840415
GTiN
00095969840415
Product UPC
09596984041
Weight
6.5 lb
Product Overview
  • The Fluke 729 Automatic Pressure Calibrator has been designed specifically with process technicians in mind to simplify the pressure calibration process and provide faster, more accurate test results. Technicians know that calibrating pressure can be a time-consuming task, but the 729 makes it easier than ever with an internal electric pump that provides automatic pressure generation and regulation in an in an easy-to-use, rugged, portable package.
  • Portable automatic pressure calibrator simplifies pressure calibration
  • Built-in HART communication capabilities enable HART transmitter mA adjustments, light HART configuration and the ability to adjust to applied 0% and 100% values.
  • Upload and manage documented calibration results with DPCTrack2™ Calibration Management Software, making it easy to manage your instrumentation, create scheduled tests and reports, and manage calibration data.
  • The Fluke 729 can also automatically test multiple pressure test points and automatically document the results. Calibration is as easy as typing in the starting and ending pressure and the number of test points and tolerance level. The 729 does the rest.
  • The ideal portable pressure calibrator, the 729 allows you to simply type in a target pressure, and the calibrator will automatically pump to the desired set-point. Then, internal fine adjustment control automatically stabilizes the pressure at the requested value.
  • With three ranges to choose from, 30 psi (2 bar, 200 kPa), 150 psi (10 bar, 1 MPa) and 300 psi (20 bar, 2 MPa), Fluke 729 Automatic Pressure Calibrators are designed to perform when and where you need them.
Key Features
  • Measure Vdc for testing 1 V dc to 5 V dc output transmitters
  • Compatible with 700 Series and 750 Series pressure modules
  • Built-in leak testing for verifying test setups for leakage
  • Measure temperature with optional 720RTD probe for performing custody transfer calibrations.
  • Upload documented test results to DPCTrack2™ Calibration Management Software
  • Innovative semi-rigid carrying case designed for field work
  • HART communication enables mA output trim, trim to applied values and pressure zero trimming of HART pressure transmitters. You can also do light configuration tasks such as changing a transmitter tag, measurement units and ranging. Other supported HART commands include setting fixed mA outputs for troubleshooting, read device configuration and variables and read device diagnostics.
  • Measure, source and simulate 4 to 20 mA signals
  • Measure mA signals on transmitter outputs, source and simulate mA signals for testing I/Ps and other mA loop devices. Includes a 24V loop power supply for testing and powering transmitters in standalone tests disconnected from the control system.
  • Rugged portable design with standard 3-year warranty
  • Automatic pressure generation and regulation to 300 psi
  • Easily document the process using onboard test templates
  • Measure pressure with legacy 700 Series and the 750 Series pressure modules, if different pressure measurement ranges or resolution is desired.
  • Multiple language support: select language from the instrument setup utility. Hart communication commands are limited to English per the HART device descriptors and protocol.
  • Fluke Connect® compatibility enables a user to perform remote monitoring using the Fluke Connect mobile app and also manage and store pressure measurements and logging events. Share measurements using ShareLive™ video calls and emails.
  • 24V loop power for powering transmitters for tests
  • Semi-rigid carrying case designed for field work, with room in the case to store test hoses, fittings, test leads and small hand tools needed for field pressure calibrations.
  • Automatic internal fine-pressure adjustment
  • Rugged portable design and 3-year warranty set the 729 apart from most other pressure calibrators. The 729 is tested and warranted to withstand a 1-meter drop test so it is ready for field instrumentation calibration work.
  • Bright dual/triple-channel color graphical display
  • Automatic internal fine pressure adjustment helps compensate for minor leaks in hoses and test setups. No need to manually turn a vernier to compensate for leaks helping to eliminate the hassle of manual pumping and manual fine adjustment of test setups.
  • Automatic pressure generation and control to 300 psi (20 bar, 2 MPa). Enter a pressure and the 729 automatically pumps to the desired pressure. Fill in a test template and the 729 will automatically pump to and document a multiple-point pressure calibration test.
  • Easy calibration documentation using defined templates for transmitters and switches. Type in the starting and ending test pressures and number of test points. The 729 does the rest by documenting the applied pressure, measured mA and % error for each test point. The bright color graphical display will flag out-of-tolerance test results in red.
  • Fluke Connect® App compatibility
  • HART communication for testing HART smart transmitters
  • Measure temperature with optional 720RTD probe
Pressure Specification*
  • One-year specification 0.02% of full scale
  • Control specification 0.005% full scale minimum
  • See manual for detailed specifications
Additional Features
  • All specifications are valid to 110% of range, except 24 mA source and simulate which are valid to 100% of range.
