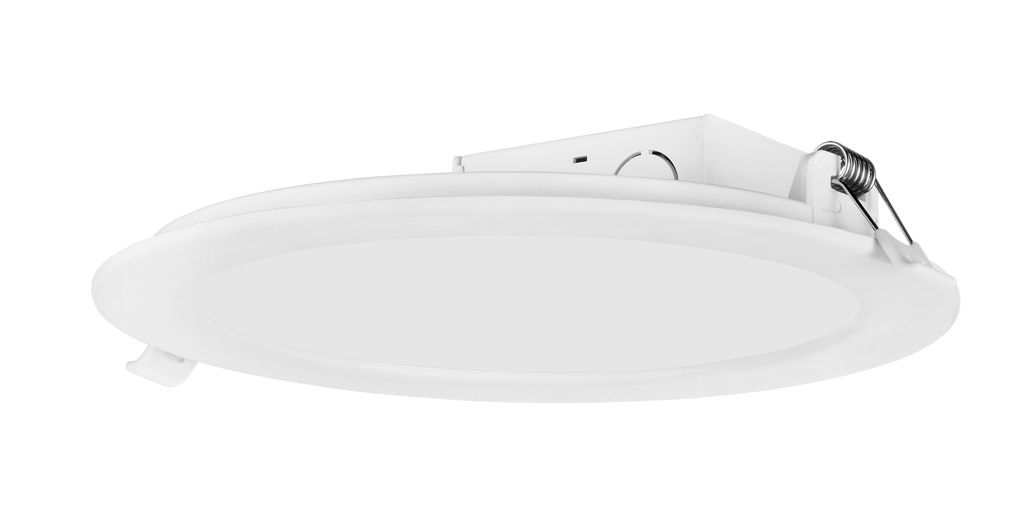

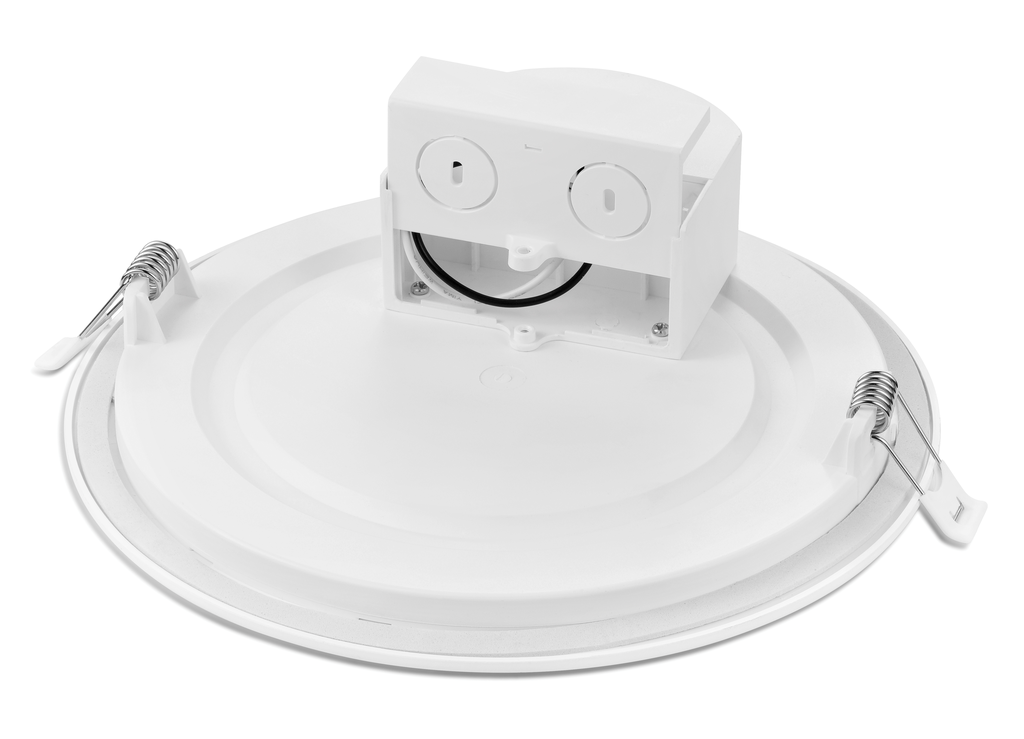

Product image for Satco S11716 18 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 2700K; 120 volt; Dimmable
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Satco S11716 18 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 2700K; 120 volt; Dimmable

Manufacturer: Satco | Nuvo | Catalog # S11716 | Cooper Electric Part # 1620940
$43.38/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
18 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 2700K; 120 volt; Dimmable

Technical Information

Average Rated Life
40000 hr
Ballast Type
Self
Beam Angle
100
Beam Spread
100
Color Accuracy
90
Color Rendering Index
90
Color Temperature
Warm White
Correlated Color Temp
2700 K
Dimmable?
Yes
Incandescent Equivalent
85 W
Indoor Outdoor
Indoor
Lamp Type
LED
Lumens
1,300 Lumen
Material
Polyamide,Polybutylene Terephthalate,Polycarbonate
Number of Lamps
1
Operating Frequency
50 Hz
Operating Temperature
-20 degrees C
Power Factor
0.96
Style
Utility
Technology Type
LED
Type
Direct Wire LED Downlight
Voltage
120 Volt
Wattage
18 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923117169
Color
Opaque White
Finish
White
Fixture Type
Round
GTiN
00045923117169
Product UPC
04592311716
Shape
Round
Weight
0.88 lb

Dimensions

Diameter
8.69 Inch
Height
2 Inch
Length
8.69 Inch
Warranty Length
5 yr
Width
8.69 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
China
Features
  • Canless recess lighting engineered for new constructions, drop ceilings, multi-level constructions and shallow ceilings.
  • Fixture dimensional specifications (in inches) Height: 2.00, Diameter: 8.69
  • Direct Wired installation; Suitable for damp locations, indoor use only
  • Integrated LED
  • 90 CRI superior quality LED light, rated for 40000 hours, for an energy efficient lighting option
  • 5 year limited warranty. See manufacturer website for details
