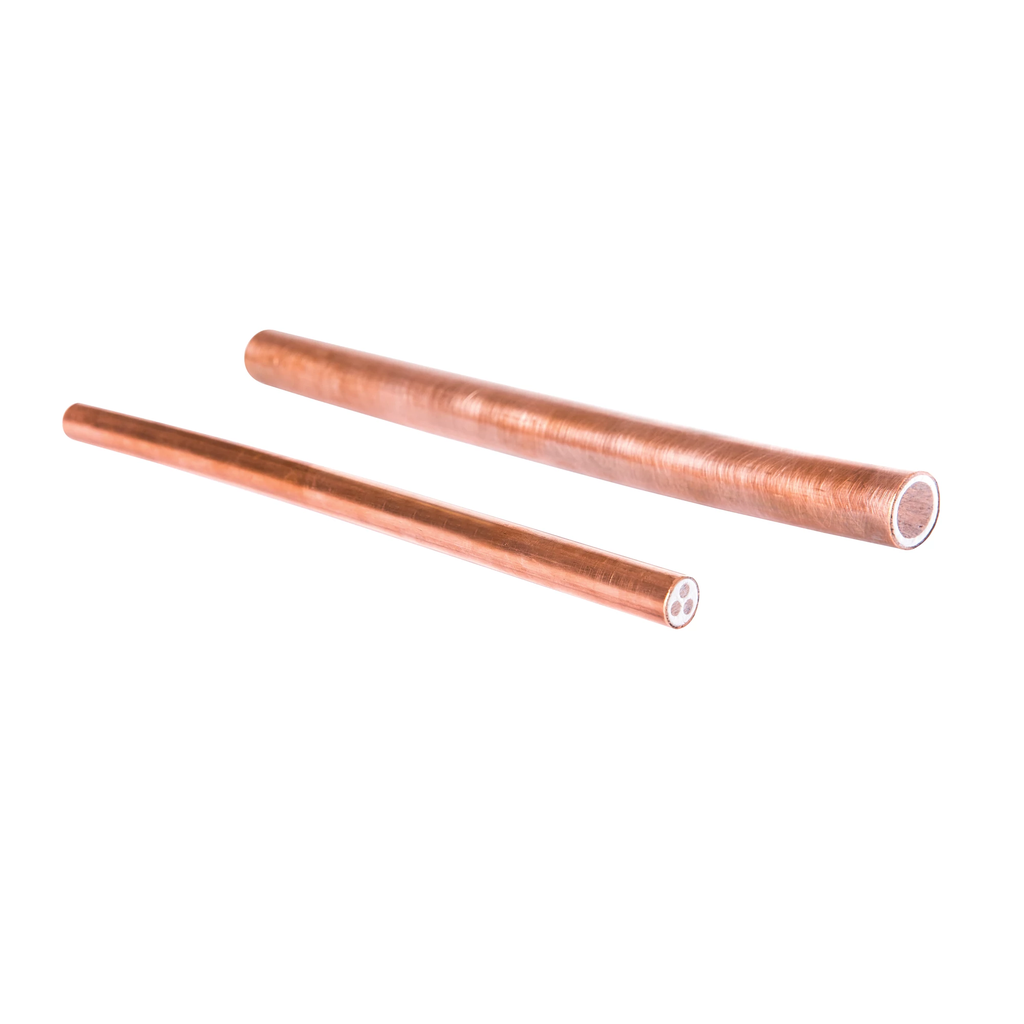

Product image for NVENT RAY 1/4-402 Single 4 AWG, .40
Email

NVENT RAY 1/4-402 Single 4 AWG, .40

Manufacturer: Raychem | Catalog # 1/4-402 | Cooper Electric Part # 1619240
$18.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
A range of (mineral insulated) MI copper sheathed 2-hour fire-rated wiring cables (System 1850). Suitable for hazardous areas. Ultimate performance: fireproof, no smoke generation, zero halogens, high mechanical strength and corrosion resistance, waterproof and non-ageing. UL fire-resistive classified, does not require additional conduit or fireproofing. UL Classified/ ULC Listed: tested to the UL 2196/ULC-S139 fire test standards. Meets requirements of an Electrical Circuit Protective System, as referred to in Articles 695 and 700 of the National Electrical Code (NEC). System 1850 appears in Electrical Circuit Integrity System (FHIT and FHIT7) of the UL/ULC Fire Resistance Directory. Complies with wet-location and LSZH requirements for transit applications as outlined in NFPA 130.

Technical Information

Amperage
125 Amp at 75 C, 140 Amp at 90 C
Applications
High-Rise Buildings, Hospitals, Historic Buildings, Tunnels and Subways For Smoke Extraction Fans, Airports, Stadiums, Hotels, Banks
Conductor Material
Copper
Core
Copper
Insulation Material
Magnesium Oxide
Number of Conductors
1
Temperature Rating
250 - 1010 degrees C
Type
Fire Rated, Unshielded
Voltage
600 Volt

Manufacturer Information

Brand
Raychem
Sub Brand
Pyrotenax

General Product Info

12-Digit UPC
715629013583
Color
Bare
Construction
Seamless Copper
GTiN
00715629013583
Jacket Material
Flame Retardant PVC
Product UPC
71562901358

Dimensions

Length
818 Foot
Outside Diameter
0.402 in
Features
  • Ultimate performance: fireproof, no smoke generation, zero halogens, high mechanical strength and corrosion resistance, waterproof and non-ageing
  • UL fire-resistive classified, does not require additional conduit or fireproofing
  • UL Classified/ ULC Listed: tested to the UL 2196/ULC-S139 fire test standards
  • Meets requirements of an Electrical Circuit Protective System, as referred to in Articles 695 and 700 of the National Electrical Code (NEC)
  • System 1850 appears in Electrical Circuit Integrity System (FHIT and FHIT7) of the UL/ULC Fire Resistance Directory
  • Complies with wet-location and LSZH requirements for transit applications as outlined in NFPA 130
  • Reliable during long life: 30 year product warranty available
