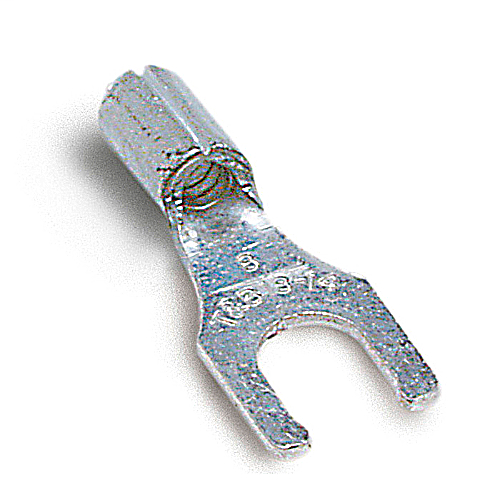

Product image for Thomas & Betts A18-8FL #8 Bolt Hole 22-16 AWG Wire Range Metallic Non-Insulated Locking Fork Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts A18-8FL #8 Bolt Hole 22-16 AWG Wire Range Metallic Non-Insulated Locking Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # A18-8FL | Cooper Electric Part # 1615816
$150.29/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Non-Insulated Locking Fork Terminal, Length .75 Inches, Width .29 Inches, Bolt Hole #8, Wire Range #22-#16 AWG, Copper, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#8
Temperature Rating
150 degrees C
Terminal Type
A
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806655
Color
Metallic
Finish
Electro Tin Plated
GTiN
00786210806655
Product UPC
78621080665

Dimensions

Height
2.2 Inch
Thickness
.03 in
Width
1.63 in
Certifications
  • UL
  • CSA
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
