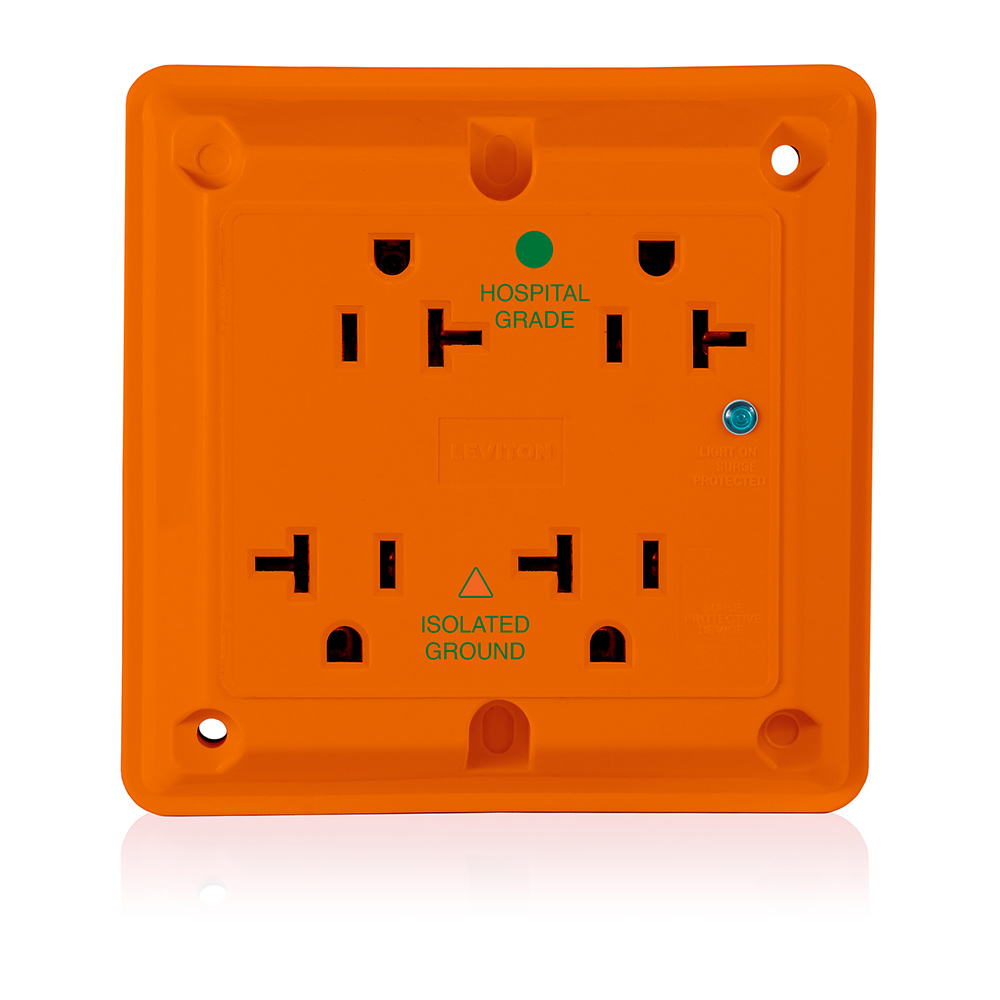

LEV 8490-IG OR TVSS REC 4-IN-1 20A1

Manufacturer: Leviton Mfg Co | Catalog # 8490-IG | Cooper Electric Part # 1612997
$106.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
4-in-1 Surge Protective Isolated Ground Quadruplex Receptacle Outlet, Heavy-Duty Hospital Grade, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire - Orange

Technical Information

Amperage
20 Amp
Applications
For Commercial Use
Body Material
Nylon
Device Type
Quadruplex Receptacle
Dielectric
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Hospital
Grounding
Isolated
Horsepower
1 hp
Indicator
Indicator Light
Material
Polycarbonate
Mounting Type
Box
NEMA
WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Short Circuit Current
5 kA
Size
4.50 W x 1.15 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Type 3 SPD, 4-in-1, TVSS
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
4-in-1 Surge Receptacles

General Product Info

12-Digit UPC
078477851494
Color
Orange
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477851494
Product UPC
07847785149

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Levitons outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
  • Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
  • Durable - Impact and chemical resistant nylon cover and base
  • Easy Installation - Termination anchor holes for easy conductor wiring
  • Reliable - 5-Year Limited Warranty
NEMA
  • 5-20R
Color Variations
  • Blue
