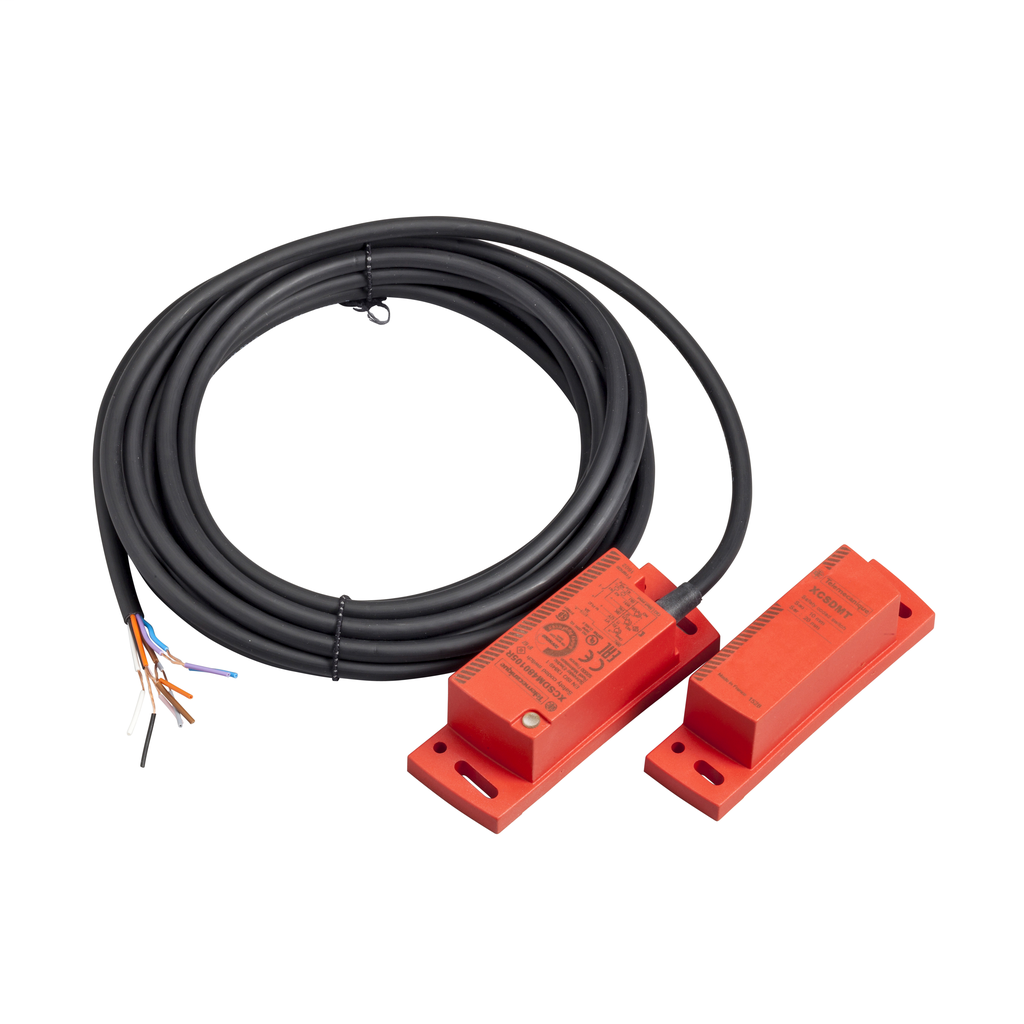

Product image for SQD XCSDM480105 Safety inter, mag.
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SQD XCSDM480105 Safety inter, mag.

Manufacturer: Square-D / Schneider | Catalog # XCSDM480105 | Cooper Electric Part # 1612737
$317.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The Preventa XCS range is an offer of safety switches. They are designed for controlling the safe opening and interlocking of guards and covers. It is a coded magnetic system with dedicated transmitter. 9 approach directions. This self-contained system does not require the use of a safety module or non-magnetic shim. It features a rectangular plastic boby, and a 5m long pre-cabled electrical connection . It has a solid-state PNP type output. It can reach SIL 3/PL equal e, category 4, with the appropriate monitoring system and correctly wired.

Technical Information

Contact Configuration
1 NO + 1 NO
Enclosure
THERMOPLASTIC PBT
Enclosure Material
Thermoplastic
Material
Plastic
Operating Temperature
-25-70 Adegrees C
Size
100 MM,100 X 34 X 32 MM,32 MM,34 MM
Standard
EN 13849-1,EN/IEC 60947-5-1,EN/IEC 60947-5-2,EN/IEC 60947-5-3,EN/IEC 62061,IEC 61508,ISO 14119
TC Connection
PRE-CABLED
Type
CODED MAGNETIC SYSTEM
Voltage
24 Volt

Manufacturer Information

Brand
Preventa
Sub Brand
XCSDM4

General Product Info

12-Digit UPC
785901830412
GTiN
03389118307315
Product UPC
78590183041
Weight
1.06 lb

Dimensions

Cable Length
16.40 ft
Chain Cable Diameter
0.24 in
Depth
1.26 Inch
Height
3.94 Inch
Warranty Length
18 mth
Width
1.34 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
France
