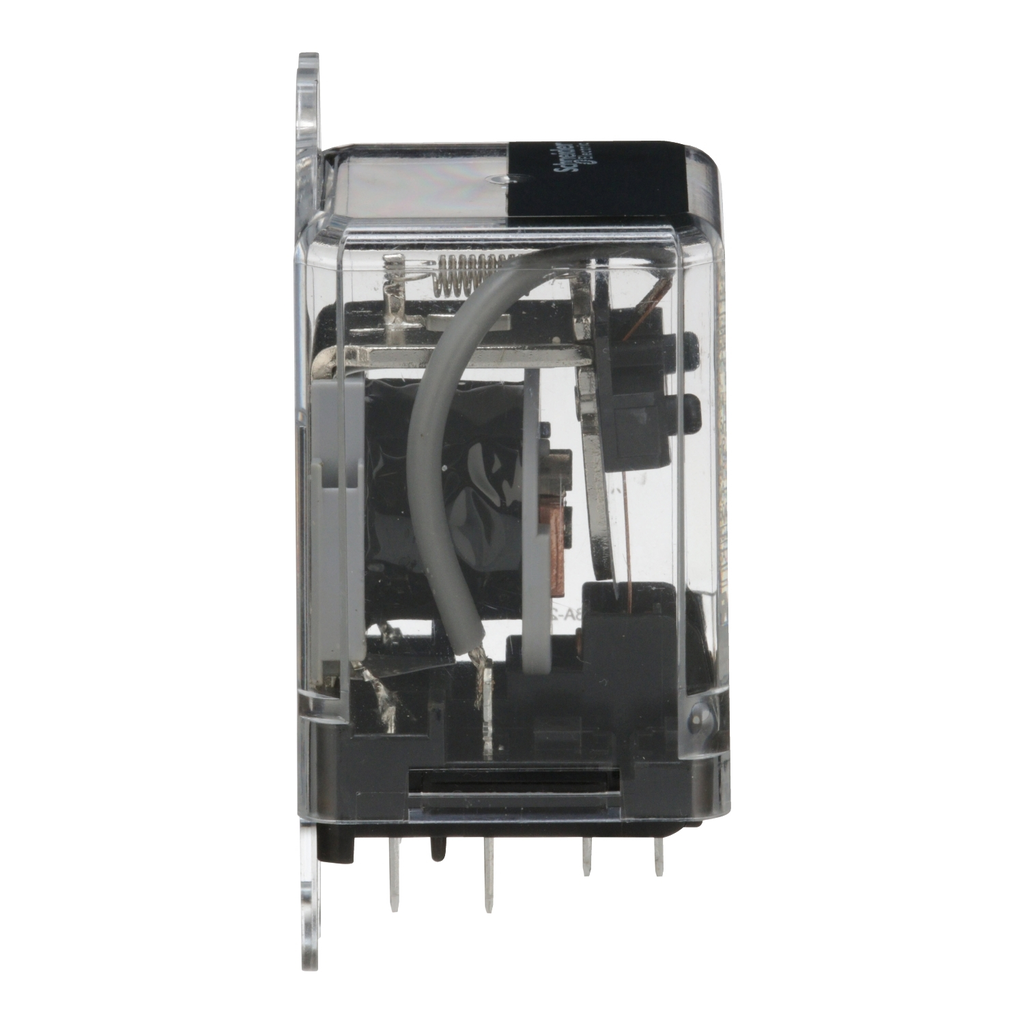

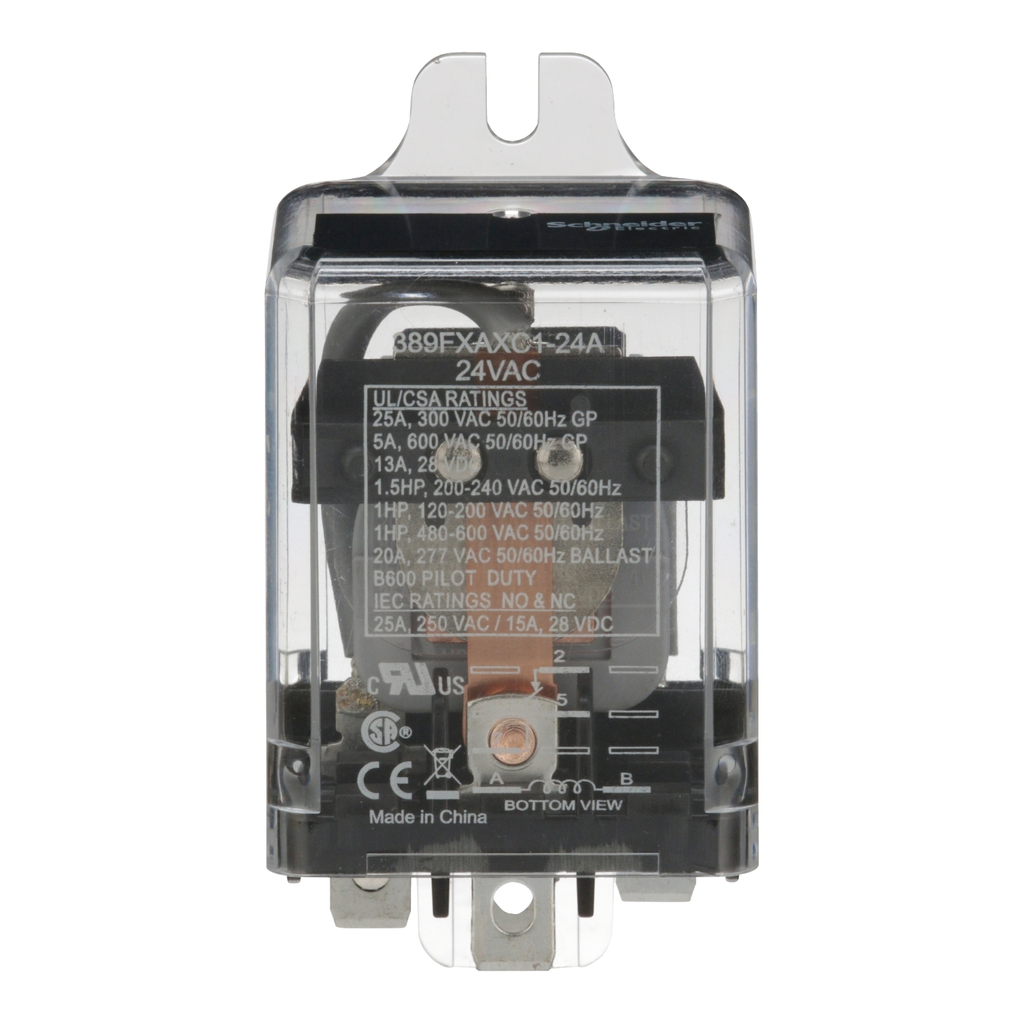

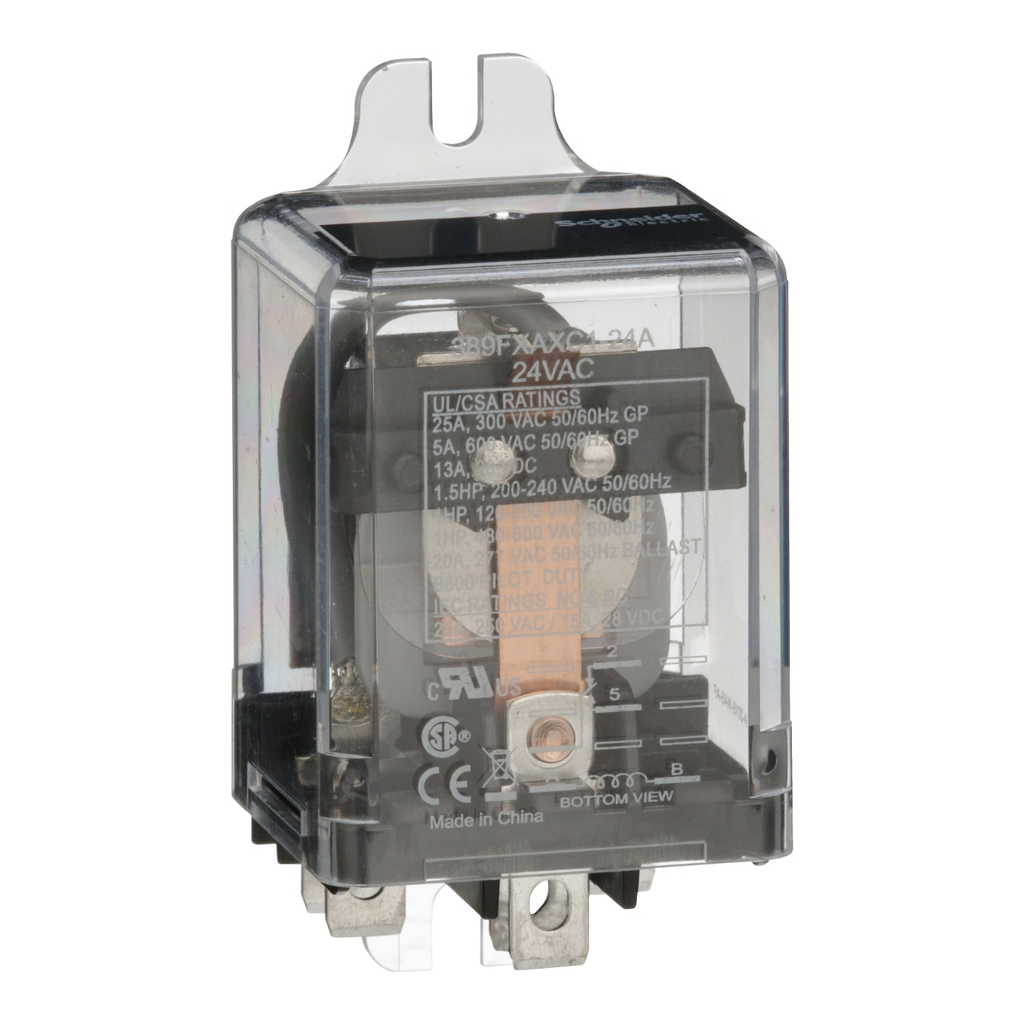

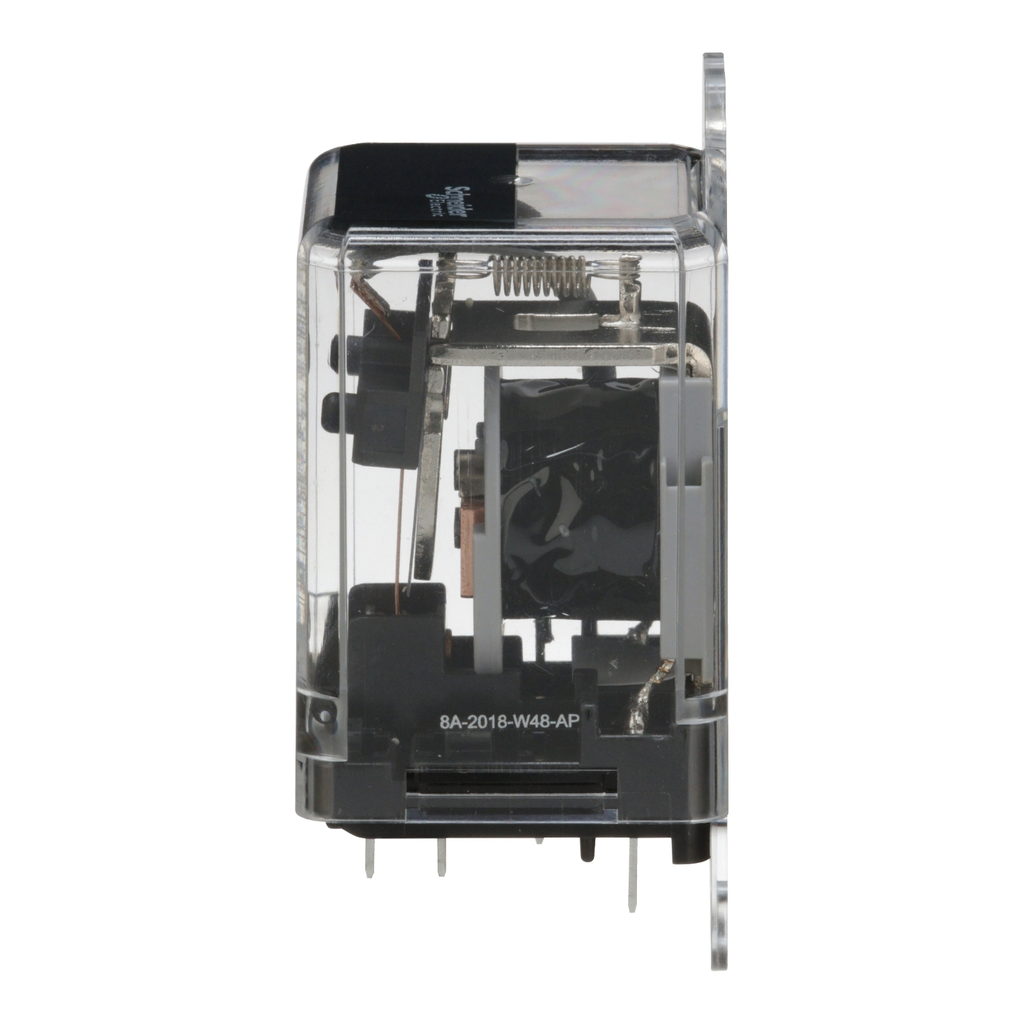

SQD 389FXAXC1-24A Power relay, SE R

Manufacturer: Square-D / Schneider | Catalog # 389FXAXC124A | Cooper Electric Part # 1609335
$17.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The SE Relays 389F series power relay, offers high contact rating of 20A at 300VAC with ability to hold motor loads up to 1.5hp at 200VAC to 240VAC with nominal coil voltage 24VAC . Maximum switching voltage 600 V makes relay suitable for high-power swit

Technical Information

Contact Material
Silver Alloy
Dielectric Strength
1600 V
Input Voltage
24 V
Net Weight
84 g
Operating Temperature
-22131 degrees F (-3055 degrees C)
Short Circuit Current Ratng
3 kA
Storage Temperature
-30-85 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
360648077902
GTiN
03606480779053
Product UPC
78590118136
Weight
84 g

Dimensions

Length
8 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CE,CSA,CURus
Country of Origin
China
Power Consumption In W
  • 1.3-1.3 W DC
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0.0162070876
  • 0 kg CO2 eq.
Voltage Range
  • 0.85...1.1 Uc AC
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.2 kg CO2 eq.
  • 0.1580282923
Maximum Switching Voltage
  • 600 V AC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.5 kg CO2 eq.
  • 0.5323634242
Electrical Durability
  • 100000 cycles resistive load
  • 50000 cycles resistive DC load
Maximum Horse Power Rating
  • 1.5 hp 200/240 V AC 50/60 Hz
  • 1 hp 120...200V AC 50/60 Hz
  • 1 hp 600 V AC 50/60 Hz
  • 1 h
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Drop Out Voltage Threshold
  • >= 0.1 Uc AC/DC
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 23 kg CO2 eq.
  • 23.1109054054
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Input Voltage
  • 24 V AC
Dielectric Strength
  • 2200 V AC between coil and contact
  • 2200 V AC between poles
  • 1600 V AC between contacts
  • 1600 V AC between conta
Carbon Footprint Of The Distribution Phase A4
  • 0.0293328278
  • 0 kg CO2 eq.
Minimum Switching Current
  • 100 mA 5 V DC
Ie Rated Operational Current
  • 25 A at 300 V AC (on resistive load) conforming to UL
  • 25 A at 300 V AC (on resistive load) c
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Associated Fuse Rating
  • 32 A gG at 400 V coordination type 2 for power circuit
  • 32 A gG at 400 V coordination type
Power Consumption In Va
  • 2-2 VA AC
Product Certifications
  • cURus
  • CSA
  • CE
