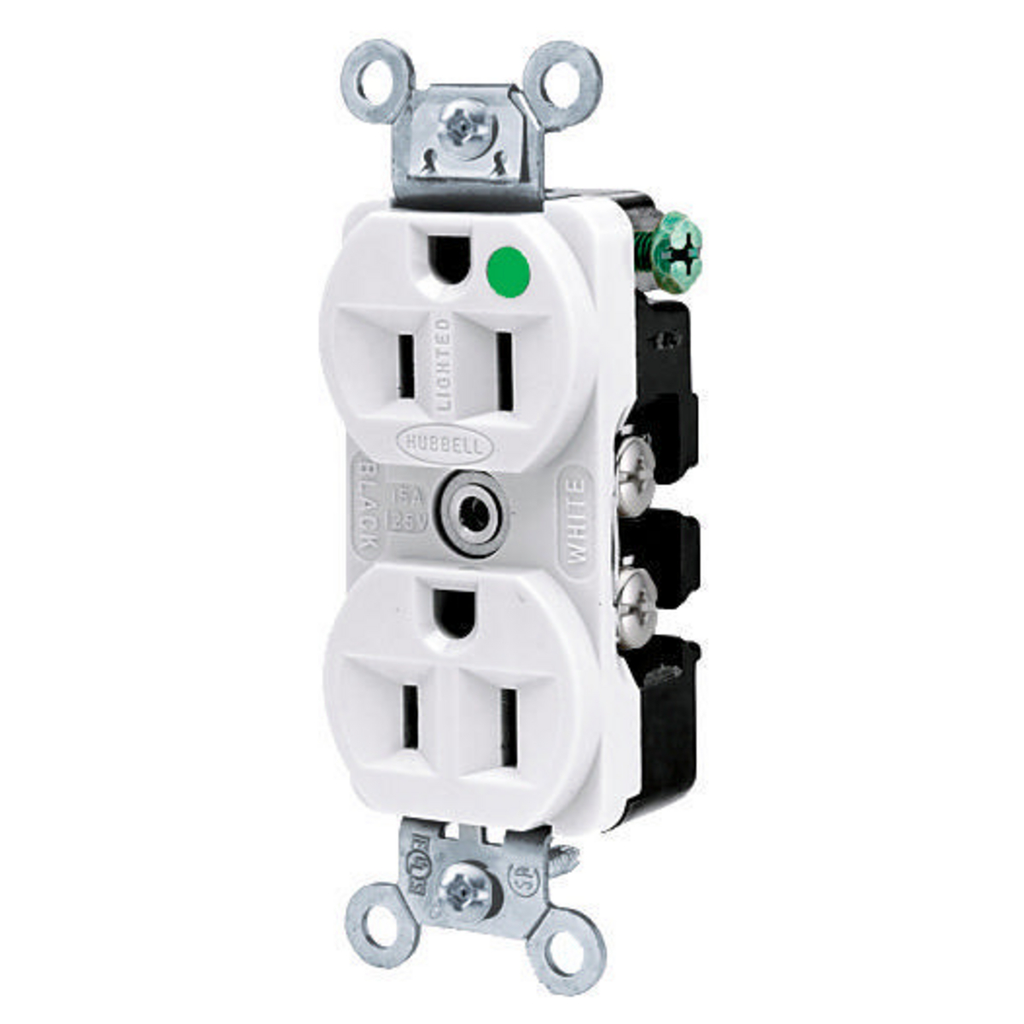

Product image for Hubbell HBL8200ILWDUP Receptacle, HG, 15A 125V, 5-15R, IL, WH
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL8200ILWDUP Receptacle, HG, 15A 125V, 5-15R, IL, WH

Manufacturer: Hubbell Wiring Device | Catalog # HBL8200ILW | Cooper Electric Part # 160739
$121.12/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Bulk Packed, Illuminated Face.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty, Hospitals
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Grade
Hospital
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
TC Connection
Back & Side Wired
Type
Illuminated Face, Extra Heavy Duty
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-10 A

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585016474
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585016474
Product Series
Hospital Grade
Product UPC
78358501647
Weight
0.25 lb

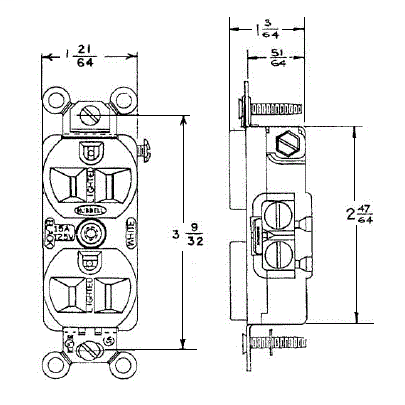

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Slender/compact design
  • Impact-resistant finder groove face
  • Triple wipe contacts
  • Entire face illuminated by two LEDs
  • Illuminated Face
