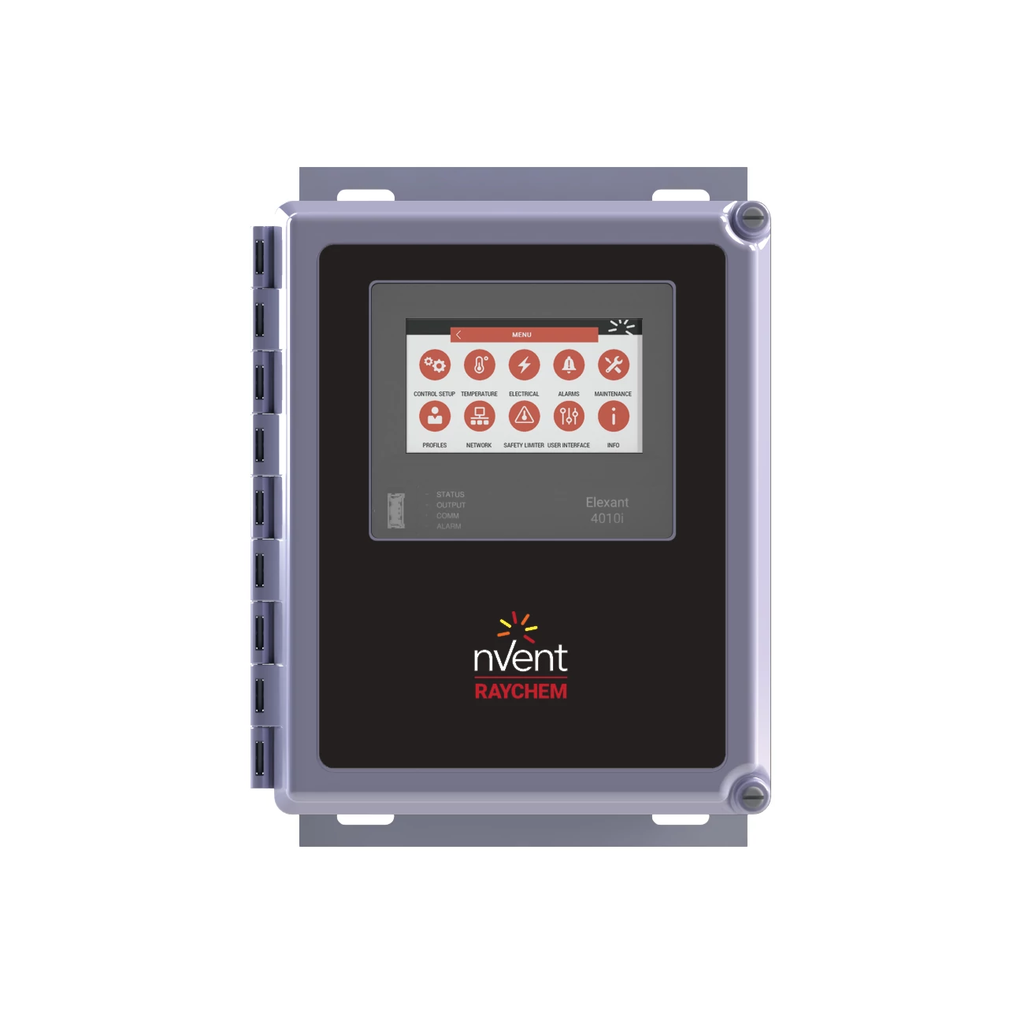

Product image for NVENT RAY 10380-003 Heat Trace Cont
Email

NVENT RAY 10380-003 Heat Trace Cont

Manufacturer: Raychem | Catalog # 10380-003 | Cooper Electric Part # 1604633
$5,538.08/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
A range of eight compact, touch screen based, single-point heat-tracing controllers for freeze protection and process temperature maintenance in nonhazardous or Class I, Div. 2/Zone 2 locations. EMR, Stainless Steel 304.

Technical Information

Applications
Tank Heating; Long Pipeline Heating; Pipe Freeze Protection; Offshore/Maritime Winterization; Process Temperature Maintenance
Material
Stainless Steel
Type
4010i

Manufacturer Information

Brand
nVent Raychem
Sub Brand
RAYCHEM

General Product Info

12-Digit UPC
715629046352
GTiN
00715629046352
Product UPC
71562904635
Weight
4.54 kg

Dimensions

Depth
6.1 Inch
Height
11.8 Inch
Width
9.1 in
Features
  • Global approvals for CID2/Zone 2, ATEX Zone 2, IEC Ex Zone 2
  • Ready to install: no need for custom panel design or field assembly
  • Flexible control options: up to three directly- connected temperature sensors; also supports 4-20 mA inputs, allowing the use of external temperature sensor converters with thermocouples or other sensor types; also line sensing, ambient sensing, proportional ambient sensing control (PASC) and power limiting modes.
  • Flexible monitoring options: ground fault, temperature, current and voltage to ensure system integrity
  • Multiple communication ports: RS485 and Ethernet, readily connected to a distributed control system (DCS); support both the Modbus RTU and Modbus/TCP protocols; can network to a host PC running Windows®-based nVent RAYCHEM Supervisor software for central programming, status review, and alarm annunciation
  • Reliable during long life: 10 year product warranty available
  • Soft-Start, ground fault trip and high/low temperature limit features for equipment protection
  • Multiple communication ports: RS485 and Ethernet, readily connected to a distributed control system (DCS)
  • Support both the Modbus RTU and Modbus/TCP protocols
  • Automatic network configuration with DHCP, or static IP configuration
  • Firmware updates using USB thumb drive
  • Multi-language interface: English, French, German, Spanish, Russian
  • Two multi-purpose digital inputs for connection to external dry (voltage free) contact or DC voltage
