LEV T5835-W DECORA TYPE CC USB 20A

Manufacturer: Leviton Mfg Co | Catalog # T5835-W | Cooper Electric Part # 1603449
$54.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

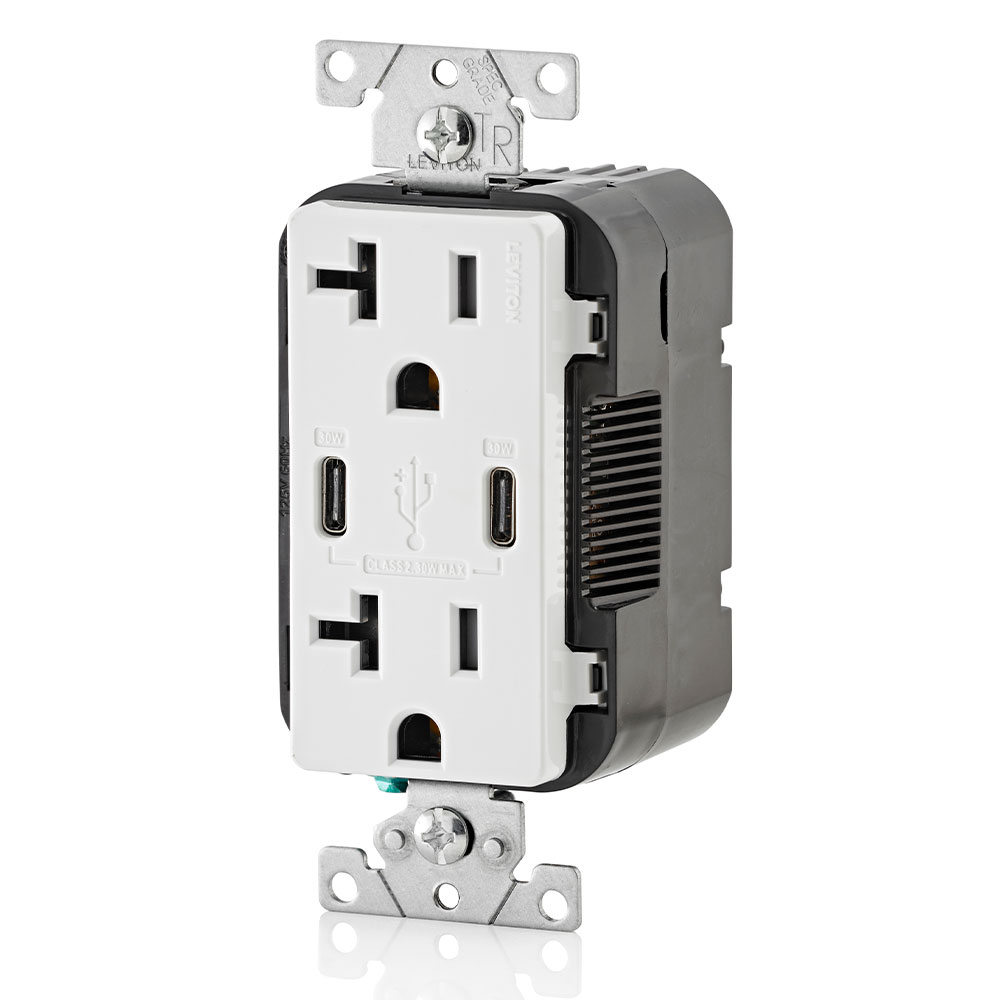

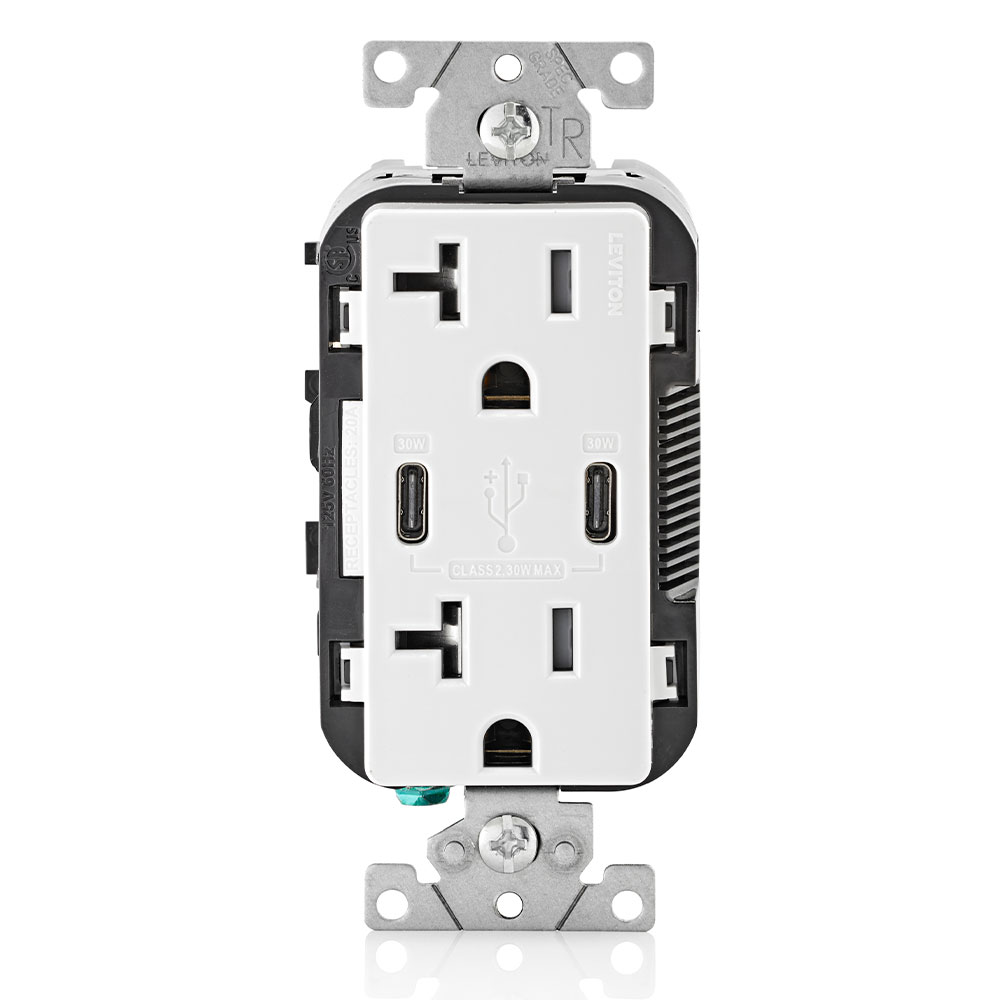

20 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-20R, 30W (6 Amps), Dual Type-C/C Power Delivery USB Chargers, Grounding, Side Wired & Back Wired - White

Technical Information

Amperage
20 Amp
Applications
For Residential and Commercial Applications Including Kitchens, Bedrooms, Home Offices, College Dormitories, Airport Lounges, Hospitals, Salons and Spas, Hotels, Meeting Rooms, Cafes, Restaurants and More
Body Material
Thermoplastic,Thermoplastic
Conductor Size
14-12 AWG
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
-1/2 hp
Material
Thermoplastic
NEMA
5-20R
Operating Temperature
40 degrees C
Outlet Type
Duplex Receptacle
Temperature Rating
-10 to 40 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
14 lb-in
Type
Combination, USB Type C/C, Tamper-Resistant
Voltage
125 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477979396
Color
White
GTiN
00078477979396
Product Type
Outlet/USB Combo
Product UPC
07847797939
Used With
USB 3.1, 3.0, 2.0, 1.1 Devices

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Up to 30W charge when PD-enabled device connected to single port. Up to 15W charge per port (30W total) when both USB ports are connected to devices. Examples of maximum charging outputs are:
  • Single port connected to PD-enabled device: 15VDC@2A (30W) or 9VDC@3A (27W)
  • Single port connected to non-PD device: 5VDC@3A (15W)
  • Both ports connected to devices (PD or non-PD): 5VDC@3A each (up to 30W total)
  • Charges most Type-C devices as well as Type A devices (adapter required)
  • Shallowest profile on the market for ease of installation
  • Smart chip recognizes and optimizes the charging requirements of individual devices
  • Built-in overcurrent protection helps protect the electronics from receiving too much power, which can damage the device
  • Internal thermo regulator prevents the electronics from overheating
  • USB Ports tested to meet the industry requirement to withstand over 10,000 insertions
  • Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
  • Type-C USB Ports enable cables to be inserted in either direction
  • Tamper-Resistant improves child safety built-in shutter prevents access by most non-rated/foreign objects
  • Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device

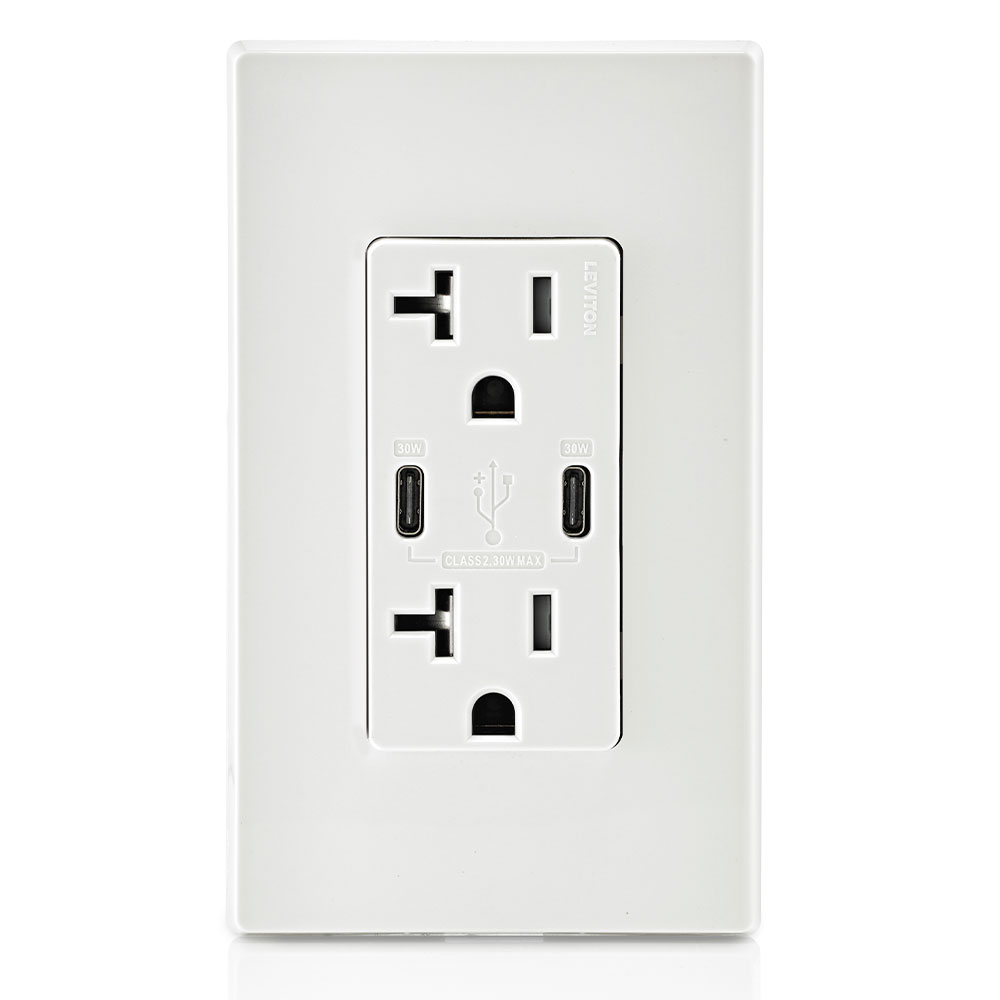

  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
  • Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
  • No data transfer capability

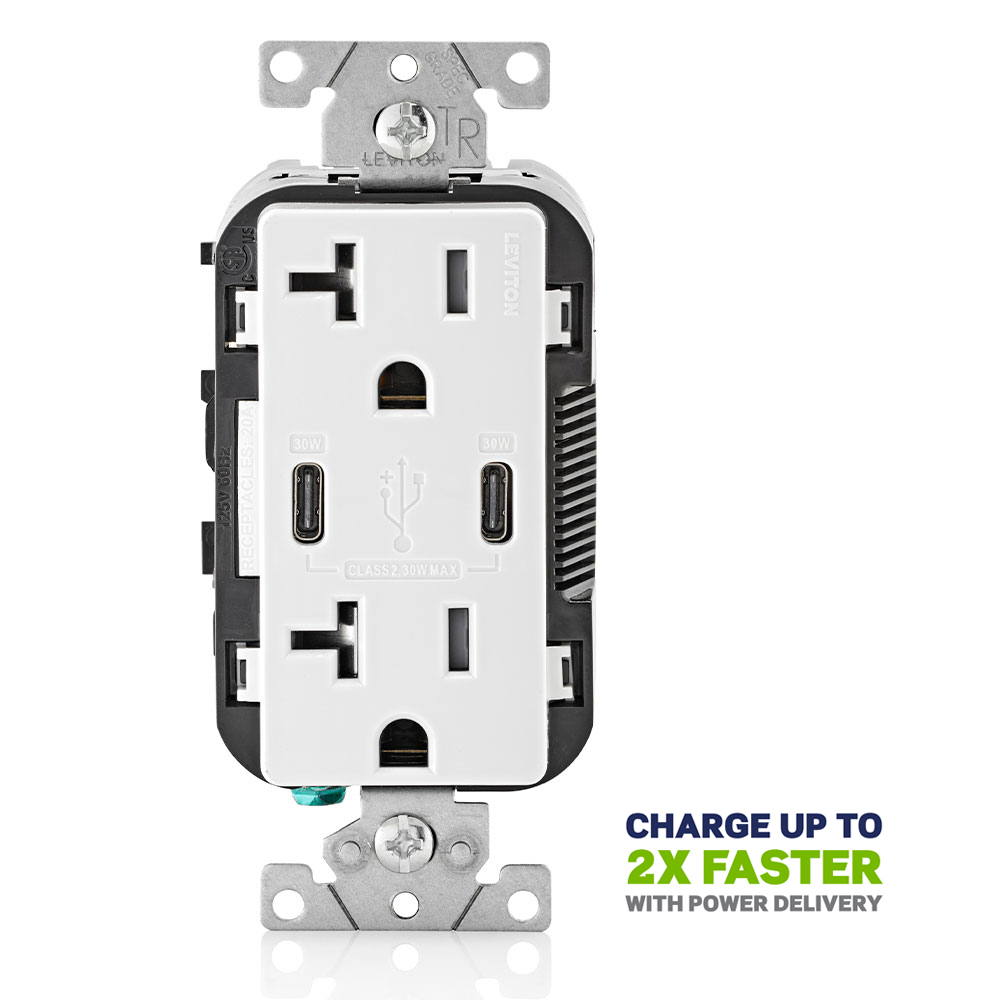

  • POWERFUL 30W charge on a single port. Up to 2x the charging power with PD-enabled devices
  • INNOVATIVE USB Type-C or USB-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
  • ENHANCED SAFETY Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
  • FAST CHARGING Smart chip ensures each device gets the power level it needs to charge fast and efficiently
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • CA2869845
  • MX338817
  • US7355117
  • US7820909
  • US7868719
  • US8242362
  • US8944859
  • US9368982
  • US9496726
  • US9543667
Color Variations
  • Black
NEMA
  • 5-20R
