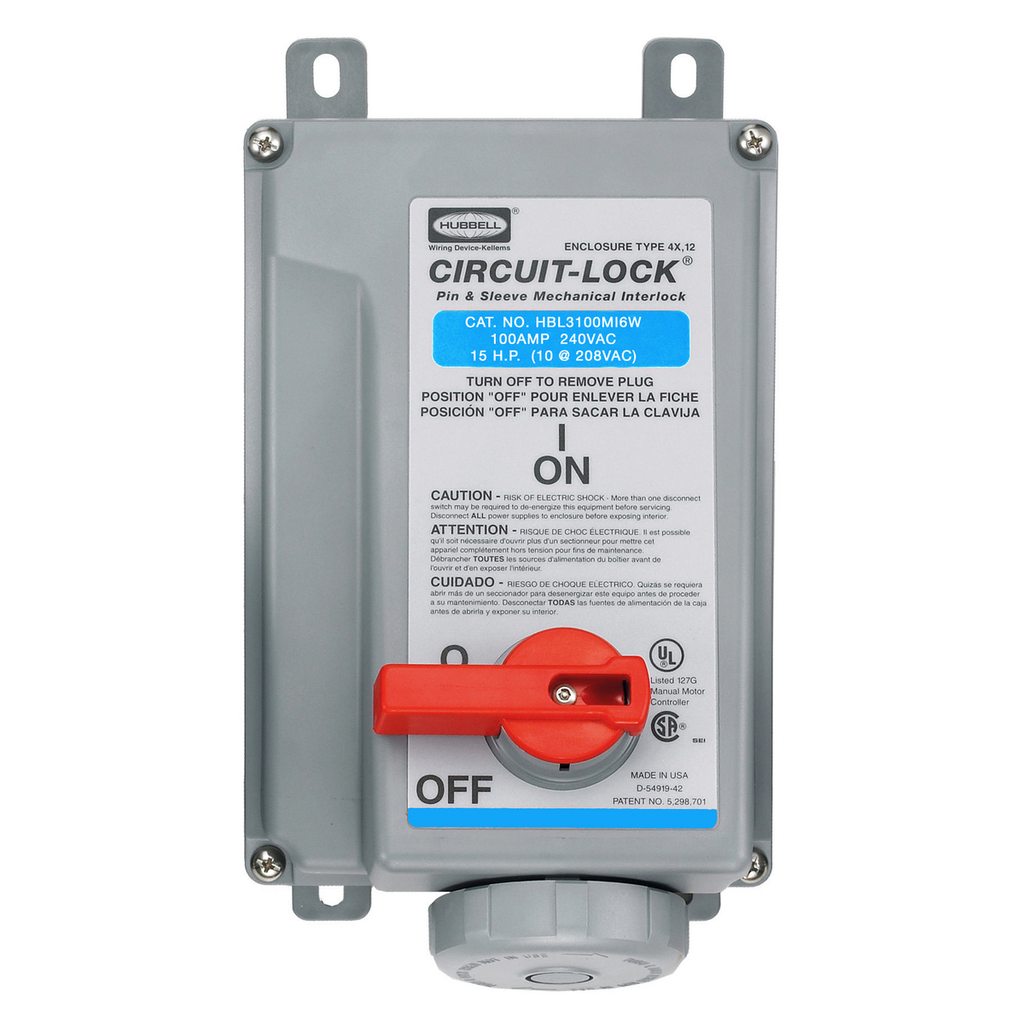

Product image for Hubbell HBL3100MI6W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 100A 2P3W, 240V, IP67, NEMA 4X, 12
Email

Hubbell HBL3100MI6W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 100A 2P3W, 240V, IP67, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device | Catalog # HBL3100MI6W | Cooper Electric Part # 160168
$3,354.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 100A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws Yellow

Technical Information

Amperage
100 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
3-1/0 AWG
Current
100 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
UL
Style
Standard Service
TC Connection
Pressure Plate
Type
Watertight, Unfused
Voltage
240 Volt
Wattage
25000 Watt
Wire Count
3
Wire Size
3-0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405803
Color
Blue
Environmental Conditions
Watertight
GTiN
00783585405803
Product Series
Unfused Circuit,Lock
Product UPC
78358540580
Weight
9.5 lb

Dimensions

Height
7-1/2 Inch
Length
15.2 Inch
Width
9.100 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Puerto Rico
Features
  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle
  • Watertight
