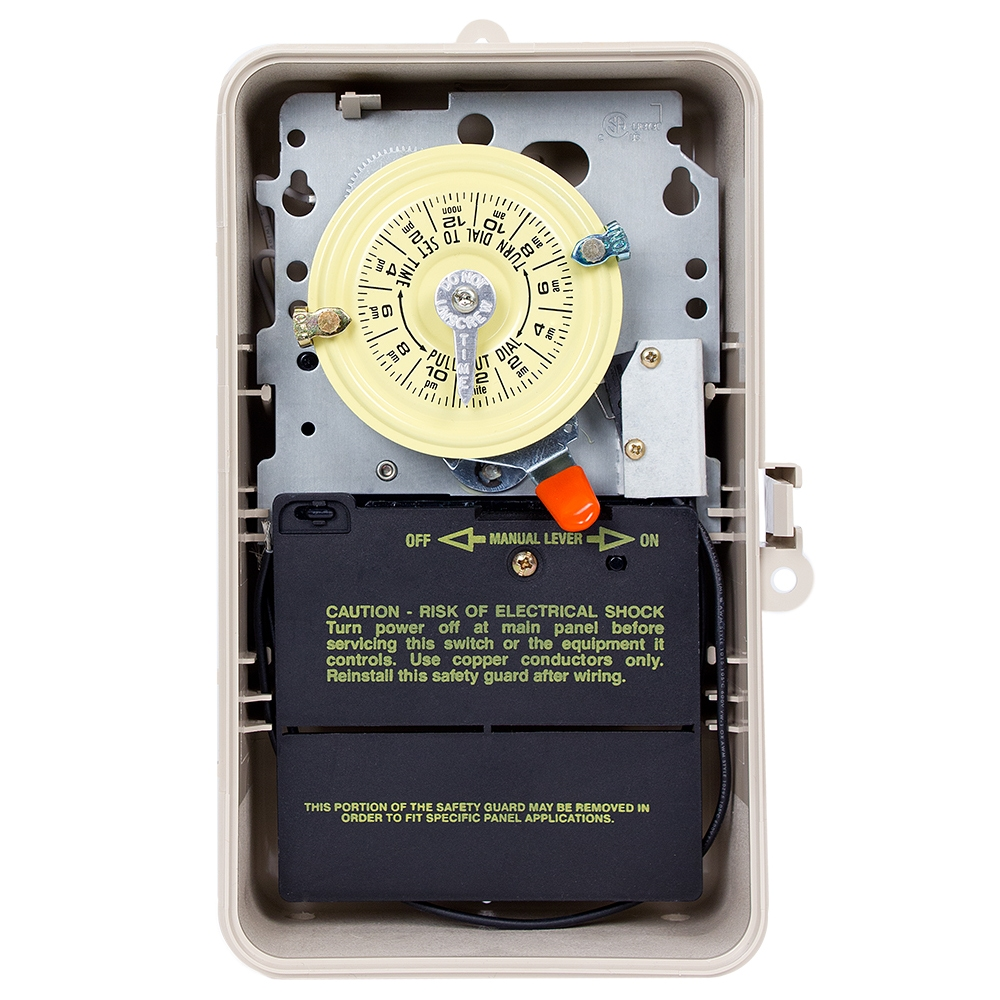

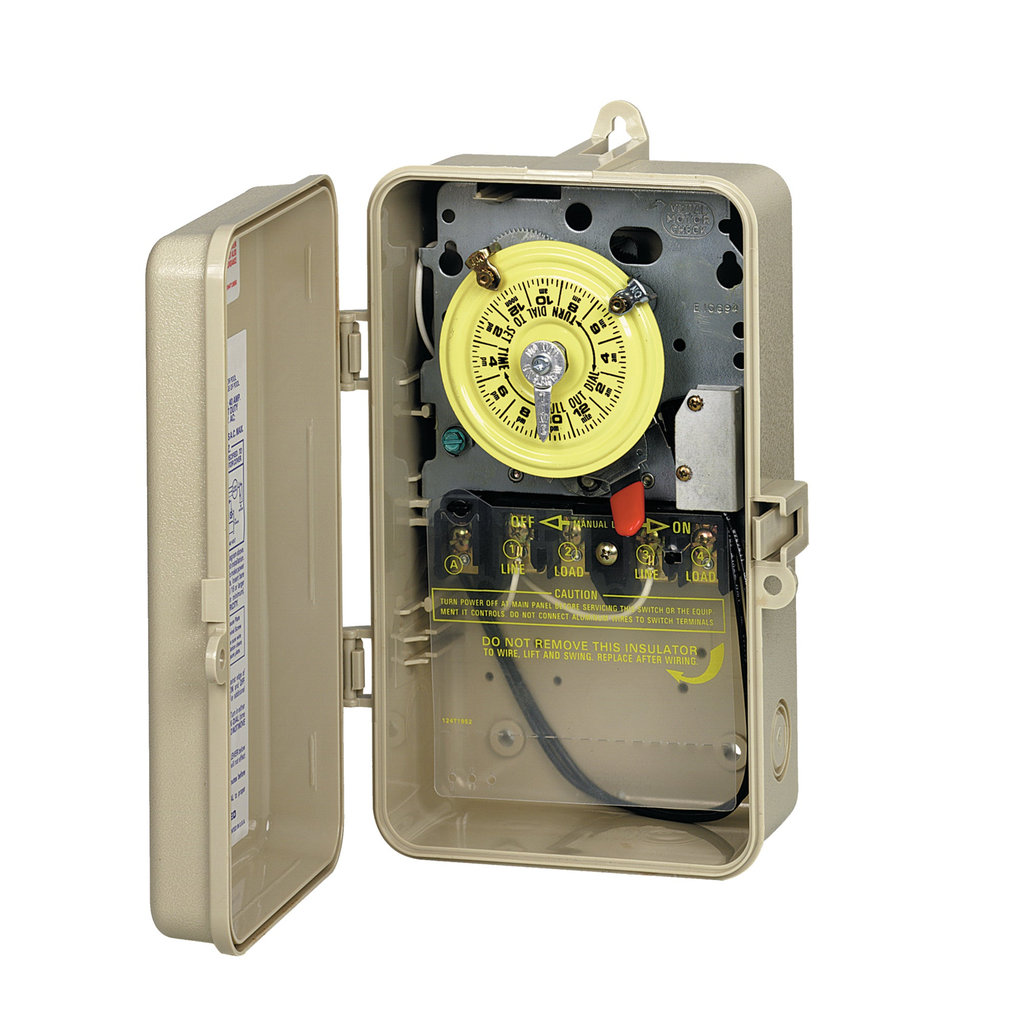

Product image for Intermatic T104P201 NEMA 3R Plastic Case 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch with Pool Heater
Image thumbnail 0
Image thumbnail 1
Email

Intermatic T104P201 NEMA 3R Plastic Case 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch with Pool Heater

Manufacturer: Intermatic, Inc | Catalog # T104P201 | Cooper Electric Part # 160143
$323.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Heavy-duty mechanical time switches control a single load

Technical Information

Action
DPST
Applications
For Commercial, Industrial, Residential, Booster Pumps, Lighting, Hydro Chlorinators, Fans, Air Conditioning, Music and Signal Systems, Heat Pumps, Pool and Spa Controls
Contact Configuration
2 NO
Contact Rating
40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 VAC (Tungsten, Inductive)
Enclosure
NEMA 3R Plastic
Enclosure Type
NEMA 3R
Frequency
60 Hz
Input Voltage
208-277 V
Max Operating Temperature
130 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
2 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Standard
CCSAus Certified
Switch Type
DPST
Temperature Rating
-40 to 130 degrees F
Type
Heavy-Duty
Voltage
208-277 VAC
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275700581
Color
Gray
GTiN
00078275700581
Product UPC
07827570058

Dimensions

Depth
4 Inch
Height
10 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Highest motor load ratings in the industry
  • 12 ON/OFF operations per day
  • One ON and one OFF tripper included
  • Available with pool heater protection
  • Teeter-type terminals for multiple load connections
  • NA
