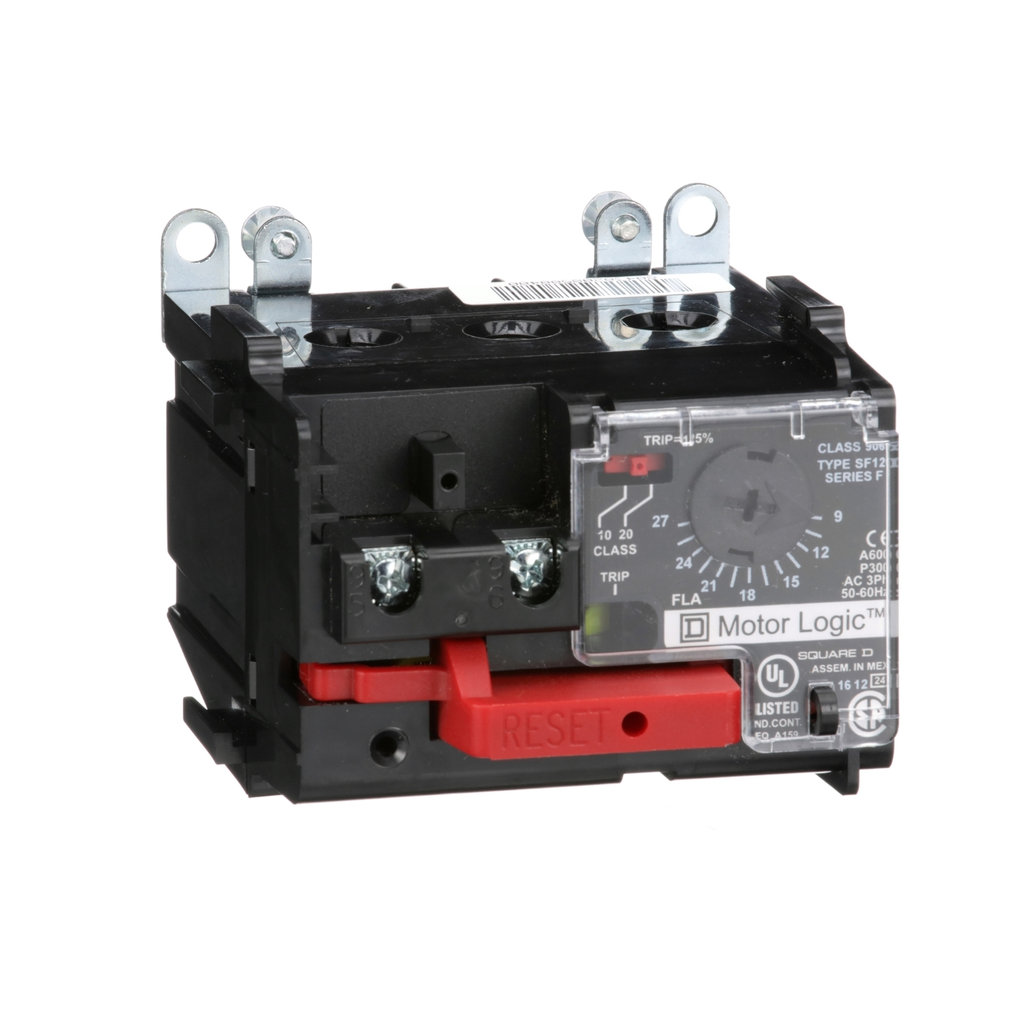

Square D 9065SF120 600 VAC 9 to 27 Amp 3-Phase Size 1 NEMA Solid State Thermal Overload Relay

Manufacturer: Square-D / Schneider | Catalog # 9065SF120 | Cooper Electric Part # 159432
$221.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 1 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 9A to 27A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. Electrical remote reset is available. The visible trip indicator and trip test function make trouble shooting much quicker. This overload relay is 2.69 inches tall, 3.26 inches wide and 3.90 inches deep. Relay weighs 1.21 lbs. Motor Logic SSOLR are UL listed and CSA certified. Separate mount overload relays are UL listed and CSA certified.

Technical Information

Applications
OVERLOAD DETECTION, STAND-ALONE OR NEMA CONTACTORS/STARTERS
Contact Configuration
N/C TRIP INDICATOR
NEMA Size
1
Net Weight
0.55 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Reset Type
MANUAL, REMOTE WITH MODULE
Size
3.90 in
Trip Type
SOLID STATE
Type
OVERLOAD RELAY
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901749936
GTiN
00785901749936
Product UPC
78590174993
Weight
0.55 kg

Dimensions

Depth
3.9 in
Height
2.69 in
Warranty Length
18 mth
Width
3.26 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.243192972290801
  • 0.2 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.8 kg CO2 eq.
  • 0.7531168308634987
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 6 kg CO2 eq.
  • 6.452943785711587
Accessories
  • 9999AC04
  • 9999LL0
  • 9999LB0
  • 9999RR04
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 5 kg CO2 eq.
  • 5.069037029711684
Accessory Products
  • 9999AC04
  • 9999LL0
  • 9999LB0
  • 9999RR04
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
Carbon Footprint Of The Distribution Phase A4
  • 0.3852034934473569
  • 0.4 kg CO2 eq.
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
UE Rated Operational Voltage
  • 600 V AC
