SQUARED NSYSM1816402D Spacial SM co

Manufacturer: Square-D / Schneider | Catalog # NSYSM1816402D | Cooper Electric Part # 1593680
$2,322.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

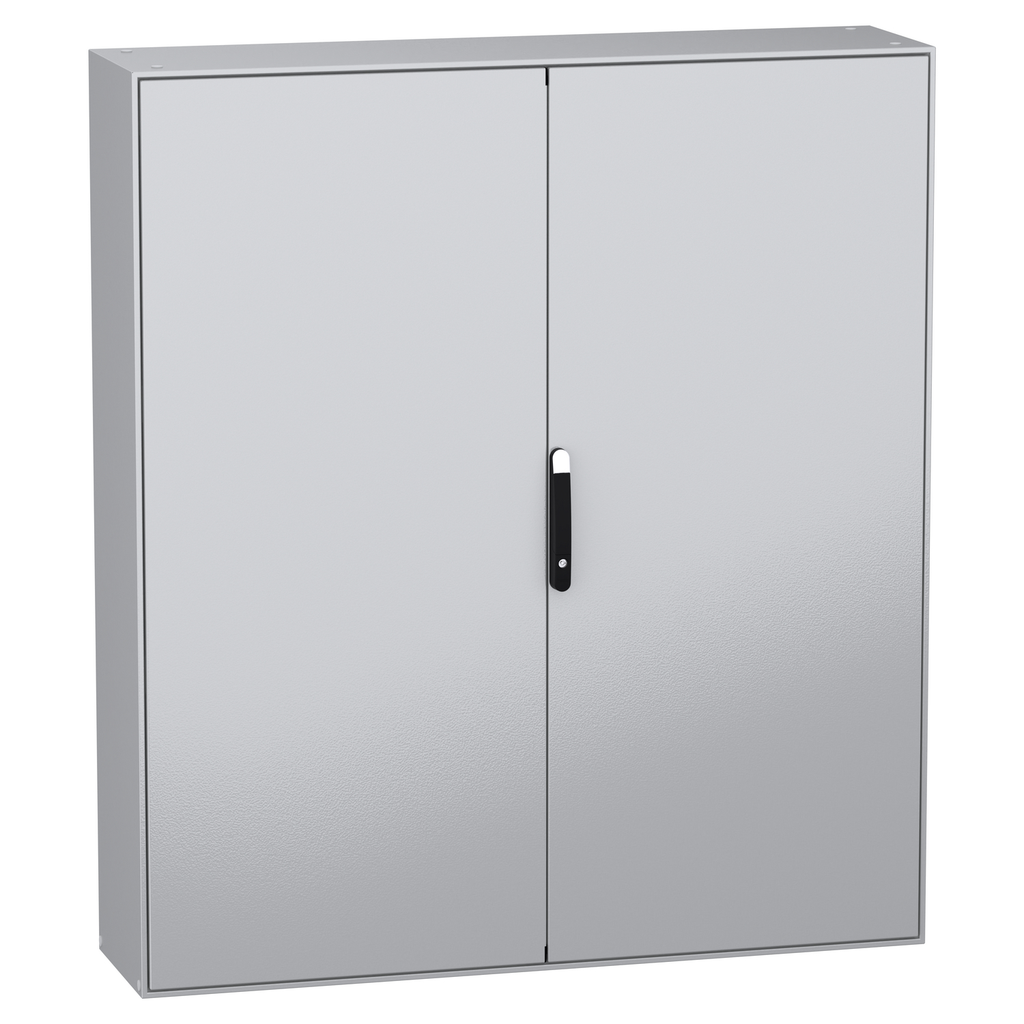

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1799 x 1600 x 400 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.

Technical Information

Body Type
Front Part Forming A Rigid Frame With Welded Corners,Single Piece Body With Welded Rear Panel
Cable Entry
1 Entry
Door Type
Solid
Lock Type
5 mm
Material
Steel
Net Weight
134 kg
Number of Doors
Front 2
Standard
IEC 62208
Surface Finish
Epoxy-Polyester Powder

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606485120747
Color
Enclosure Gray RAL 7035),Handle Black RAL 9005)
GTiN
03606485120744
Product UPC
60648512074
Weight
134 kg

Dimensions

Enclosure Depth
400 mm
Enclosure Height
1800 mm
Enclosure Wdth
1600 mm
Height
1800 mm
Warranty Length
18 mth
Width
1600 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,DNV,UL
Country of Origin
Spain
