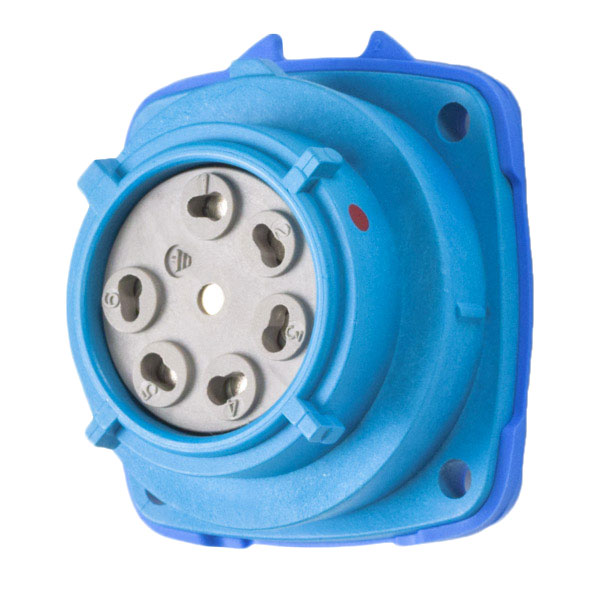

Product image for Meltric 01-P8051-001 PN7c Receptacle, Poly, Blue, Size 1, IP66/IP67, 5P+G, 15A, 480 VAC, 60 Hz, Reverse interiors
Email

Meltric 01-P8051-001 PN7c Receptacle, Poly, Blue, Size 1, IP66/IP67, 5P+G, 15A, 480 VAC, 60 Hz, Reverse interiors

Manufacturer: Meltric | Catalog # 01-P8051-001 | Cooper Electric Part # 1593280
$147.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Inlet, Enclosure IP66/IP67, Wiring Capacity 18 To 10 AWG, Polarity 5 Pole, Ground, Reverse Interiors, Standard: UL, CSA, CE, Size: 2.20 DIA X 2.09IN, Amperage Rating: 20AMP, Voltage Rating: 600V, Material: Polyester, Color: Blue, Temperature Rating: -40 t

Technical Information

Amperage
20 Amp
Contact Configuration
5P+G
Current
15 Amp
Frequency
60 Hz
IP Rating
66,67
Material
Polyester
Max Operating Temperature
140 degrees F
Size
1
Standard
EN 60947-1IEC,EN 60947-4-1IEC,EN 60947-5-1UL 60947-1UL 60947-4-1,IEC
Strip Length
5/16 in
Temperature Rating
-40 to 140 degrees F
Type
Single
Voltage
480 Volt

Manufacturer Information

Brand
Meltric

General Product Info

12-Digit UPC
784474659727
Color
Blue
GTiN
00784474659727
Product Series
41
Product UPC
78447465972

Certifications and Compliance

CSA
155873,C22.2 No. 182.1-02,C22.2 No. 94.2-15,CCSAus
Features
  • Reverse interiors
