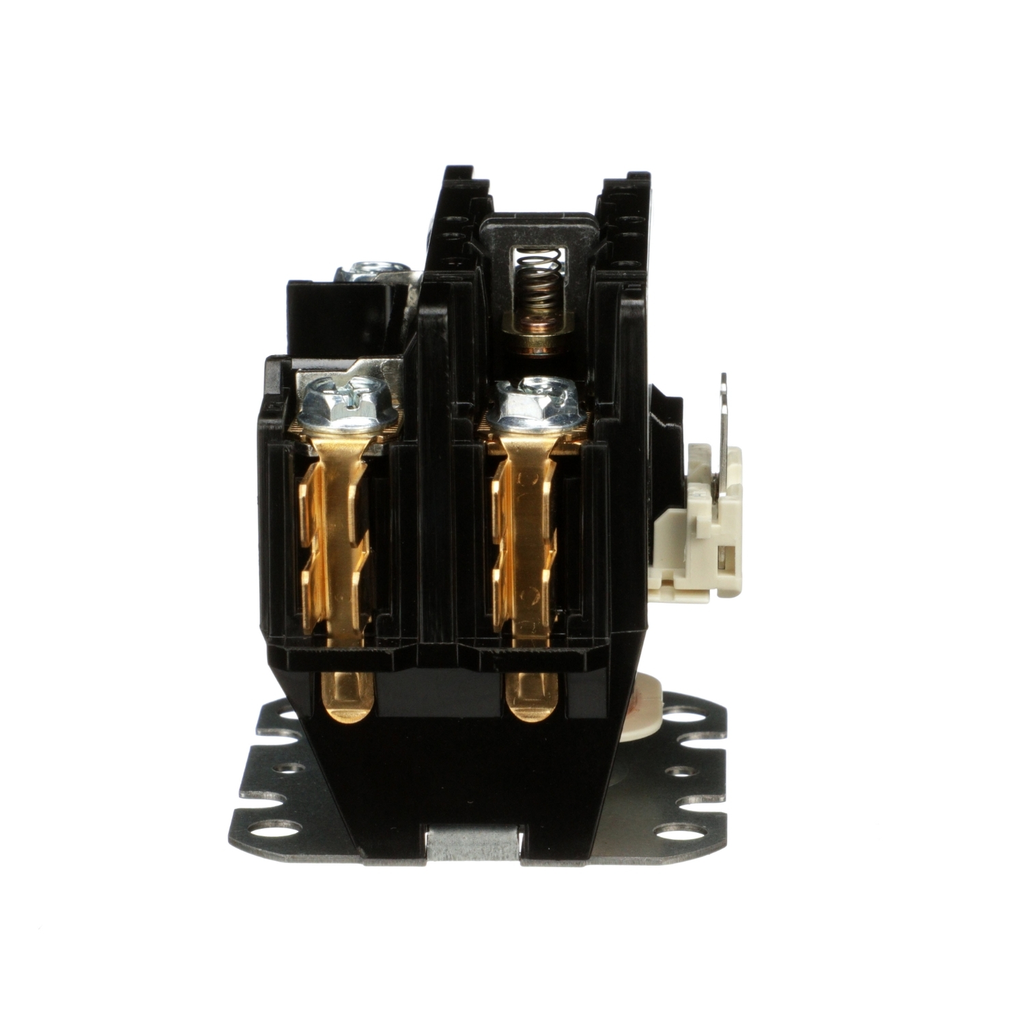

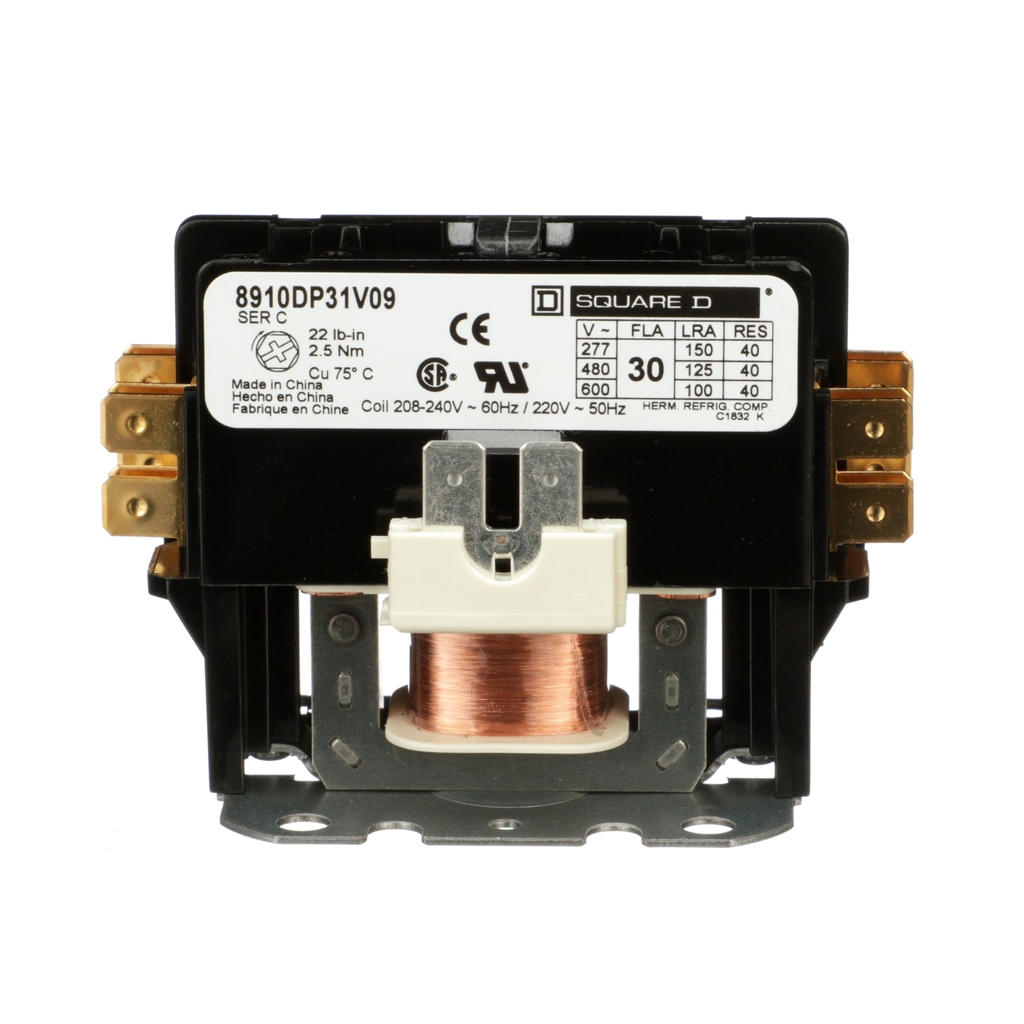

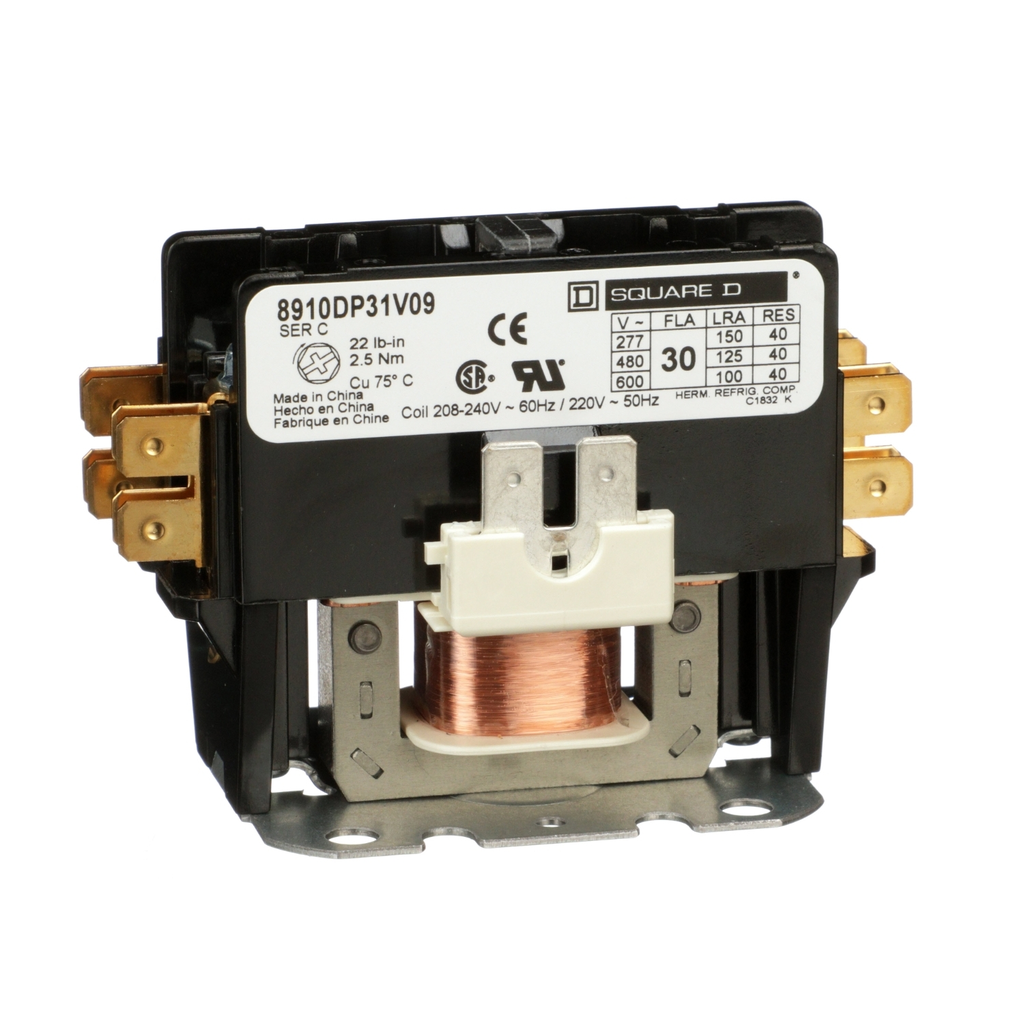

Square D 8910DP31V09 208 to 240 VAC 30 Amp 1-Pole 1NO NEMA 1 Non-Reversing Definite Purpose Contactor

Manufacturer: Square-D / Schneider | Catalog # 8910DP31V09 | Cooper Electric Part # 159316
$82.59/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3 4
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.

Technical Information

Amperage
30 Amp
Applications
IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Coil Voltage
208 to 240@60Hz/220 to 230@50Hz V
Contact Configuration
1 NO
Contact Rating
30 A
Line Rated Current
30 A
Number of Phases
1 Phase
Number of Poles
1 Pole
Size
1P
TC Connection
QUICK CONNECT/BINDER HEAD SCREW
Type
DEFINITE PURPOSE CONTACTOR
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
DP

General Product Info

12-Digit UPC
785901024170
GTiN
00785901024170
Product UPC
78590102417

Dimensions

Depth
61 mm
Height
51 mm
Warranty Length
18 mth
Width
84 mm

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
Mexico
Compatible Products
  • 9991DPG1
