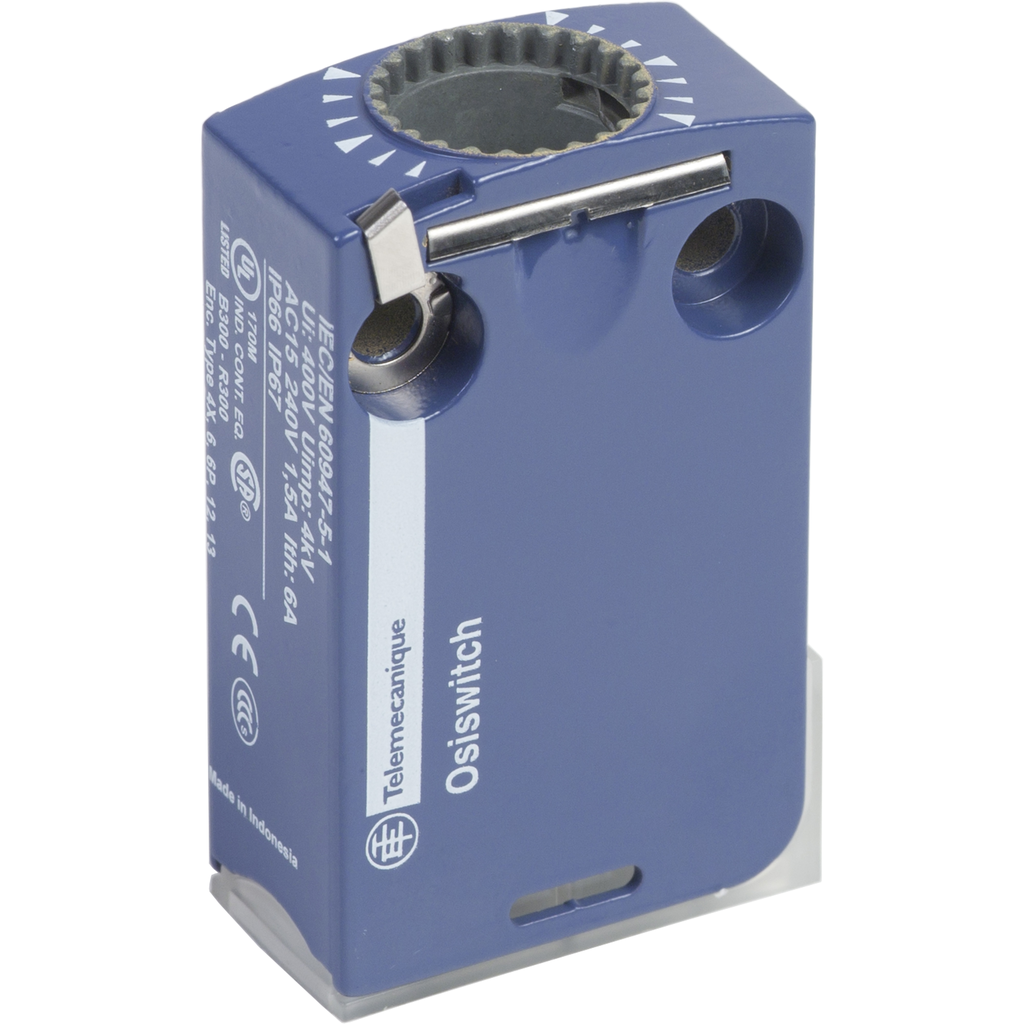

Product image for TES ZCMD39 Limit switch body, XC Standard, ZCMD, 2NC 1NO , silver, snap action
Email

TES ZCMD39 Limit switch body, XC Standard, ZCMD, 2NC 1NO , silver, snap action

Manufacturer: TES Electric | Catalog # ZCMD39 | Cooper Electric Part # 1590958
$53.07/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This 3-pole body without cable, is part of the XCMD limit switches range. It is part of the variable composition offer. This body can be assembled with a wide range of heads/operators. Many compatible pre-cabled connection components are also available. Contacts: 2 NC + 1 NO, snap action.

Technical Information

Applications
XCMD
Body Material
Zamak
Contact Configuration
2 NC + 1 NO
Contact Material
Silver Plated Contacts
Net Weight
0.055 kg
Number of Poles
3 Pole
Operating Cycles
5000000 CYCLES, DC-13 120 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Size
16 MM,30 MM,50-50 MM
Storage Temperature
-40-70 degrees C
TC Connection
PLUG-IN WITHOUT PRE-CABLED CONNECTION
Type
LIMIT SWITCH BODY

Manufacturer Information

Brand
Telemecanique
Sub Brand
ZCMD

General Product Info

12-Digit UPC
389110299093
GTiN
03389110299090
Product UPC
38911029909
Weight
0.12 lb

Dimensions

Depth
16 mm
Height
50-50 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Indonesia
