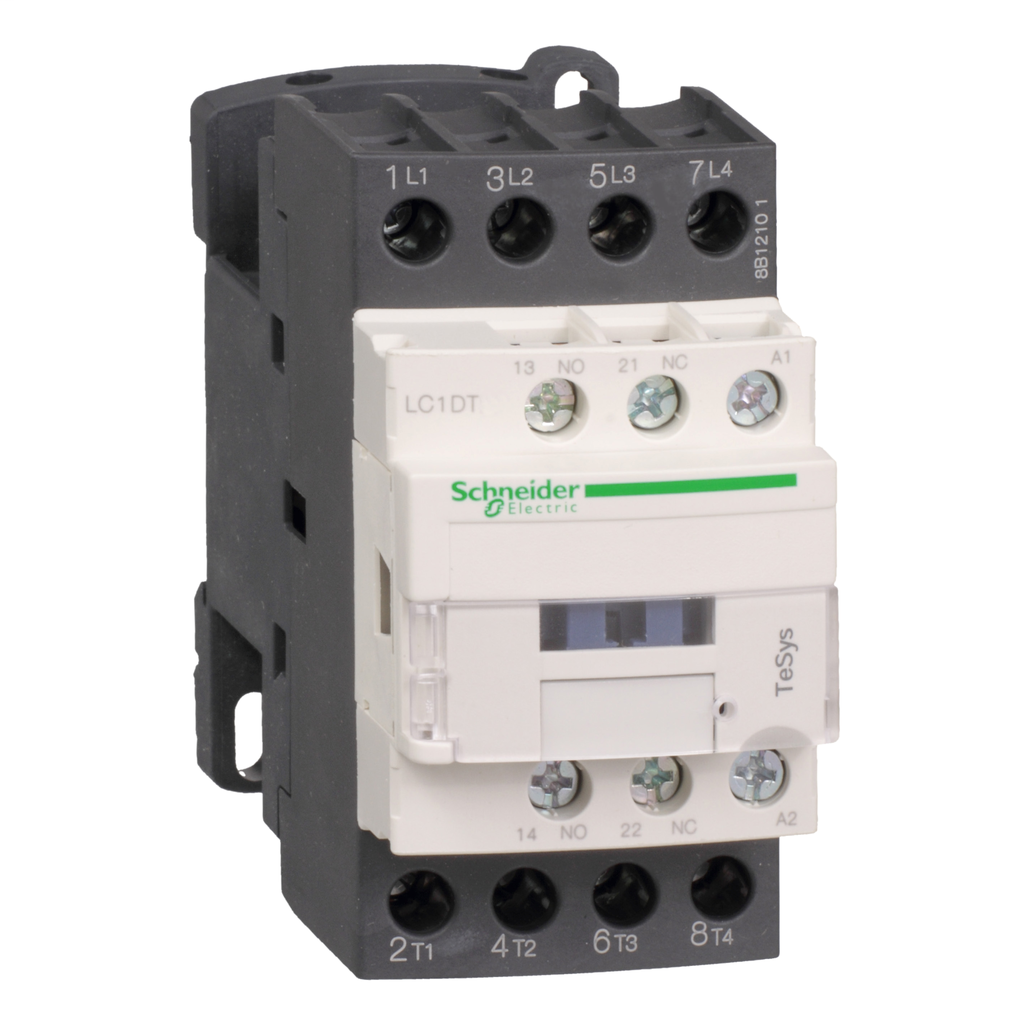

Product image for SQUARED LC1DT40T7 IEC contactor, Te
Image thumbnail 0
Image thumbnail 1
Email

SQUARED LC1DT40T7 IEC contactor, Te

Manufacturer: Square-D / Schneider | Catalog # LC1DT40T7 | Cooper Electric Part # 1589976
$294.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 480 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Technical Information

Applications
RESISTIVE LOAD
Coil Voltage
480 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Contact Configuration
1 NO + 1 NC
Contact Rating
10 A 60 AC SIGNALLING CIRCUIT-40 A 60 AC POWER CIRCUIT
Control Circuit Voltage
480 V
Impedance
2 mOhm - Ith 40 A 50 Hz Power Circuit
Net Weight
0.425 kg
Operating Cycles
3600 cyc/h 140 F (60 C)
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Size
45 MM,91 MM,99 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-10 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-10 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-10 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-10 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-16 MMASOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-16 MMASOLID WITHOUT CABLE END
Type
CONTACTOR
Voltage
300 Volt
Wattage
3.2 Watt AC-1

Packaging

Pkg Qty
1

Manufacturer Information

Brand
TeSys
Sub Brand
TESYS D

General Product Info

12-Digit UPC
785901407829
GTiN
03389110339765
Product UPC
78590140782
Weight
0.94 lb

Dimensions

Depth
3.9 Inch
Height
3.58 Inch
Warranty Length
1.5 yr
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS,RINA,UL
Country of Origin
France
