SQD 389FHXXC1-24D Power relay, SE R

Manufacturer: Square-D / Schneider | Catalog # 389FHXXC124D | Cooper Electric Part # 1589796
$88.54/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

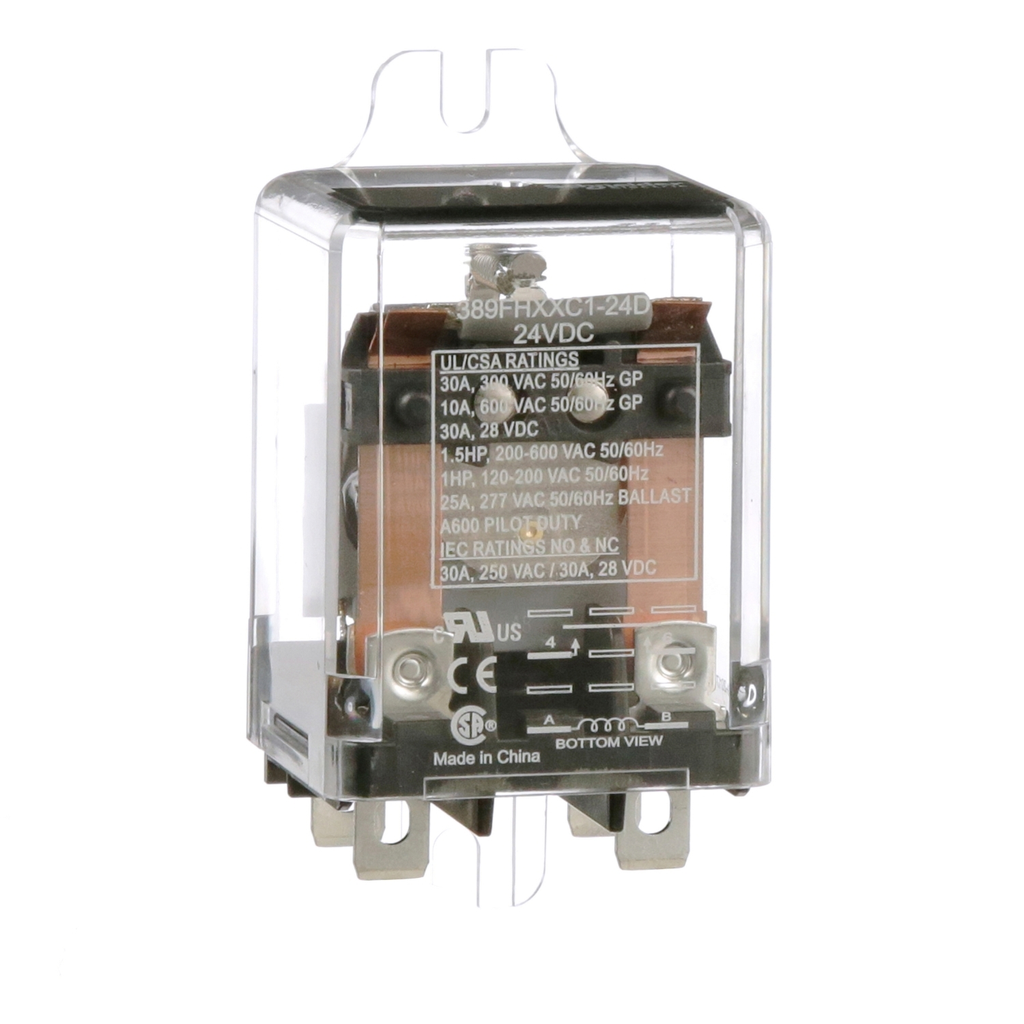

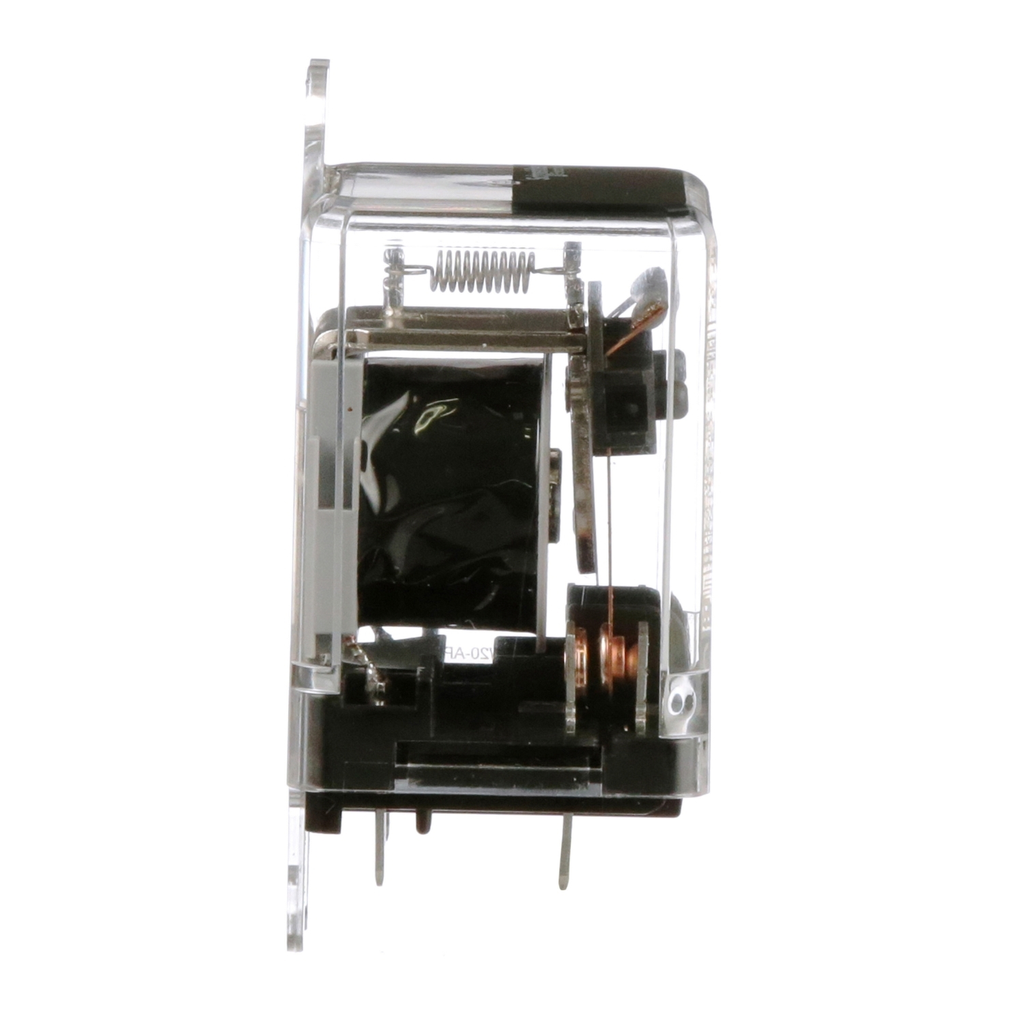

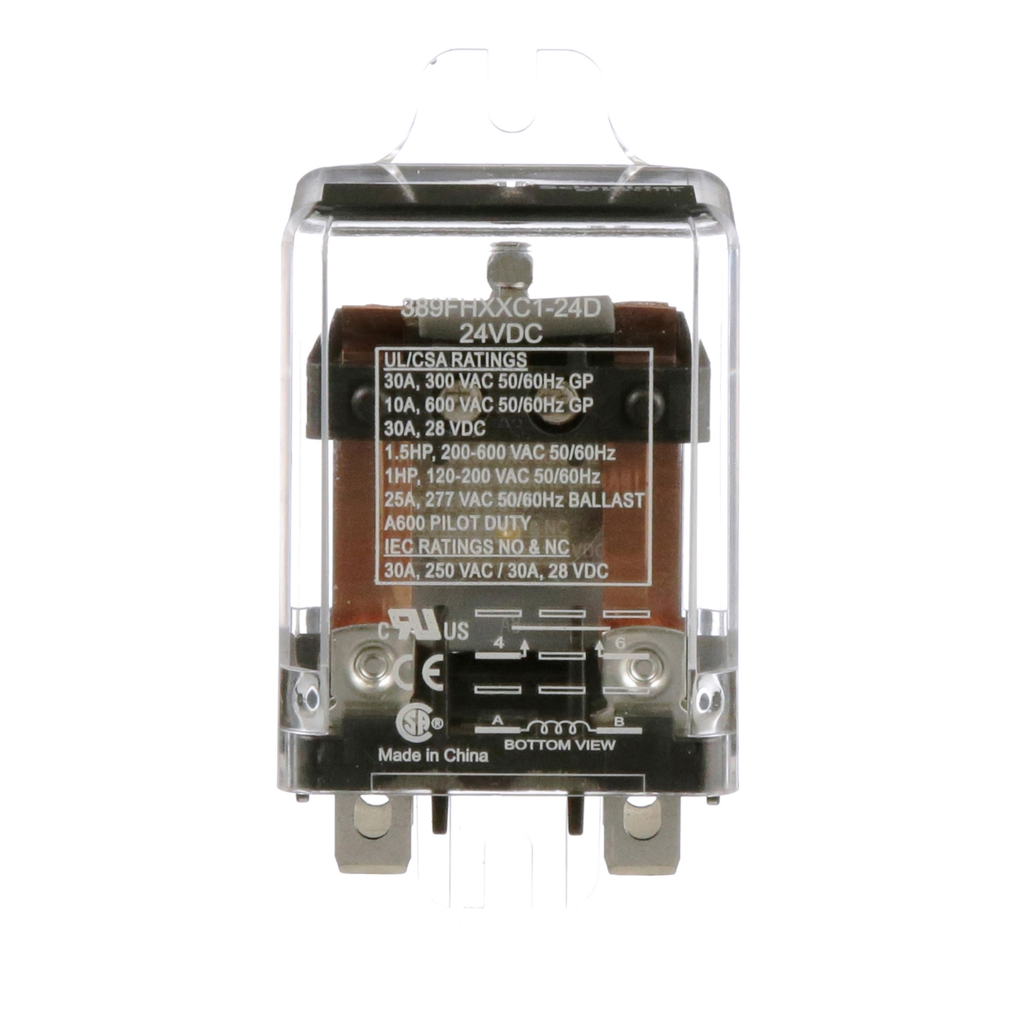

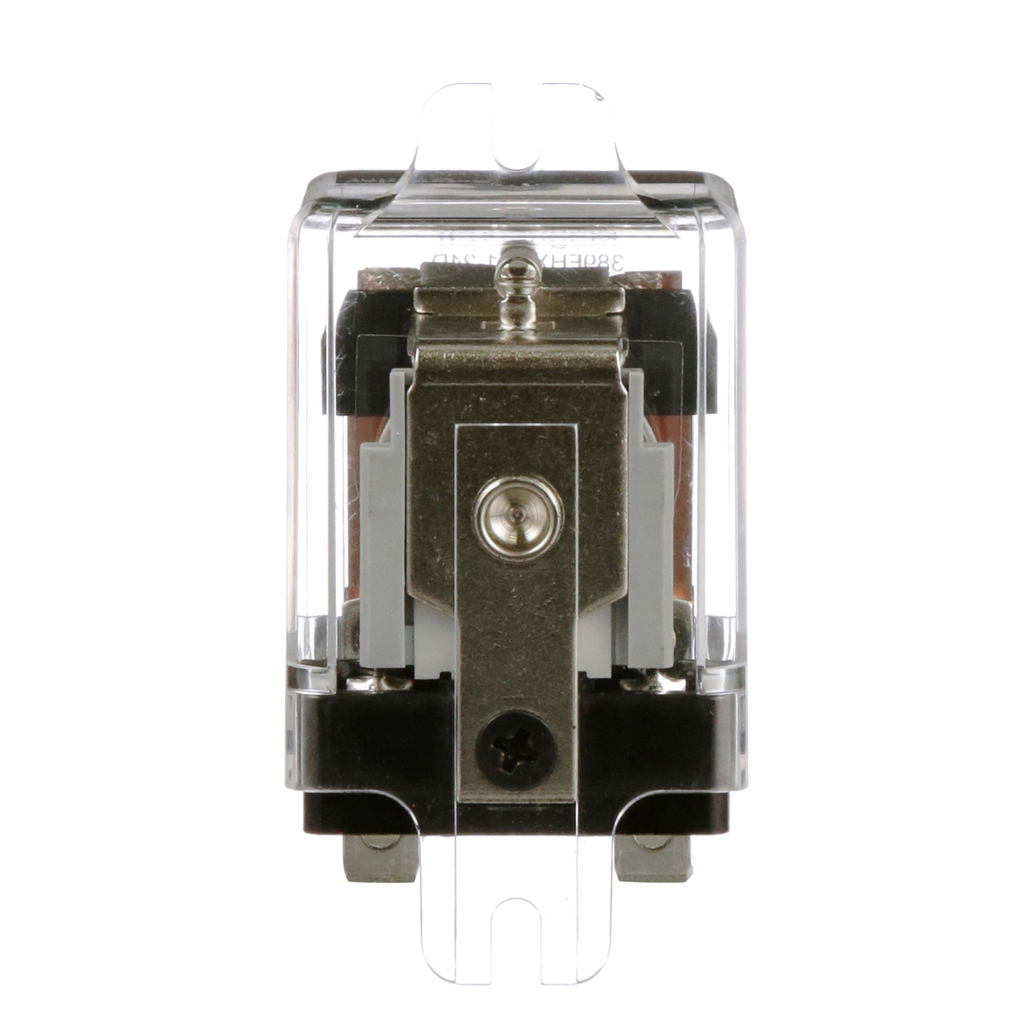

The SE Relays 389F series power relay, offers high contact rating of 30A at 300VAC with ability to hold motor loads up to 1.5hp at 200VAC to 600VAC with nominal coil voltage 24VDC . Maximum switching voltage 600V makes relay suitable for high-power switching applications. Supported ballast load contact rating perfectly suits for lighting controls. Silver alloy SPST-NO-DM contact configuration makes an ideal solution for variety of application requirements. Side flange mounting option with wide range of accessories helps increase design and installation flexibility.

Technical Information

Contact Material
Silver Alloy
Dielectric Strength
1600 V
Input Voltage
24 V
Net Weight
84 g
Operating Temperature
-22131 degrees F (-3055 degrees C)
Short Circuit Current Ratng
3 kA
Storage Temperature
-30-85 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901181347
GTiN
03606480276743
Product UPC
78590118134
Weight
84 g

Dimensions

Length
8 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,CURus
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
