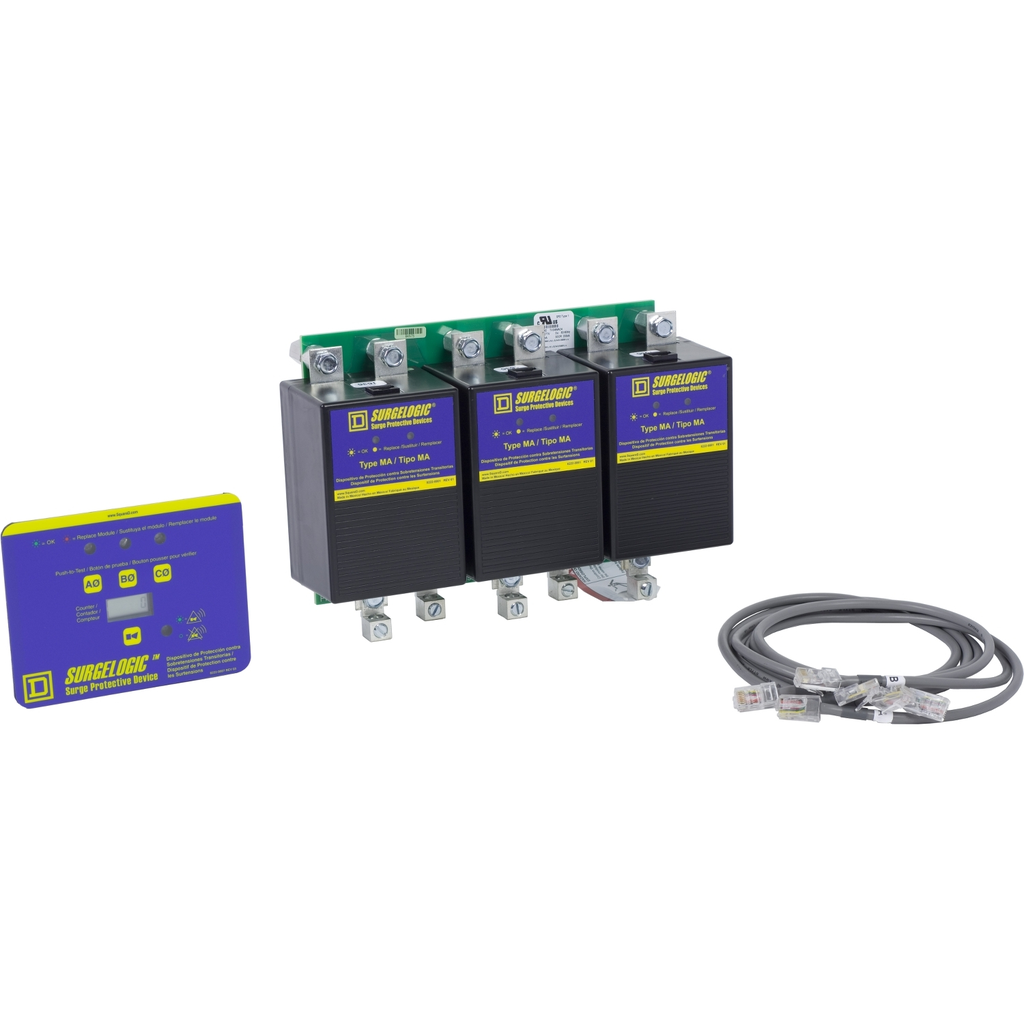

Product image for SQD TVS4IMA24O1 OEM assembler kit,
Email

SQD TVS4IMA24O1 OEM assembler kit,

Manufacturer: Square-D / Schneider | Catalog # TVS4IMA24O1 | Cooper Electric Part # 1587367
$14,775.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Surgelogic™ Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. With a surge current rating of 240,000 Amps and enhanced EMI/RFI filtering, this unit is retrofitted to be installed in a wide variety OEM Busway units. This unit uses the WYE system to allow two different voltages using three and single phase devices. This product is UL and CSA certified.

Technical Information

Enclosure
1
Mounting Type
Surface
NEMA Size
1
Nominal Discharge Current
20 kA
Number of Phases
3 Phase
Size
3.65 in
Standard
CSA C22.2 No 8:1986,IEC 61643-1,UL 1283,UL 1449:ed. 4,UL 96A:ed. 12
TC Connection
Lugs AWG 12...AWG 2 aluminium/copper 35.40 lbf.in (4 N.m)
Type
Surge protection device;4-wire
Voltage
277 Volt

Manufacturer Information

Brand
Square D
Sub Brand
IMA

General Product Info

12-Digit UPC
785901946267
GTiN
00785901946267
Product UPC
78590194626

Dimensions

Depth
92.7 mm
Height
155.7 mm
Width
250.4 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
