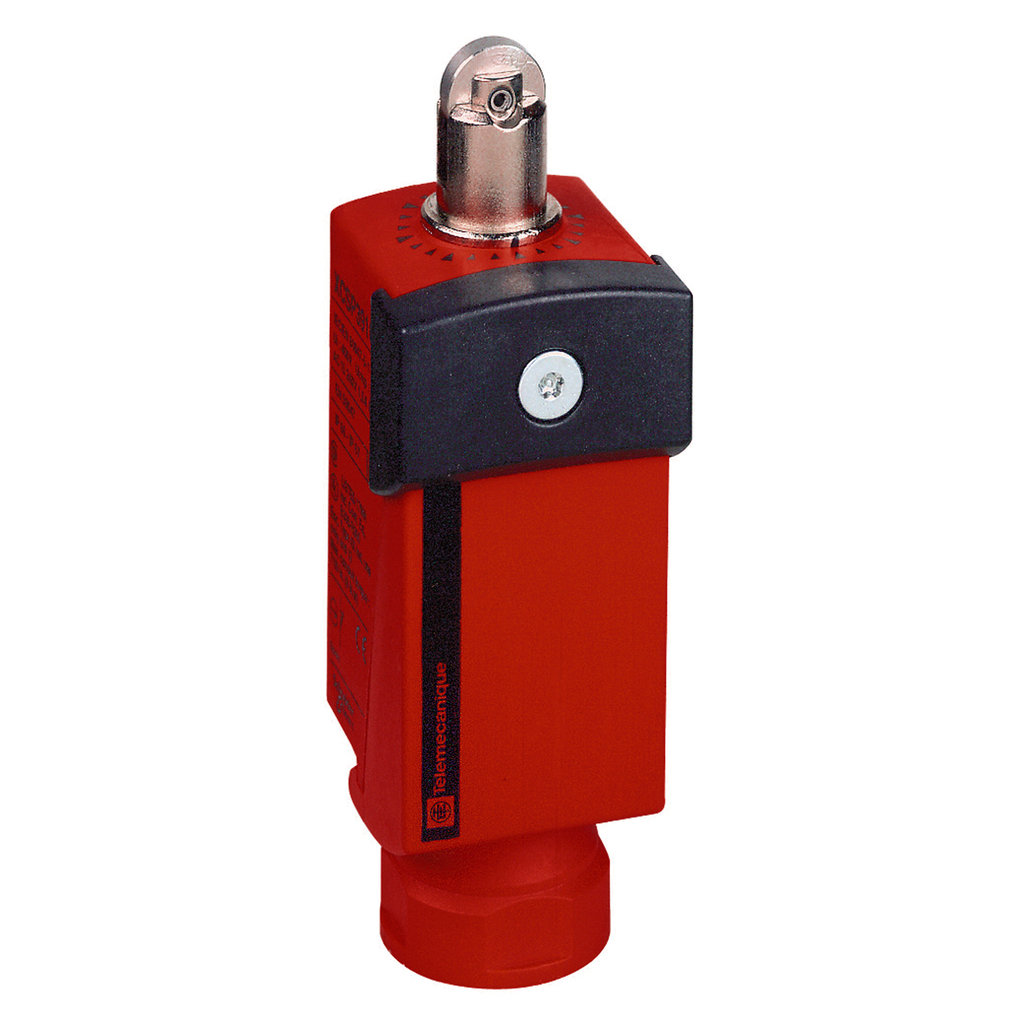

Product image for TES XCSP3902P20 Safety limit switch, TES Safety switches XCS, plastic, roller plunger, 2NC+1 NO, 1entry tapped M20x1.5
Image thumbnail 0
Image thumbnail 1
Email

TES XCSP3902P20 Safety limit switch, TES Safety switches XCS, plastic, roller plunger, 2NC+1 NO, 1entry tapped M20x1.5

Manufacturer: TES Electric | Catalog # XCSP3902P20 | Cooper Electric Part # 1586023
$65.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This XCSP Compact Safety Limit Switch has a steel roller plunger, a plastic body with Zamak head and a M20 cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK04 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Technical Information

Action
BY 30A CAM,SNAP ACTION
Actuator
STEEL ROLLER PLUNGER
Amperage
6 Amp
Applications
PLUNGER HEAD
Body Material
Plastic
Contact Configuration
1 NC + 1 NC + 1 NO
Enclosure
PLASTIC
Enclosure Material
Plastic
Material
Plastic
Net Weight
0.255 kg
Number of Poles
3 Pole
Operating Temperature
-25-70 Adegrees C
Size
100-100 MM,34 MM,35 MM
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
TERMINAL
Type
PLUNGER HEAD,SAFETY LIMIT SWITCH

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCSP

General Product Info

12-Digit UPC
891102390102
GTiN
03389110239010
Product UPC
38911023901
Weight
0.56 lb

Dimensions

Depth
35 mm
Height
100-100 mm
Warranty Length
18 mth
Width
34 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
