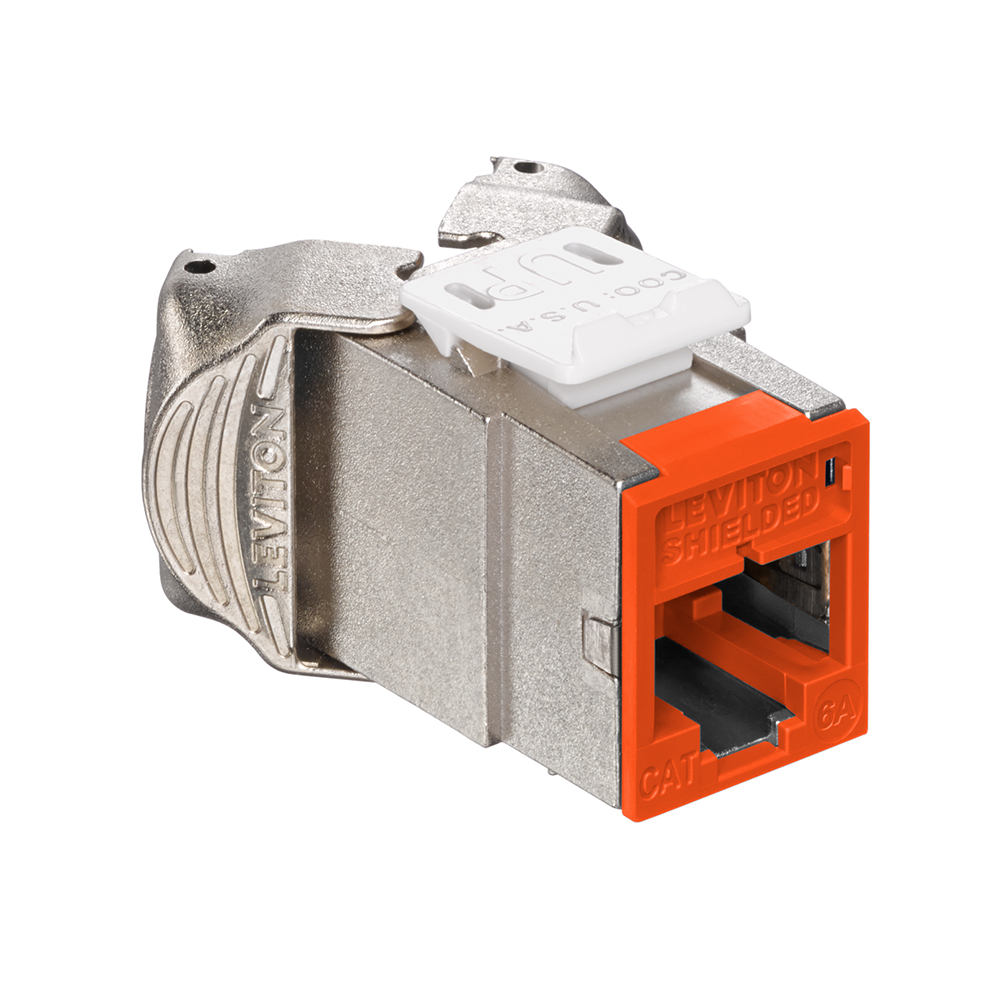

Product image for LEV 6ASJK-RO6 ATLAS-X1 CAT 6A SHLD
Email

LEV 6ASJK-RO6 ATLAS-X1 CAT 6A SHLD

Manufacturer: Leviton Mfg Co | Catalog # 6ASJK-RO6 | Cooper Electric Part # 1584409
$31.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
The ATLAS-X1 Category 6A Component-Rated Shielded QUICKPORT Jack supports 10GBASE-T networks. The shielded jack provides superior alien crosstalk (AXT) suppression and protects critical data from potential EMI/RFI (electromagnetic interference/radio frequency interference). The jack is part of a complete ATLAS-X1 Cat 6A shielded system ideal for government, healthcare, manufacturing, transportation, gaming, and other environments where EMI/RFI and/or security may be a concern

Technical Information

Applications
For Government, Healthcare, Manufacturing, Transportation, Gaming, and other Environments
Cable Size
26-22 AWG
Cable Type
Category 6A
Category Type
Cat 6A
Material
Zinc Die Cast
Mounting Type
Surface
Standard
CULus Listed
Temperature Rating
-10 to 60 degrees C
Type
Shielding

Manufacturer Information

Brand
Leviton
Sub Brand
Atlas-X1™, QuickPort

General Product Info

12-Digit UPC
078477696361
Color
Orange
Environmental Conditions
-40 to 70 C Storage Temperature
GTiN
00078477696361
Product UPC
07847769636
Used With
10GBASE-T Networks

Certifications and Compliance

Country of Origin
USA
Features
  • Independently tested and guaranteed to exceed all component, permanent link, and channel margins
  • Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity
  • For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
  • Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression
  • Unique design supports tool-free termination/re-termination and requires no specialized termination tool
  • Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
  • Terminates from 26- to 22 AWG solid or stranded conductors for use on various cable types
  • Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
  • Available in 13 ANSI/TIA-606-C compatible colors
  • Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face) for easy identification and tracking of data, voice, or other functions
  • Jack with internal shutter protects against dust and debris
  • Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications
  • Tine geometry prevents arcing damage where plug and jack make contact
  • Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
  • ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
Patents
  • CA2699970
  • EP2191541
  • MX289317
  • US7824231
  • USD752590
  • USD818469
  • USD848430
  • USD901509
