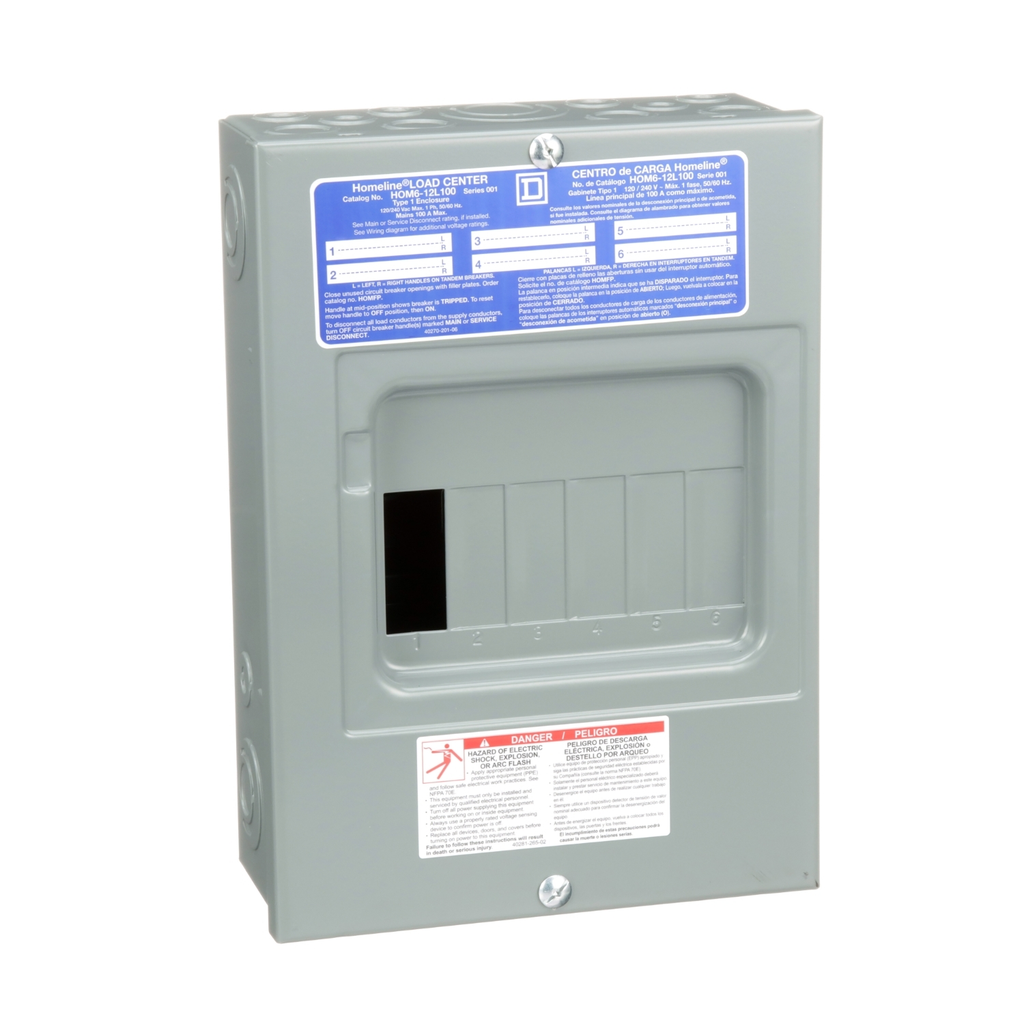

SQD HOM612L100SCP Load center, Home

Manufacturer: Square-D / Schneider | Catalog # HOM612L100SCP | Cooper Electric Part # 1583388
$78.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
The Square D® Homeline® Load Centers and Circuit Breakers, HOM612L100SCP are part of a comprehensive family of circuit protection solutions. Plug on neutral load main breakers centers with lug connections. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems. This Surelogic SPD device is a three phase, 4-wire grounded wye system that has a peak surge current rating of 160 kA. This device has operational voltage of 208Y/120 Vac and has a short circuit rating of 200 kA. This SPD is in a NEMA 2 enclosure that is 308.9 tall, 341.9 mm wide and 142.1 mm deep.

Technical Information

Amperage
100 Amp
Cover Type
Combination Flush/surface Cover
Current
100 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
10 kAIC
Line Rated Current
100 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
1
Number of Circuits
12
Number of Phases
1 Phase
Number of Spaces
6
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Surface Finish
Baked Enamel Gray
TC Connection
AWG 8...AWG 1 copper or aluminium
Type
Load Center
Voltage
120/240 Volt
Wire Size
AWG 8...AWG 1 copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
047569071232
Finish
Gray
GTiN
00047569071232
Product UPC
04756907123

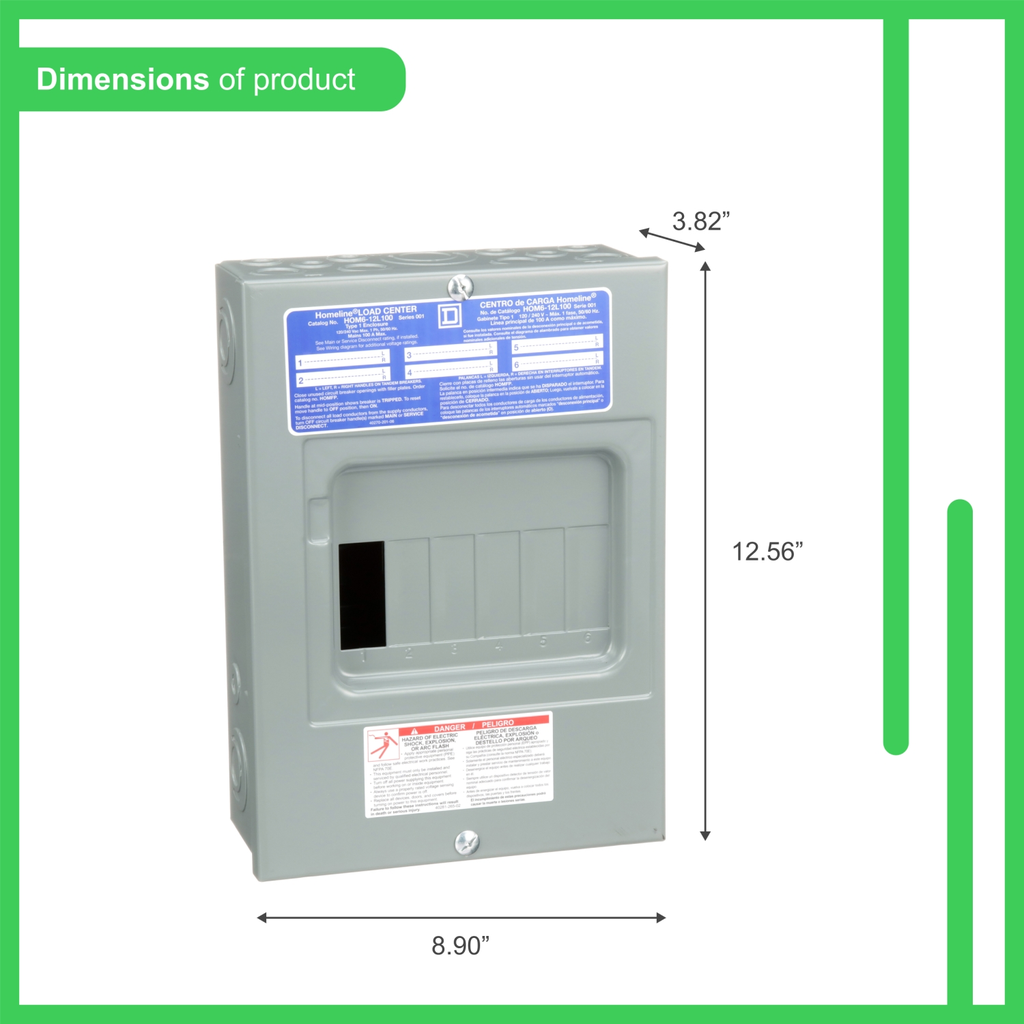

Dimensions

Depth
97 mm
Height
319 mm
Length
3.82 Inch
Width
226 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E-6294
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HOM120CP
  • HOM1RK
  • HOM2175SB
  • LK100ANCP
  • PK7GTA
  • HOM230CP
  • HOM70ANCP
  • HOM115CP
  • HOM4RK2LA
  • HOM240CP
  • HOM1RKCP
  • HOM250CP
